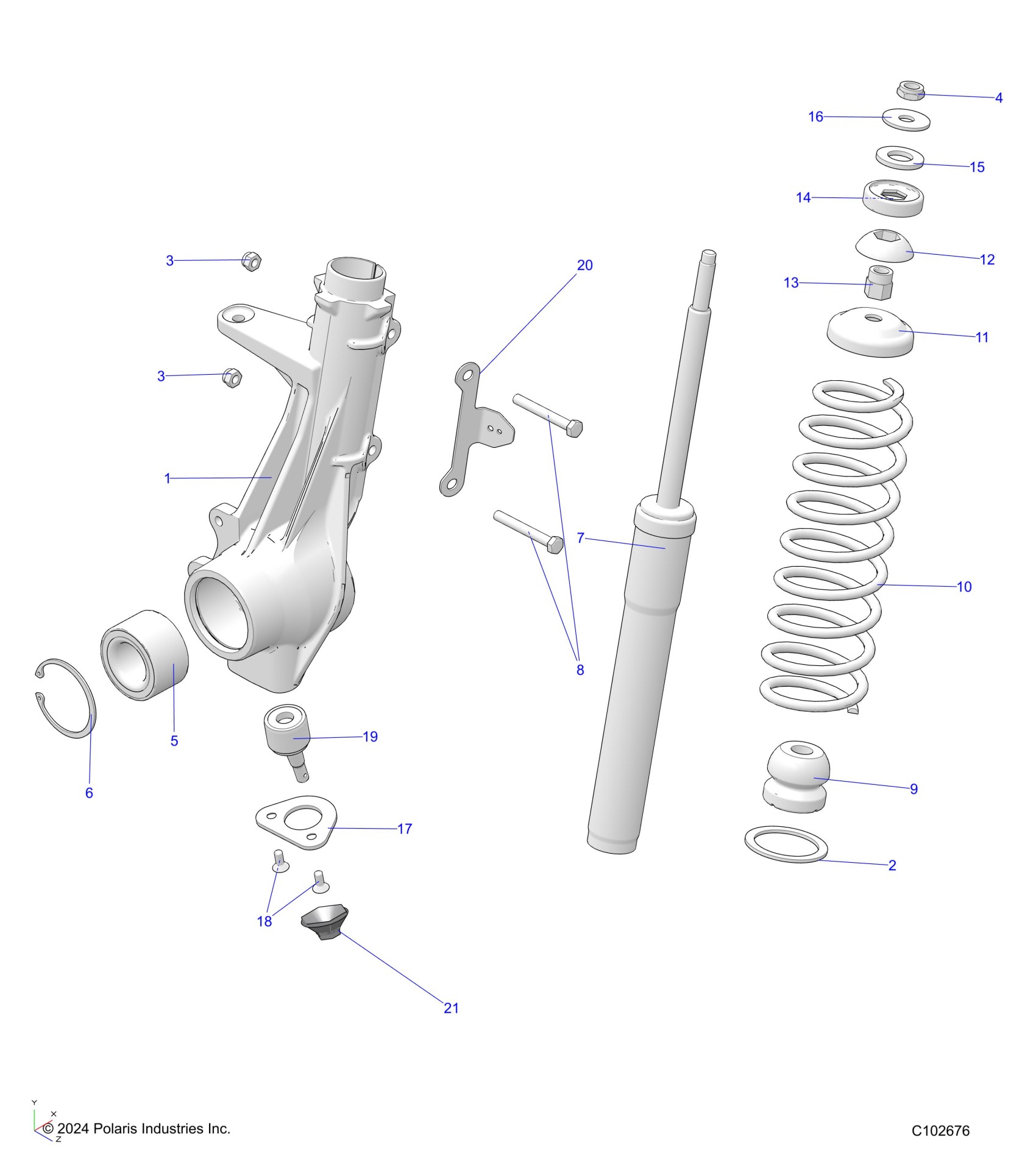

Polaris SPORTSMAN TOURING 570 (R01) - A26SDA57A7 SUSPENSION, FRONT STRUT - A26SDA57A7 (C102676) Diagram

SUPPORT-HUBSTRUT,LH,MACH

5135139

$226.65

SUPPORT-HUBSTRUT,RH,MACH

5135140

$257.76

WASHER-2.06X2.62X.105-Y

5211115

$3.99

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

BEARING-WHEEL, 35X64X37MM

3514634

$39.99

BEARING-WHEEL,35X64X37MM HD [OPTIONAL]

3515088

$63.99

RING-RETAINING,2.500 INTERNAL

7710507

$2.39

STRUT-FRONT,18X30MM,184.7MM LT

7041762

$123.99

SCR-HXFL-M8X1.25X60 10.9 ZFB

7521332-60

$3.73

BUMPER-MCU,17.8MM ID

5412665

$6.39

SPRING, COMPRESSION, MATTE BLACK

7043247-458

$83.99

RETAINER-SPRING,STRUT

5243364

$19.99

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

SPACER-1/2-20,STRUT

5132062

$19.99

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

SPACER-RUBBER

5810291

$3.99

WSHR-.500X1.50-12GA-Y

7555749

$1.49

BRACKET-BALL JOINT

5211121

$31.99

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

BALL-JOINT,3/8-24,STRUT

7061306

$27.99

BRKT,STRUT,BRAKE SUPRT,BLK

5272809-329

$14.39

BOOT-BALLJOINT,GREASELESS,STRT

5418091

$4.79
