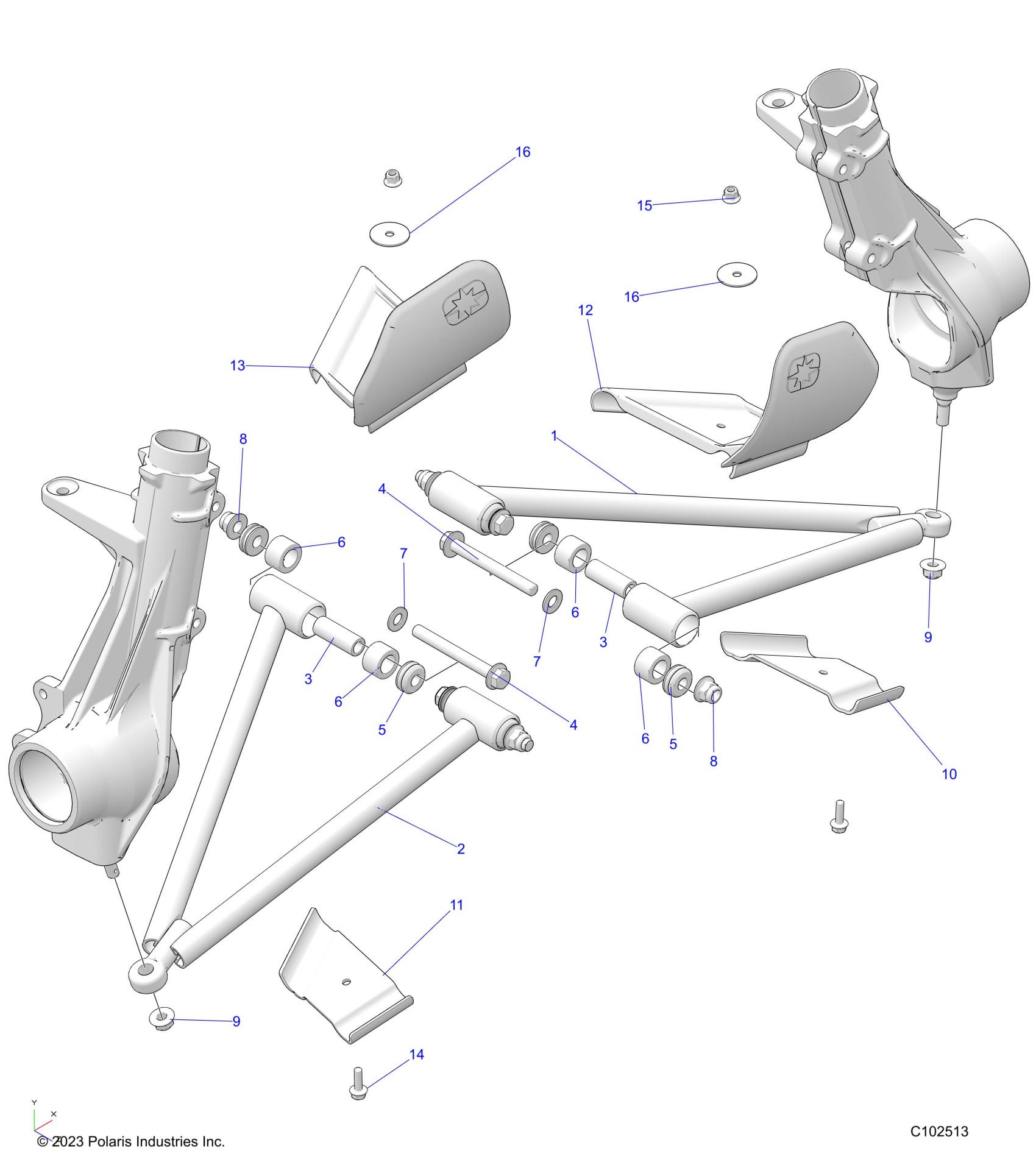

Polaris SPORTSMAN TOURING 570 (R01) - A26SDA57A7 SUSPENSION, A-ARM and STRUT MOUNTING - A26SDA57A7 (C102513) Diagram

WELD-A-FRAME,LH,M.BLK

1544005-458

$95.99

WELD-A-FRAME,RH,M.BLK

1544006-458

$95.99

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

SCR-HXFL-M10X1.5X90 10.9 ZPB

7521333-90

$1.59

SCR-HXFL-M10X1.5X90 10.9 ZPB

7521333-90

$1.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

WSHR-FLAT-M10X2.0 ZTB

7557235

$3.19

WSHR-FLAT-M10X2.0 ZTB

7557235

$3.19

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

BRKT-CV SHIELD, LH,STRUT

5273409

$27.99

BRKT-CV SHIELD, RH,STRUT

5273410

$27.99

SHIELD-CV, FRONT,LH,STRUT,BLK

5465275-070

$23.99

SHIELD-CV, FRONT,RH,STRUT,BLK

5465276-070

$23.99

SCR-HXFL-M6X1.0X25 10.9 ZFB

7521331-25

$1.59

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

WASHER-.270X1.25X.060,FL-Y

7558221

$2.39

WASHER-.270X1.25X.060,FL-Y

7558221

$2.39
