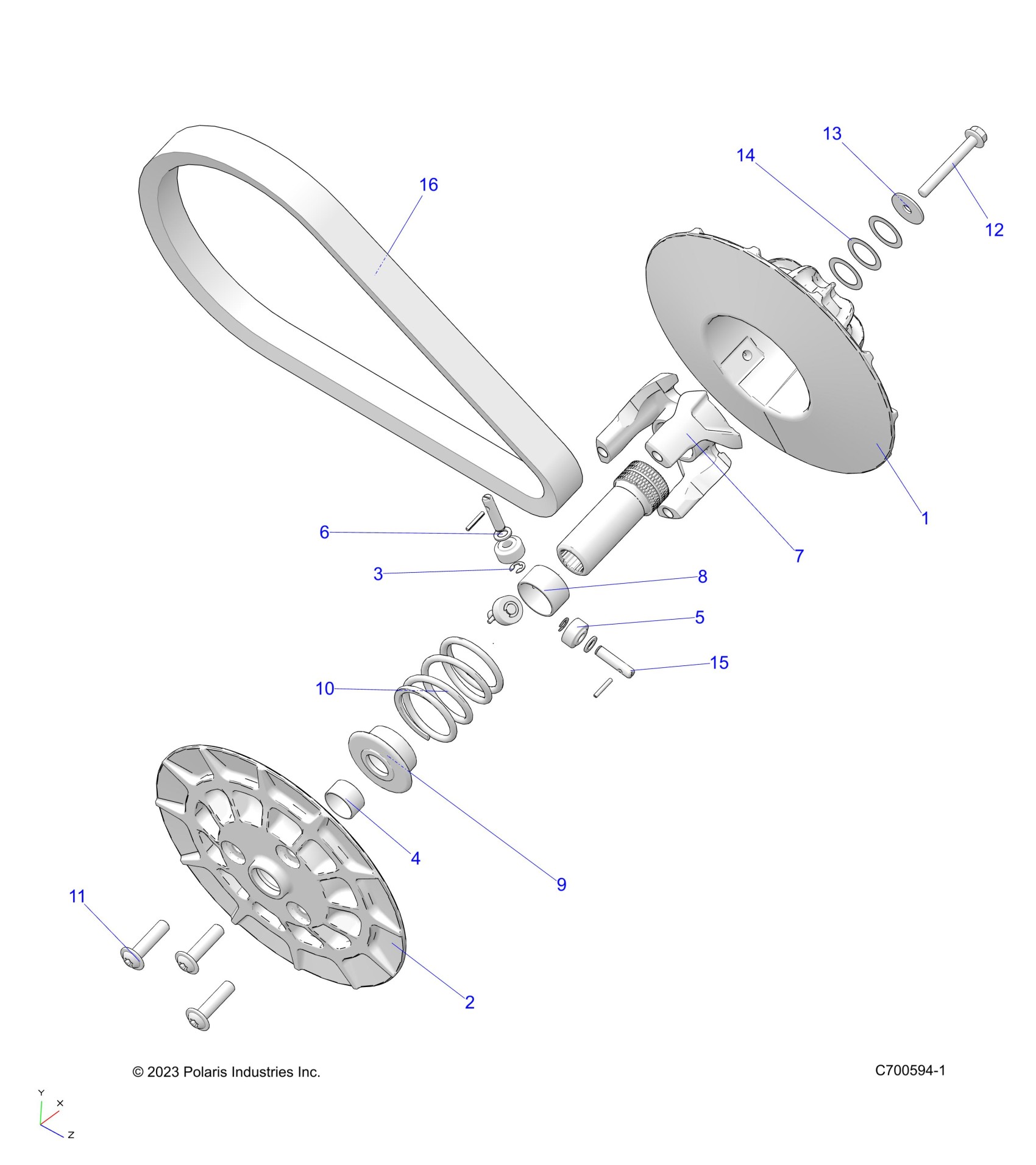

Polaris SPORTSMAN TOURING 570 (R01) - A26SDA57A7 DRIVE TRAIN, SECONDARY CLUTCH - A26SDA57A7 (C700594) Diagram

ASM-DRVN,STATIONARY,P190X MU [INCL. 3,5,6,15]

1323824

$307.99

ASM-DRIVEN,MOVEABLE,P190X,CS [INCL. 2,7-11]

1336969

$398.30

ASM-MOVABLE SHEAVE,P190X,CS [INCL. 4]

1323799

$107.99

E-CLIP,M6, DIN 6799

7710466

$3.19

BEARING-MU,25X15

3515176

$23.99

ROLLER-8X22X11.25,TORLON

5455537

$39.59

WSHR-8.4X14 .0X1.6

7556211

$4.79

ASM-HELIX,P190X,40-56P/70BA MU

1336970

$163.99

BEARING-MU,32X36X20

3515162

$6.39

CUP-DRIVEN SPRING,P190X

5633950

$27.99

SPRING-DRIVEN,120-230,NHS

7045854

$47.99

SCR-TXFLBH-M10X1.25X40 10.9SPC

7520698

$4.79

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

WSHR-8.4X30. 0X2.0 ZPB

7556219

$6.39

SHIM-RING,23.25X32.25X0.5

7557060

$2.39

PIN-DRIVEN,ROLLER,8MM [TO 11/17/2025]

5141086

Unavailable

PIN-DRIVEN,ROLLER,8MM [FRM 11/17/2025]

5145858

$3.99

BELT-DRIVE,P190X,10.05

3211229

$79.99

BELT-DRIVE,EBS,10.05CD,HDY [HD OPTION]

3212360

Unavailable
