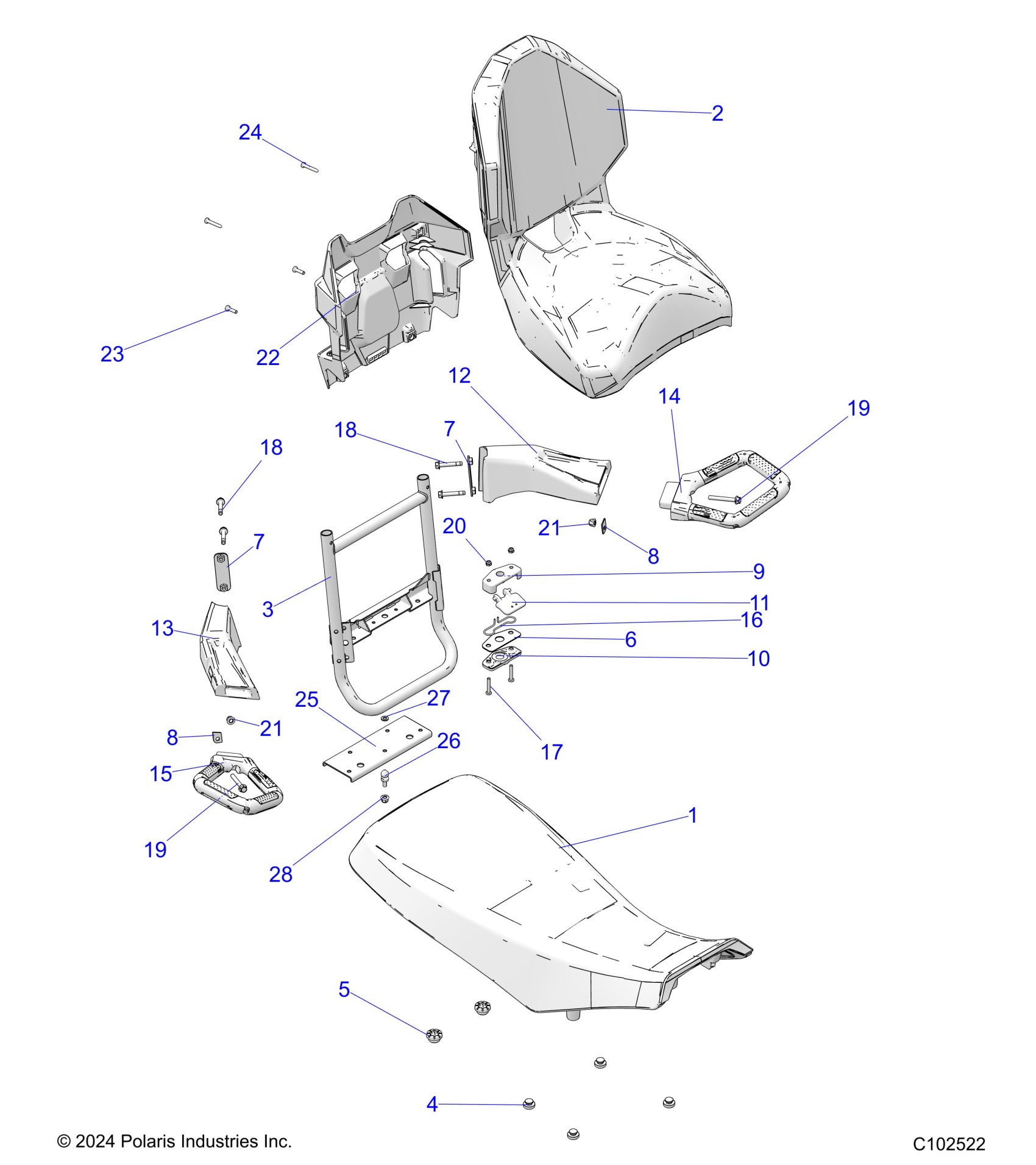

Polaris SPORTSMAN TOURING 570 (R01) - A26SDA57A7 BODY, SEAT - A26SDA57A7 (C102522) Diagram

#

Description
Price

1

ASM-SEAT,570 TRAIL-TOUR,BLK [INCL. COVER & 4]

2693672

$409.49

2

ASM-SEAT PASS,T-TOUR,BLACK [INCL. COVER & 2]

2692476-VBA

$272.79

3

WELD-SEAT BACK,SUPRT,TTRG,M.BK

1027503-458

$171.99

4

BUMPER-RUBBER

5412067

$3.99

5

GROMMET-SEAT LATCH

5418614

$3.19

6

PLATE-LATCH,SEAT

5258647

$6.39

7

PLATE-HANDHOLD,E.COAT

5272825-329

$8.79

7

PLATE-HANDHOLD,E.COAT

5272825-329

$8.79

8

BRKT-PLATE GRIP MNT,BLK

5273117-329

$3.99

8

BRKT-PLATE GRIP MNT,BLK

5273117-329

$3.99

9

PLATE-TOP, SEAT BASE LATCH

5437119

$6.46

10

CAP-LATCH,SEAT

5437120

$7.99

11

HANDLE-SEAT BASE LATCH

5437121

$4.84

12

HANDHOLD-ARM,LH

5459263

$67.99

13

HANDHOLD-ARM,RH

5459264

$67.99

14

HANDHOLD-GRIP,LH

5459265

$55.99

15

HANDHOLD-GRIP,RH

5459266

$55.99

16

SPRING-LATCH,SEAT

7082653

$33.43

17

SCR-1/4-20X1 1/2 PH/TRX-GR5-Y

7518264

$3.99

18

SCR-HXFL-M8X1.25X50 8.8 ZODP30

7519077

$3.99

18

SCR-HXFL-M8X1.25X50 8.8 ZODP30

7519077

$3.99

19

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

$5.59

19

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

$5.59

20

NUT-1/4-20-(NYLOK)-Y

7542122

$1.49

21

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

21

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

22

COVER-SEAT BACK,HDPE

5459195

$43.99

23

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

24

SCR-TXPH-#14X1.75 HI/LO RIE

7519150

$3.99

25

BRKT-SEAT LATCH PIN,BLK

5276078-458

$19.99

26

PLUNGER-LATCH,LONG,10MM

5145588

$11.99

27

WASHER-8.4X16.0X1.6 SPC

7556305

$1.49

28

NUT-HEX-M10X1.5 10 ZB3 NYL

7547746

$2.39
