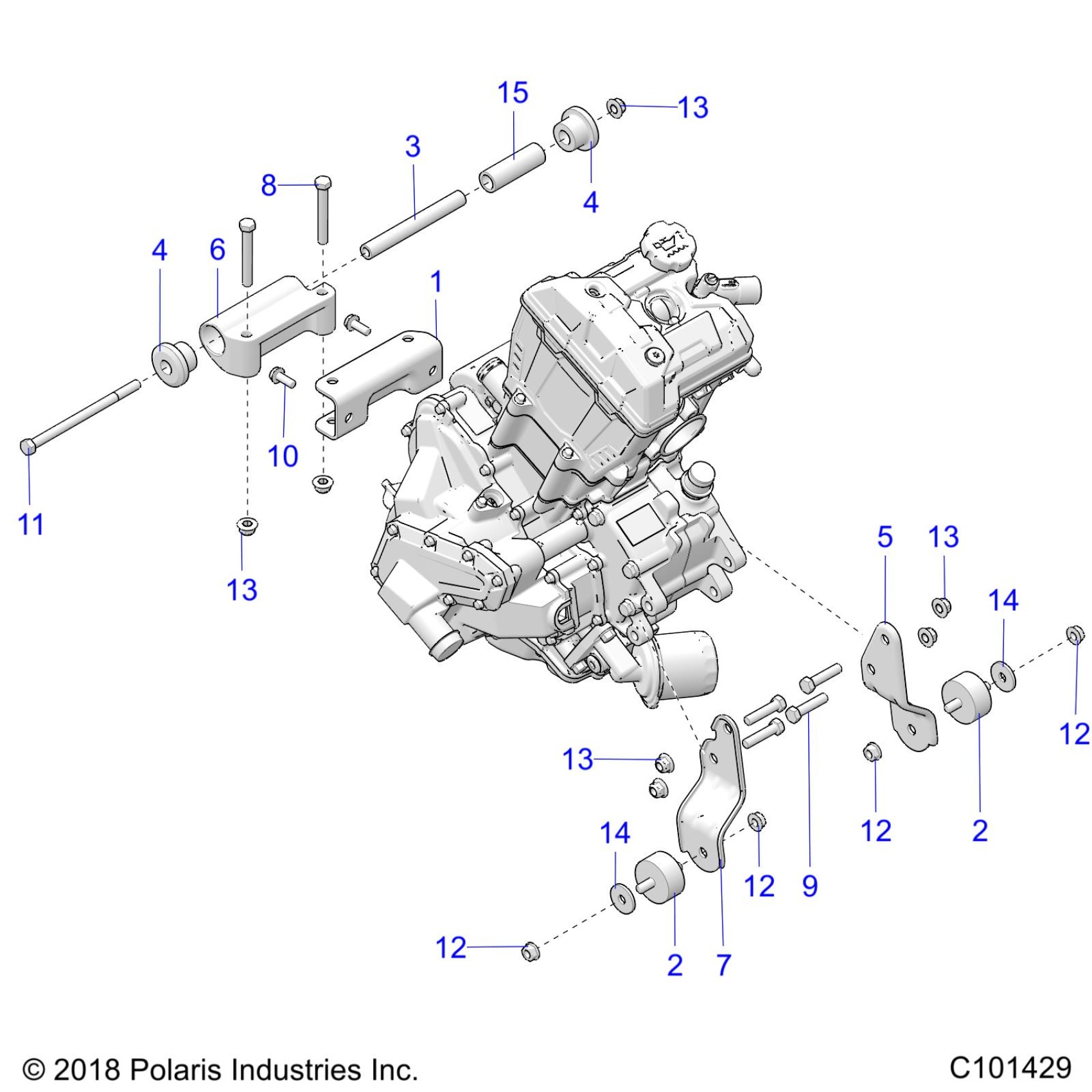

Polaris SPORTSMAN TOURING 570 (R01) - A23SJE57AX ENGINE, MOUNTING & LONG BLOCK - A23SJE57AX (C101429) Diagram

K-LONG BLOCK ATV 570 [NOTE: THE LONG BLOCK ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND OIL PUMP.

2207379

$4,162.39

MOUNT, ENGINE, REAR

5256926

$27.99

ISOLATOR-3/8-24M/M,60DURO

3024012

$39.99

ISOLATOR-3/8-24M/M,60DURO

3024012

$39.99

TUBE, ISOLATOR, REAR

5337887

$13.59

ISOLATOR-RUBBER,40D,SILICONE

5415404

$4.79

ISOLATOR-RUBBER,40D,SILICONE

5415404

$4.79

MOUNT, ENGINE, FRONT, LH

5259038

$14.39

MOUNT-ENGINE,REAR (CAST)

5634600

$71.99

MOUNT, ENGINE, FRONT, RH

5259039

$14.39

SCR-3/8-24X2 3/4HX HD CP GR5-Y

7515417

$4.79

BOLT(10)

7515528

$8.79

Bolt, Hex, Flange

7518364

$1.59

SCREW, 3/87547423

7518481

$8.79

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT, FLANGE, LOCK

7547108

$4.79

NUT, FLANGE, LOCK

7547108

$4.79

NUT, FLANGE, LOCK

7547108

$4.79

NUT, FLANGE, LOCK

7547108

$4.79

Washer, Flat

7555761

$2.39

Washer, Flat

7555761

$2.39

HOSE, ENGINE MOUNT

5415442

$3.99
