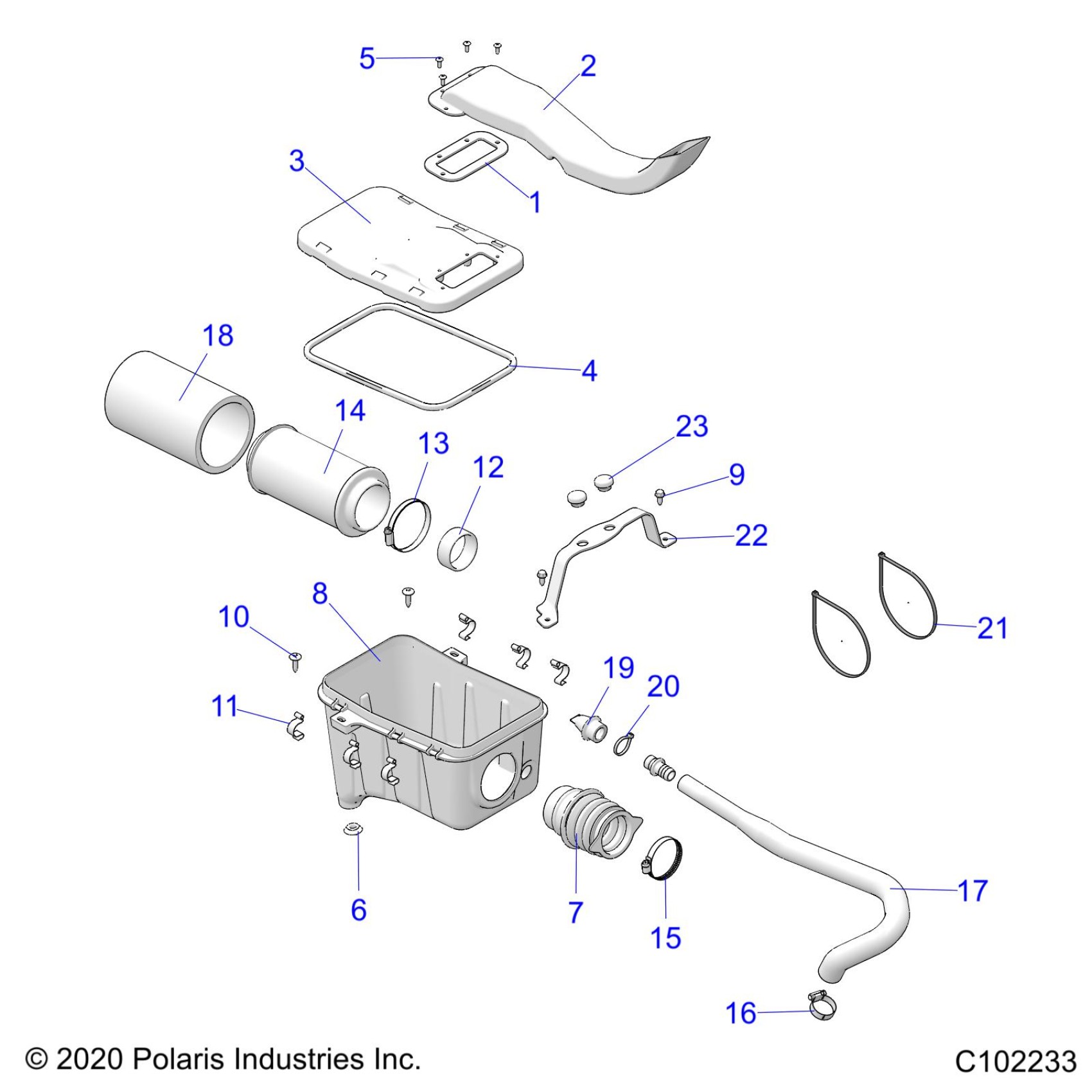

Polaris SPORTSMAN TOURING 570 (R01) - A23SJE57AX ENGINE, AIR INTAKE SYSTEM - A23SJE57AX (C102233) Diagram

#

Description
Price

1

Gasket, Intake

5411422

$6.63

2

DUCT-AIR INLET,TOUR

5450580

$30.39

3

COVER, AIR BOX

5450388

Unavailable

4

SEAL, AIRBOX COVER

5813949

$27.99

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

PLUG-COMPARTMENT

5418084

$3.73

7

BOOT, INTAKE

5414638

$23.99

8

BOX, AIR INTAKE

5450387

$127.99

9

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

10

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59

11

CLIP-AIR BOX

5242044

$9.59

12

Sleeve, Carburetor, Inner

5433847

$13.59

13

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

14

FILTER, AIR INTAKE

7082101

Unavailable

14

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

15

CLAMP, BAND, NARROW

7080413

$3.19

16

CLAMP-HOSE,13/16"-1 1/2"

7081174

$7.19

17

HOSE, BREATHER, FORMED

5415276

$31.99

18

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

19

VALVE-BREATHER W/.53" BARB ID

7052577

$23.99

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

22

BRKT-SUPPORT,INTAKE DUCT,BLK

5264052-329

$27.99

23

BUMPER-RUBBER

5412067

$3.99
