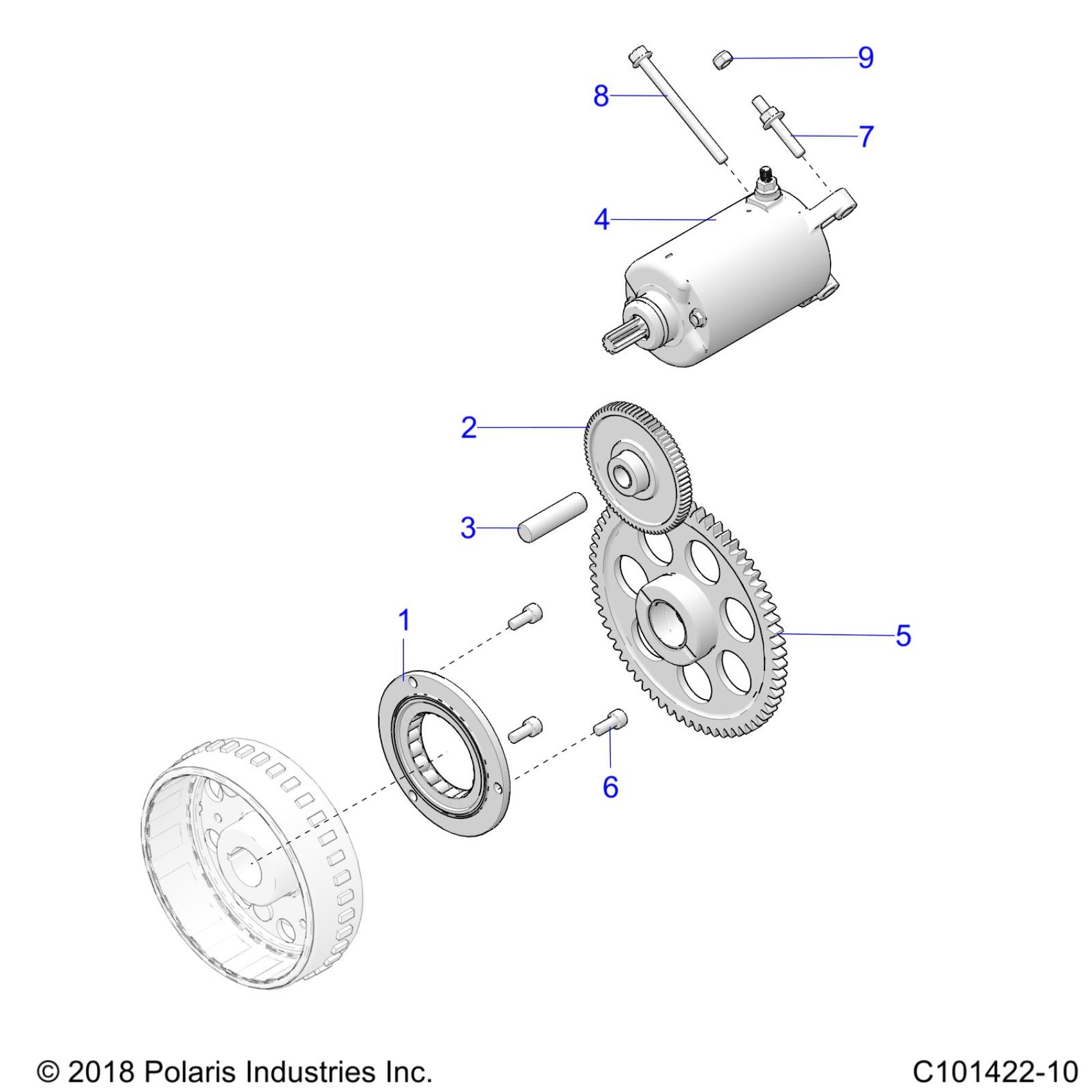

Polaris SPORTSMAN TOURING 570 (R01) - A21SDA57A5 ENGINE, STARTER DRIVE - A21SDA57A5 (C101422-10) Diagram

#

Description

Price

1

ASM-SPRAG CLUTCH,HUB,STARTER

1205604

$223.24

2

ASM-GEAR,STARTER

1204683

$178.08

3

PIN, SOLID, STARTER TORQUE LIMIT GEAR [TO 11/1/2020]

3022500

$28.32

3

PIN-SOLID,STARTER TQ LIMITGEAR [FROM 11/1/2020]

3023967

$28.32

4

STARTER,1-CYL

4014909

$284.99

5

GEAR-FREEWHEEL,1WAY CLUTCH

6230561

$223.24

6

SCREW-M6X1.0X14.0,HX/SOC/CP-Y/D

7517431

$5.56

7

STUD-DOUBLE,END,M6X1.0X25/10

7519237

$3.97

8

SCR-HXFL-M6X1.0X75 8.8

7520493

$9.49

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19
