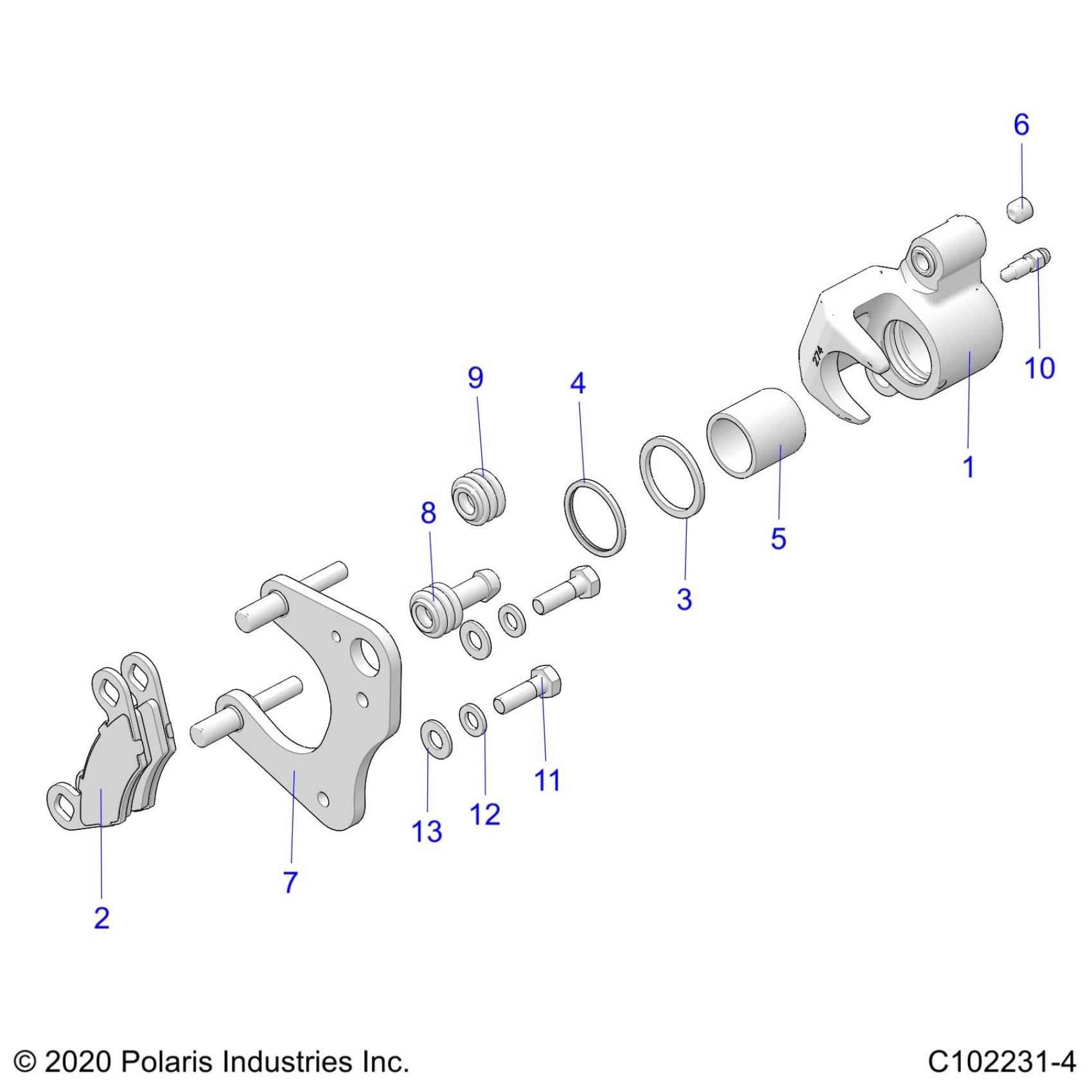

Polaris SPORTSMAN TOURING 570 (R01) - A21SDA57A5 BRAKES, FRONT CALIPER - A21SDA57A5 (C102231-4) Diagram

#

Description

Price

1

Asm., Caliper, Front, LH [INCL. 1-10]

1911540

$259.99

1

Asm., Caliper, Front, RH [INCL. 1-10]

1911541

$259.99

2

KIT-BRAKE PAD ASM [INCL. 2 SETS, 4 PADS]

2202412

$55.99

2

K-ASM, HD, PAD, BRK, S. BORE [OPTION][2 PADS PER KIT]

2208935

$63.99

3

SQUARE RING, MOLDED (.103 X .134)

5410780

$10.51

4

SQUARE RING-MOLDED (.094)

5410779

$10.51

5

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

6

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

7

ASM-CALIPER,MNT,FRONT,1.500

1910513

$51.99

8

BOOT-PIN BUSHING

5412505

$3.19

9

BOOT-PIN SEAL

5412506

$3.19

10

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

11

SCREW, CAP(10) [CALIPER MOUNTING]

7512365

$1.49

12

WASHER-5/16-SPRING LK-MED-Y [CALIPER MOUNTING]

7552901

$1.49

13

WASHER-.344X.688X.063 FL-Y [CALIPER MOUNTING]

7558402

$1.49
