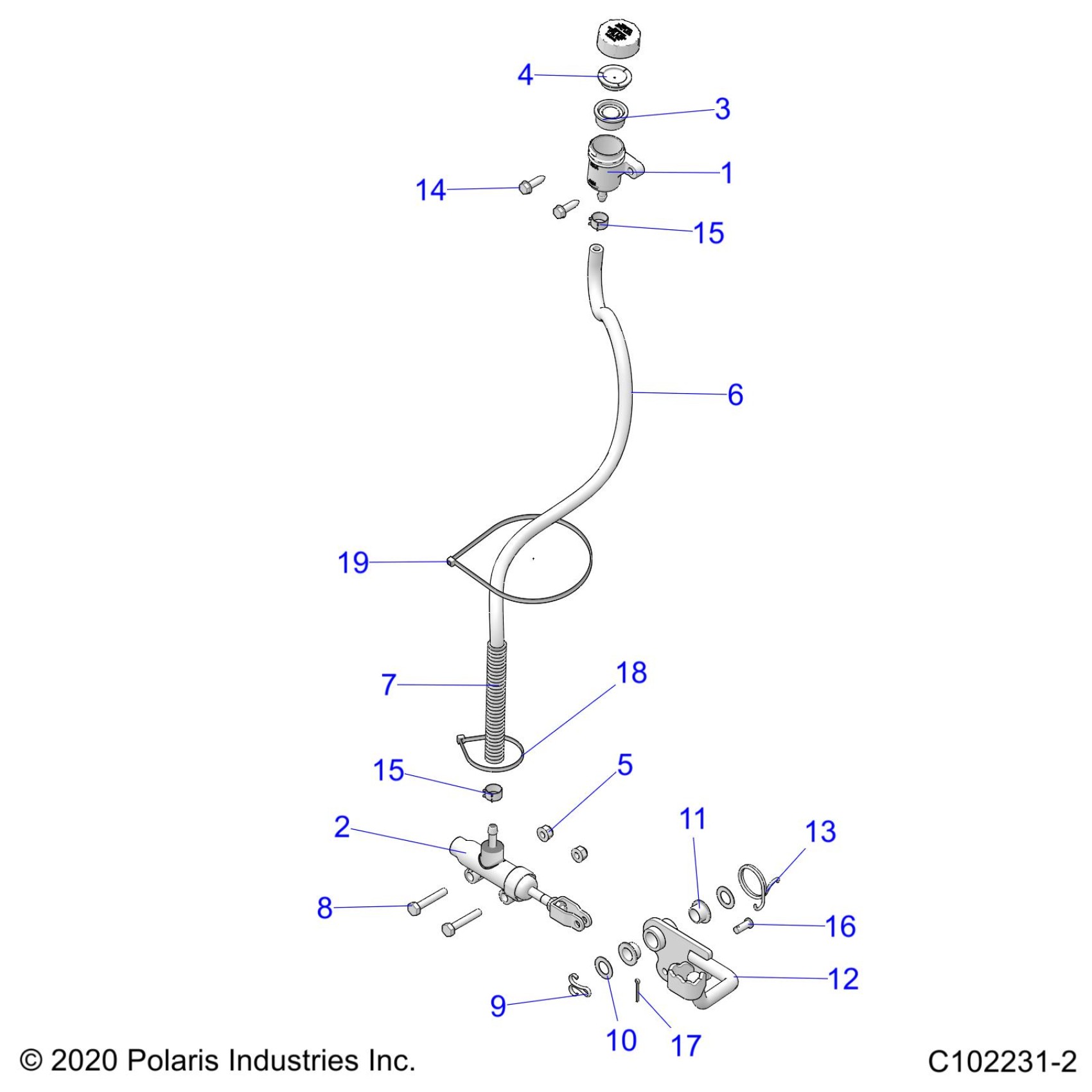

Polaris SPORTSMAN TOURING 570 (R01) - A21SDA57A5 BRAKES, BRAKE PEDAL and MASTER CYLINDER - A21SDA57A5 (C102231-2) Diagram

ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. CAP, 3,4]

1911224

$35.99

ASM., MASTER CYLINDER, BRAKE, FOOT [INCL. HOSE, CLAMPS]

1911688

Unavailable

DIAPHRAGM, RESERVOIR, BRAKE

5413262

$4.79

RING, RESERVOIR, BRAKE

5437041

$5.59

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

HOSE, RESERVOIR

1911267-660

Unavailable

TUBING-CONVOLUTED,.50 ID,13CM

8360052-13

Unavailable

SCR-HH-1/4-20X1.5 GR5 ZY3

7512126

$4.79

PIN-1/8X1-COTTER-Y

7661401

$1.49

WASHER-.510X.840X.031 Y

7555919

$4.99

BUSHING, PIVOT, PEDAL

5433189

$3.99

WELD-BRAKE,PEDAL,BLK

1911657-067

$83.99

SPRING-TORSION,BRAKE

7041750

$8.79

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

PIN-CLEVIS 1/4X5/8 - Z

7661830

$3.99

PIN-COTTER,5/64X3/4-Y

7661900

$3.19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
