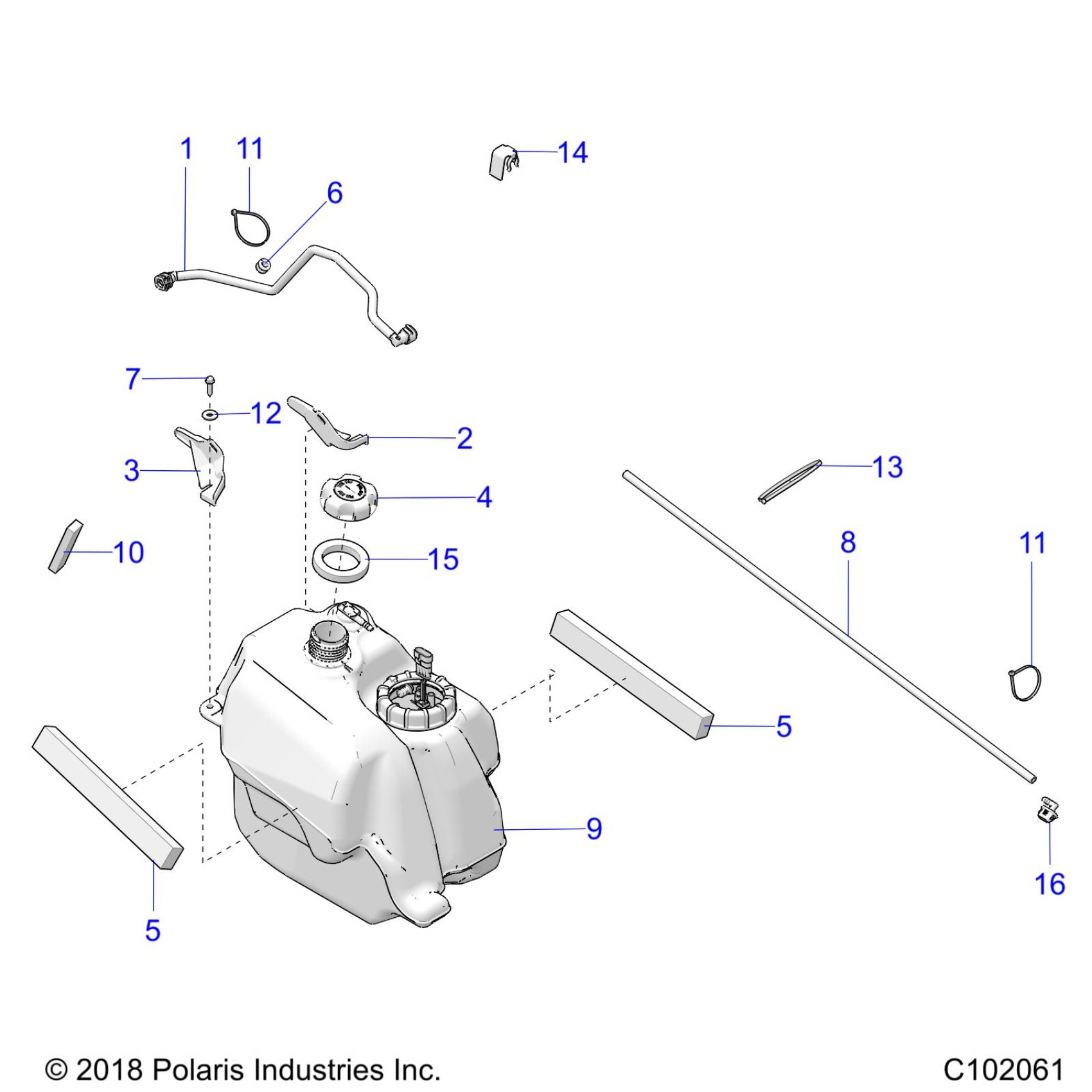

Polaris SPORTSMAN TOURING 570 PREMIUM (R05) - A22SJE57AX/BX FUEL SYSTEM, FUEL TANK ASM. - A22SJE57AX/BX (C102061) Diagram

ASM-FUEL LINE,HARD,TOUR [AX]

2521663

$37.59

ASM-FUEL LINE,HARD,TOUR [BX]

2521955

$59.99

BRACKET, SEAT BASE, CAB MOUNT, LH

5452276

$5.59

BRACKET, SEAT BASE, CAB MOUNT, RH

5452277

$5.59

CAP-GAS TANK

5439075

$23.99

FOAM-SEAL,1.5 X 12

5813255

$7.19

FOAM-SEAL,1.5 X 12

5813255

$7.19

GROMMET-SLIT,2"

5416475

$2.39

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$2.39

FUEL LINE-86 CENTIMETERS

8450040-86

Unavailable

FUEL PUMP,SERVICE KIT,ATV,TRG [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2208126

Unavailable

ASM-FUEL TANK,570,TRG [TO 1/15/2024]

2522072

$923.99

ASM-FUEL TANK,570,TRG [FRM 1/15/2024]

2522720

$923.99

Foam, Cover

5813265

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

WASHER-.327X.875X.090,FL-Y

7555960

$3.99

COVER-FUEL LINE CONNECTOR

5454451

$8.79

COVER-FUEL LINE CONNECTOR

5454451

$8.79

SEAL-FOAM,FUEL FILL NECK [BX]

5814816

Unavailable

FITTING-VENT LINE [BX]

5453465

$5.59
