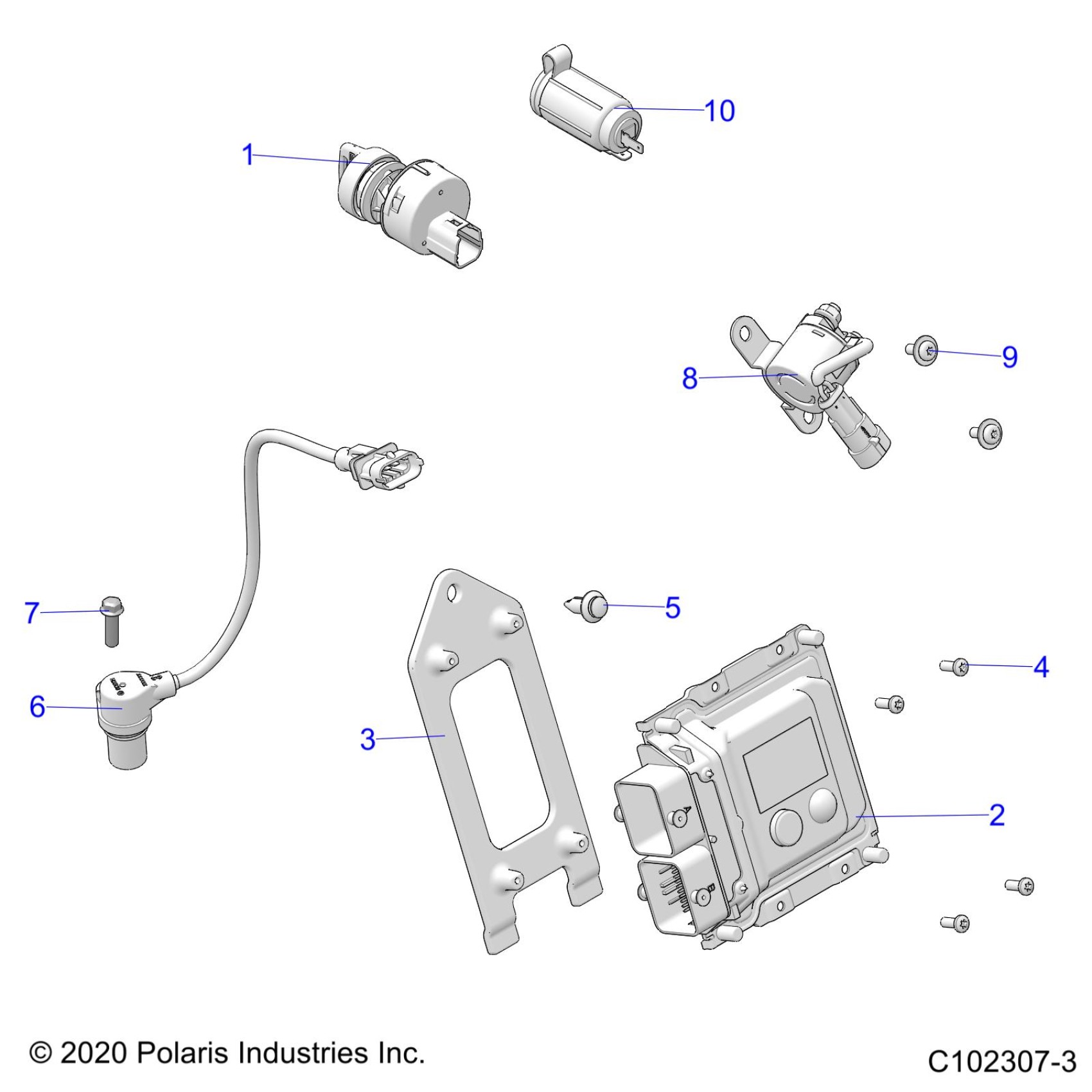

Polaris SPORTSMAN TOURING 570 PREMIUM (R03) - A21SJE57AX/BX ELECTRICAL, SWITCHES, SENSORS and ECM - A21SJE57AX/BX (C102307-3) Diagram

#

Description

Price

1

SWITCH, KEY, 3 POSITION, SEALED [INCL. NUT, COVER, and KEY]

4015033

Unavailable

1

KEY SWITCH KEY COVER

5433534

$12.35

1

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

2

ECU, BASE, M17 [AX]

4012838

$440.69

2

ECM-HARD,ME17,2CYL,250K [BX]

4014125

$694.99

3

MNT-ECM,REAR,BLK

5438708-070

$10.39

4

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

5

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

6

SENSOR, CRANK POSITION

2411719

$101.17

7

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

8

SOLENOID, STARTER,C1100,W/WASHER [FROM 3/15/2021]

4014471

Unavailable

8

SOENOID, STARTER, C1100 [TO 3/15/2021]

4012001

Unavailable

9

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

10

Receptacle, Pod Mount, 12 Volt

4010638

$24.27
