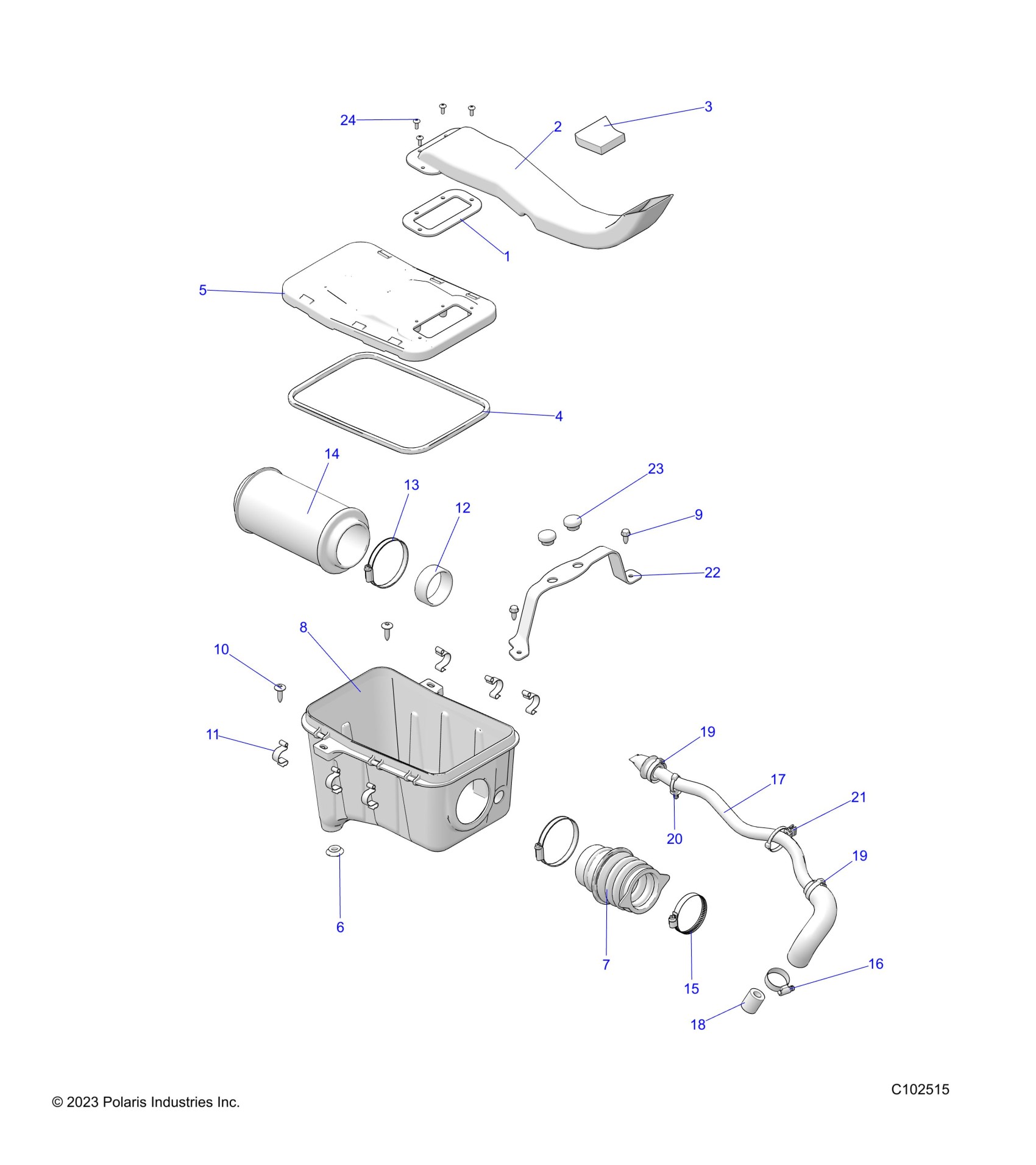

Polaris SPORTSMAN TOURING 570 PREM (R01) - A26SDZ57AB ENGINE, AIR INTAKE SYSTEM - A26SDZ57AB (C102515) Diagram

ASM-COVER/DUCT,TOUR [INCL 1-5]

1244766

$107.99

Gasket, Intake

5411422

$6.63

DUCT-AIR INLET,TOUR

5450580

$30.39

FOAM,INTAKE,STICK ON

5815089

$6.39

SEAL, AIRBOX COVER

5813949

$27.99

COVER-AIR BOX

5459622

$39.99

PLUG-COMPARTMENT

5418084

$3.73

BOOT, INTAKE

5414638

$23.99

BOX, AIR INTAKE

5450387

$127.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

CLIP-AIR BOX

5242044

$9.59

Sleeve, Carburetor, Inner

5433847

$13.59

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

FILTER-AIR INTAKE,HD

7083107

$27.99

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

CLAMP, BAND, NARROW

7080413

$3.19

CLAMP-HOSE,13/16"-1 1/2"

7081174

$7.19

ASM-CRANK BREATHER,ATV [INCL. HOSE, VALVE, & OETIKER CLAMPS][TO 10/2/2025]

2522621

$59.99

ASM-CRANK BREATHER,ATV [INCL. HOSE, VALVE, & OETIKER CLAMPS][TO 10/2/2025]

2523082

$59.99

BUSHING-BREATHER HOSE [TO 10/2/2025]

5418611

$7.19

CLAMP-HOSE,OETIKER,25.4-28.6

-------

Unavailable

CLAMP-HOSE,OETIKER,25.4-28.6

-------

Unavailable

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

BRKT-SUPPORT,INTAKE DUCT,BLK

5274388-329

$23.99

BUMPER-RUBBER

5412067

$3.99

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19
