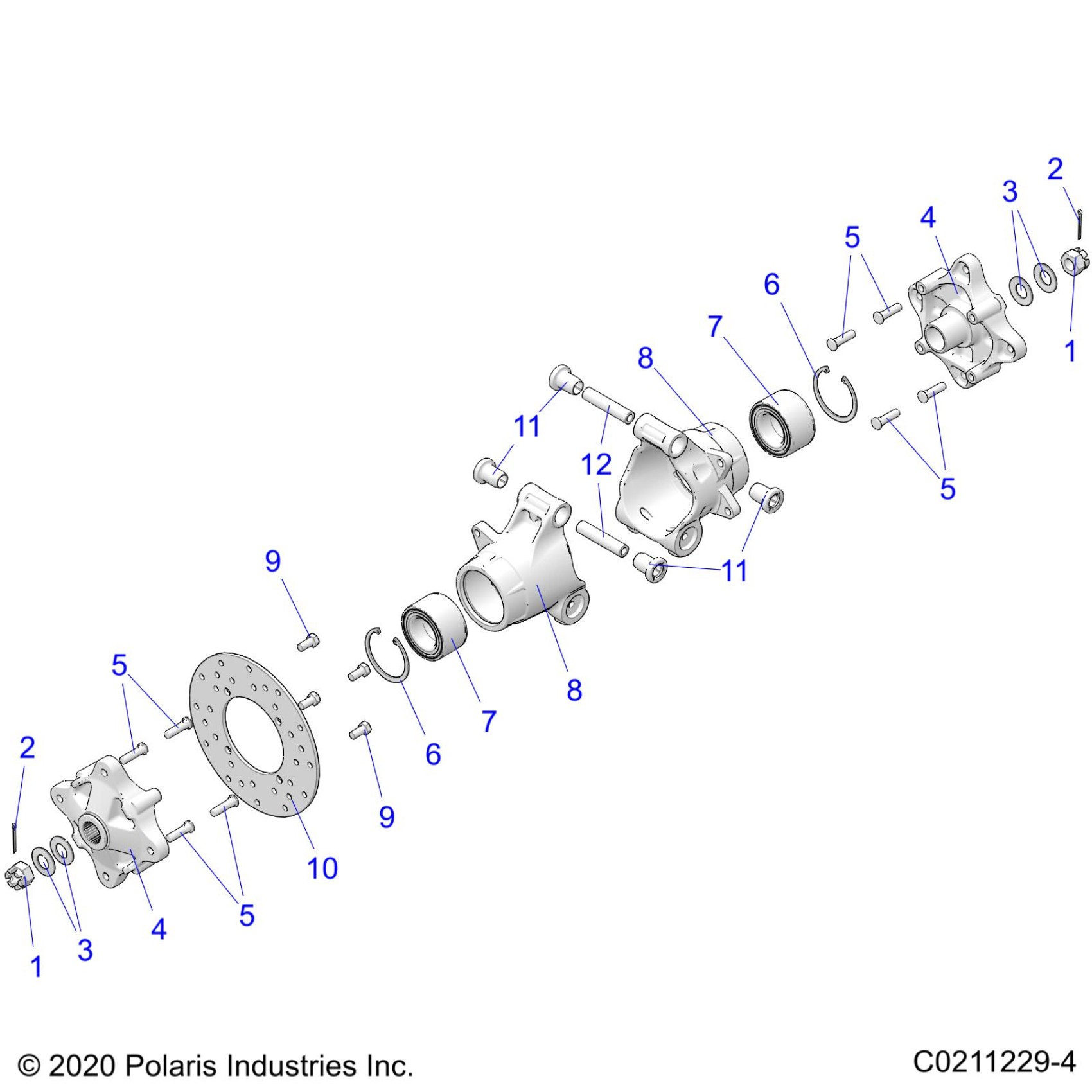

Polaris SPORTSMAN TOURING 570 EPS (R06) - A25SDA57A7/E57A4 SUSPENSION, REAR HUBS, CARRIER and BRAKE DISC - A25SDA57A7/E57A4 (C0211229-4) Diagram

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

HUB-WHEEL,REAR,MACH

5143629

$79.99

HUB-WHEEL,REAR,MACH

5143629

$79.99

STUD-3/8-24X1.38,PRESS FIT-Z

7518378

$1.59

STUD-3/8-24X1.38,PRESS FIT-Z

7518378

$1.59

STUD-3/8-24X1.38,PRESS FIT-Z

7518378

$1.59

STUD-3/8-24X1.38,PRESS FIT-Z

7518378

$1.59

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

BEARING-WHEEL,40X74X40MM

3514917

$39.99

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

BEARING-WHEEL,40X74X40MM

3514917

$39.99

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

CARRIER-BEARING,WHEEL,(MACH)

5135563

$71.99

CARRIER-BEARING,WHEEL,(MACH)

5135563

$71.99

SCR-HH-3/8-16X0.75 GR5 ZY3

7518903

$3.99

SCR-HH-3/8-16X0.75 GR5 ZY3

7518903

$3.99

DISC-BRAKE,REAR,8.625X.188

5248250

$75.99

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

Shaft, A-Arm., Short

5020826

$11.99
