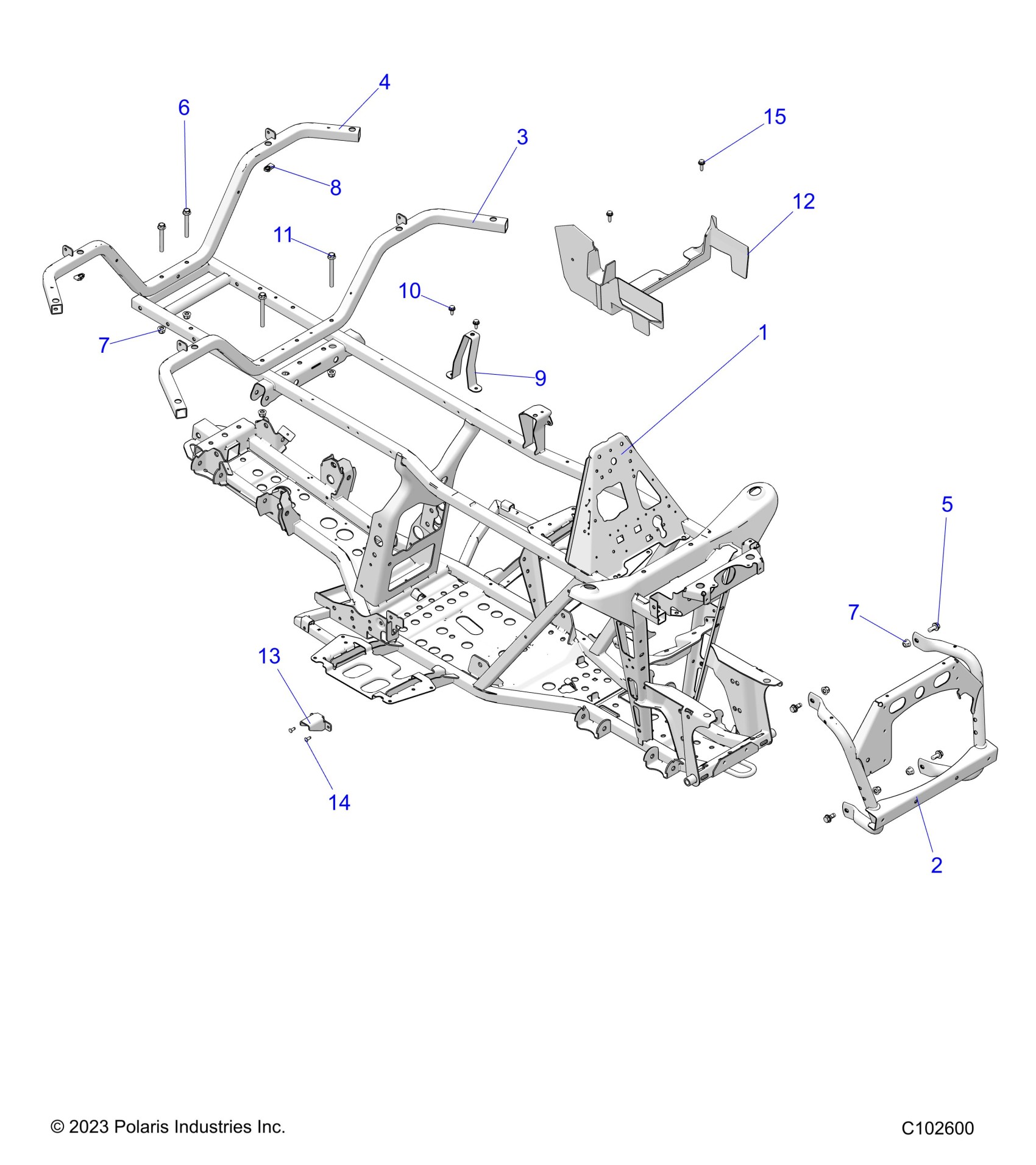

Polaris SPORTSMAN TOURING 570 EPS (R06) - A25SDA57A7/E57A4 CHASSIS, FRAME - A25SDA57A7/E57A4 (C102600) Diagram

TUBE-SUPPORT,RR,REAR RACK,BLK [FRM 4/8/2025]

5345375-458

Unavailable

WELD-MAIN FRAME,TRG,STRUT,M.BK

1027605-458

Unavailable

WELD-BUMPER SUPPORT,FRONT,MBLK

1028683-458

$139.99

WELD-SUPPORT,FRNT,RR,RACK,M.BK [TO 4/8/2025]

1026731-458

Unavailable

TUBE-SUPPORT,FRNT,RR RACK,BLK [FRM 4/8/2025]

5345284-458

$83.99

ASM-WELD-SPRT,RR,REAR,RACK,BLK [INCL. 4,5]

1026866-458

Unavailable

WELD-SUPPORT,RR,REAR RACK,BLK [TO 4/8/2025]

1026831-458

$79.99

SCR-HXFL-M8X1.25X20 10.9 ZFB

7521332-20

$3.73

SCR-HXFL-M8X1.25X65 10.9 ZFB

7521332-65

$1.64

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CLIP-"U",M6.0X1.0

7547366

$5.99

BRKT-SUPPORT,FUEL TANK,RH,M.BK

5274276-458

$27.99

BOLT,M6X1.0X15,HXFLG,TAP/T-OD [TO 4/10/2025]

7518513

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK [FRM 4/10/2025]

7518529

$1.49

SCR-HXFL-M8X1.25X80 8.8 ZOD

7519217

$1.59

COVER-CVT,SPLASH,SHLD,STR,BLK

5465255-070

$13.59

BRKT-BRK,SWITCH,PROTECTOR,BLK

5274263-458

$12.79

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
