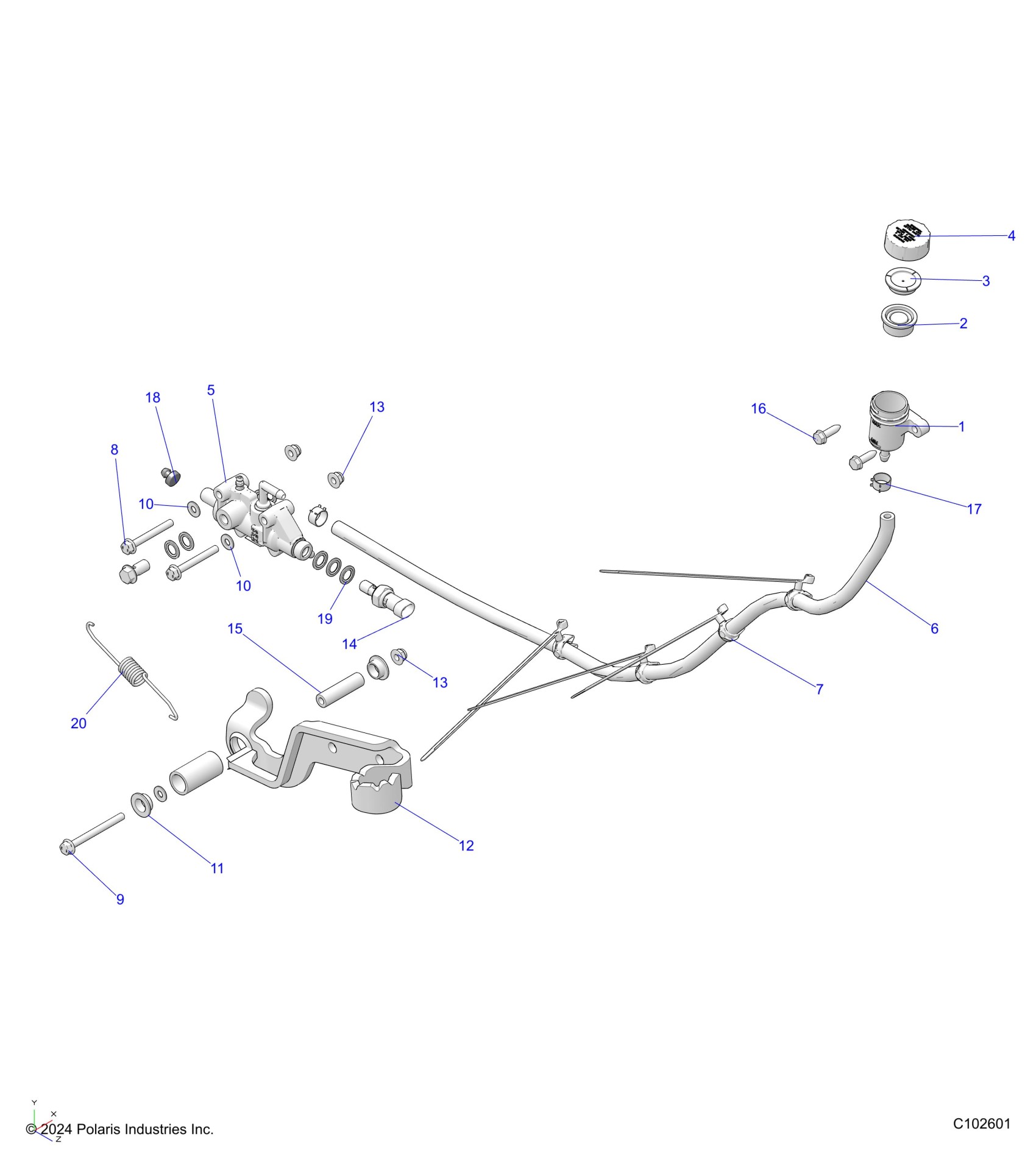

Polaris SPORTSMAN TOURING 570 EPS (R06) - A25SDA57A7/E57A4 BRAKES, BRAKE PEDAL and MASTER CYLINDER - A25SDA57A7/E57A4 (C102601) Diagram

ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 2-4]

1911224

$35.99

CUP-RESERVOIR,BRAKE

5437040

$7.19

DIAPHRAGM, RESERVOIR, BRAKE

5413262

$4.79

RING, RESERVOIR, BRAKE

5437041

$5.59

CAP-RESERVOIR,BRAKE

5437039

$5.59

ASM-DIRMC,3/4,B/U-RING,90DEG [INCL. HOSE, CLAMPS]

1914172

$91.99

HOSE-RESERVOIR,BRAKE,805MM

1911267-805

$10.39

CLIP-MOD OMEGA,1X12MM OD HOSE

7082593

$3.99

SCR-HXFL-M6X1.0X50 10.9 ZFB

7521331-50

$2.39

SCR-HXFL-M6X1.0X65 10.9 ZFB

7521331-65

$3.19

WASHER-.250X.563X.047 WRGHT-Y

7558203

$3.19

WASHER-.250X.563X.047 WRGHT-Y

7558203

$3.19

BUSHING-PEDAL PIVOT

5439274

$12.79

WELD-BRAKE,PEDAL,BLK

1027737-458

$79.99

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

SWITCH-BRK,M10X1.25,SGL,30-40 [FOR USE W/FOOT MASTER CYLINDER][TO 7/18/2025]

4081979

$83.99

SWITCH-BRK,M10X1.25,SGL,10-40 [FOR USE W/FOOT MASTER CYLINDER][FRM 7/18/2025]

4081315

$83.99

SHAFT-PIVOT,BRAKE PEDAL ASM

5143138

$10.56

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

HOSE CLAMP, RED

7080003

$1.49

BUMPER, RUBBER, 13.50 DIA X4.3 THK

5414486

$2.39

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

SPRING-RETURN,BRK,PEDAL,2.3

7046090

$8.79
