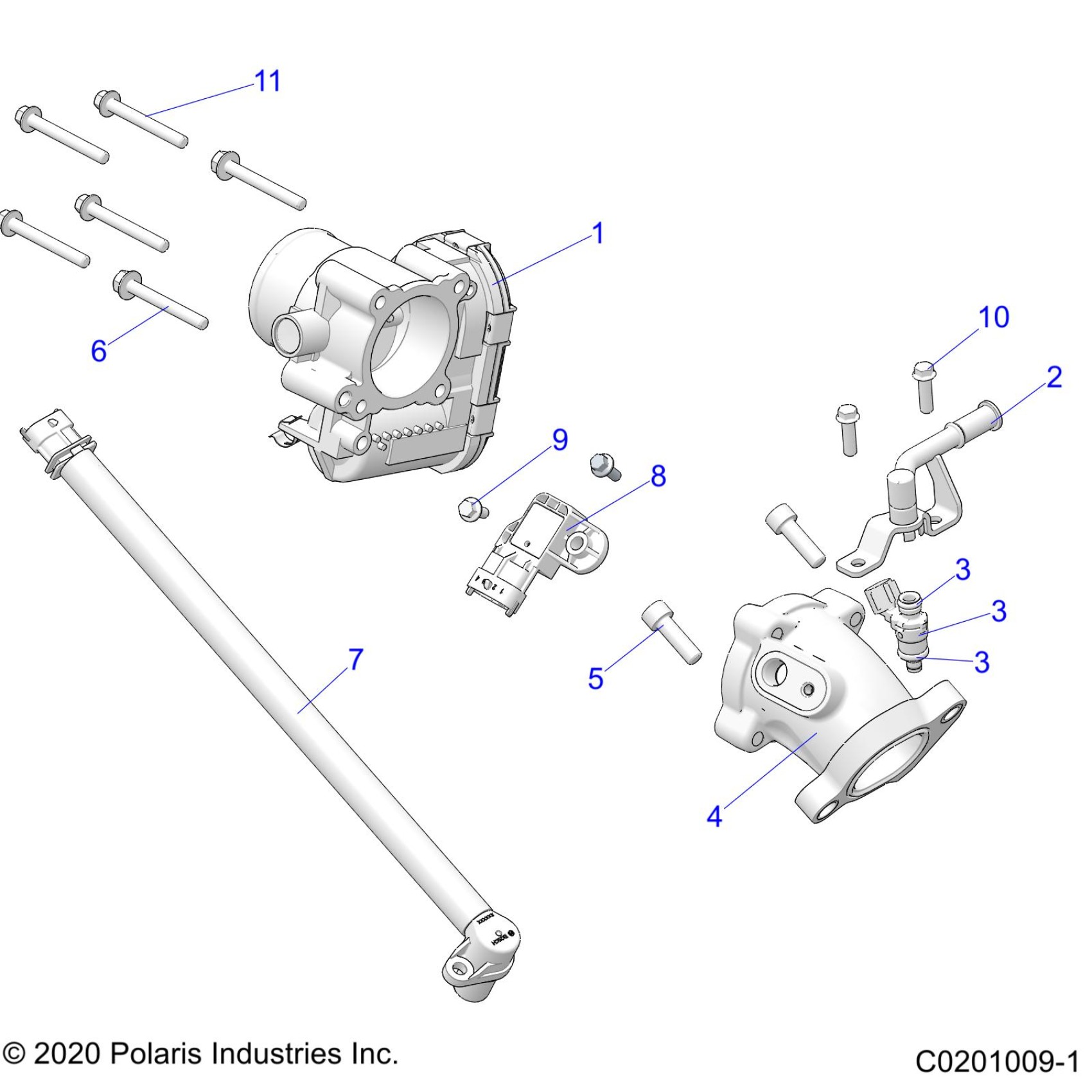

Polaris SPORTSMAN TOURING 570 EPS (R03) - A22SDE57A4/B4 ENGINE, THROTTLE BODY and FUEL RAIL - A22SDE57B4 (C0201009-1) Diagram

THROTTLE-ETC,46MM �

1204455

$495.29

RAIL-FUEL,1CYL �

2521795

$159.99

INJ-FUEL,SE [INCL. O-RINGS]

2521796

$91.99

O-RING BOSCH,EV-SE,UPPER �

5416412

$7.19

O-RING BOSCH,EV-SE,LOWER �

5416413

$7.19

INJ-FUEL,SE [INCL. O-RINGS]

2521796

$91.99

O-RING BOSCH,EV-SE,UPPER �

5416412

$7.19

O-RING BOSCH,EV-SE,LOWER �

5416413

$7.19

INJ-FUEL,SE [INCL. O-RINGS]

2521796

$91.99

O-RING BOSCH,EV-SE,UPPER �

5416412

$7.19

O-RING BOSCH,EV-SE,LOWER �

5416413

$7.19

ADAPTER-THROTTLE BODY �

5416532

$99.99

SCREW-SH-M8X1.25X25 8.8 ZPC �

7519859

$5.59

SCR-M6X1.0X50.0 HX/FL-Y/D �

7520078

$3.99

SENSOR, CRANK POSITION �

2411719

$101.17

ASM-SENSOR CRANK POSITION �

2414984

$91.99

SHIELD-HEAT,WRAP,CPS �

5814858

$19.99

SENSOR-TMAP DSS3-TF �

2411528

$93.08

SCR-HXFL-M5X0.8X14 18-8 �

7516603

$10.39

SCREW-HXFL-M6X1.0X20 8.8 ZY3 �

7518576

$3.19

SCR-M6X1.0X50.0 HX/FL-Y/D �

7517932

$3.99
