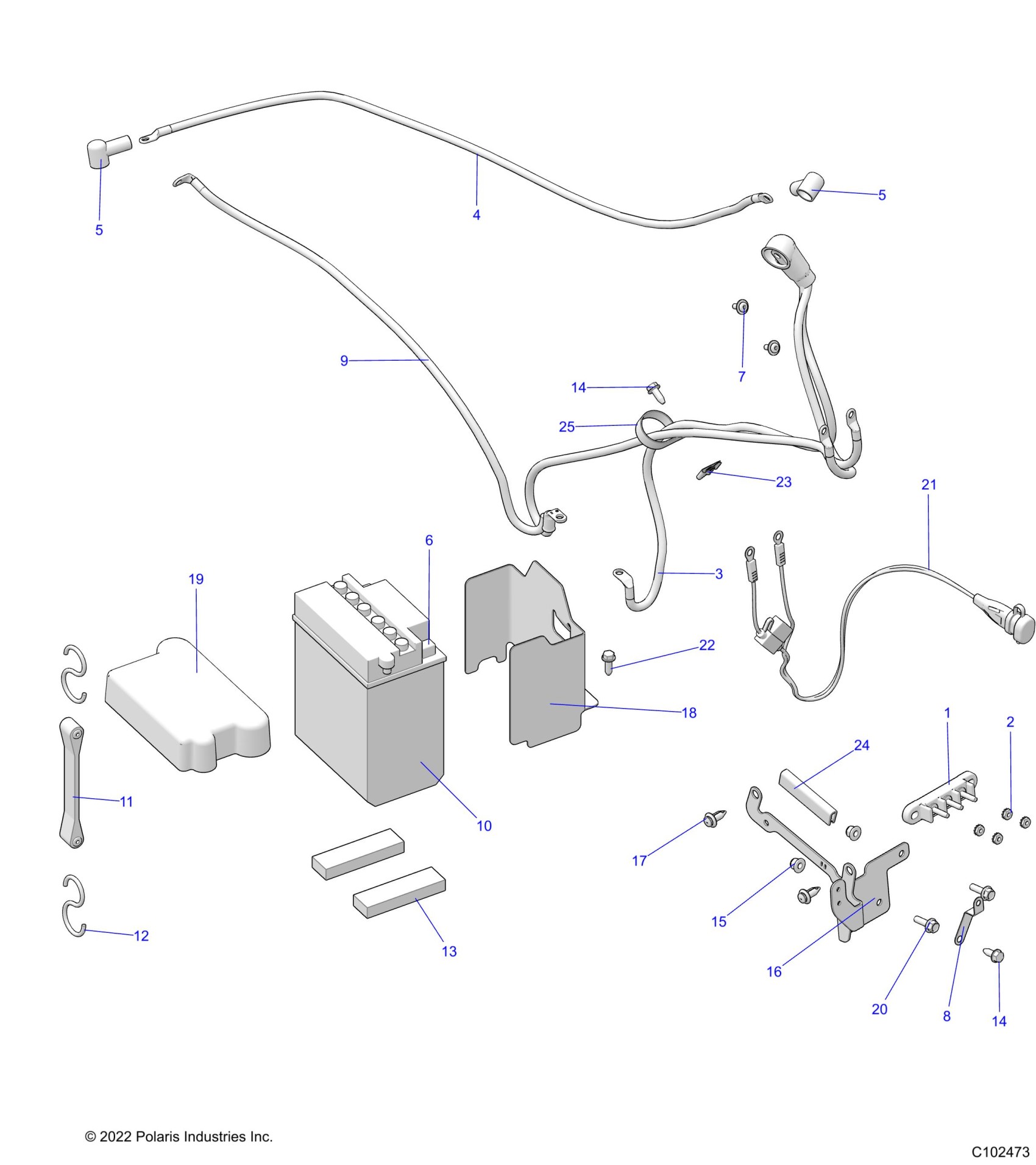

Polaris SPORTSMAN TOURING 570 EPS (R03) - A22SDE57A4/B4 ELECTRICAL, BATTERY - A22SDE57A4/B4 (C102473) Diagram

BLOCK, TERMINAL, 3 POST

4011892

$27.99

NUTS, KEPS, 10-32

7547341

$1.49

CABLE-BATT,6GA,RD,BATT/SOL/TB

4014935

$55.99

INSULATOR-CABLE [USE WITH 4014424-845]

5410346

$6.39

CABLE-BATT,6GA,RD,FLAT,FLAT,M6 [INCL. 4]

4014424-845

$47.99

CABLE-BATT,6GA,RD,FLAT,FLAT,M6 [INCL. 4]

4014424-845

$47.99

KIT, BATTERY BOLT

2202213

$3.79

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

STRAP, GROUND

5260167

$14.07

CABLE-BATT,6GA,BK,BAT/START/TB

4014937

$35.99

BATTERY-SEALED,14AH,ETX15

4011138

$107.99

STRAP, BATTERY, HOLD DOWN [TO 11/1/2021]

5412499

$4.62

STRAP-BATTERY HOLD DOWN [FROM 11/1/2021]

5418182

$4.79

Hook, Strap, Battery

7010032

$1.59

Foam, Cover

5813265

Unavailable

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

NUT-M6 FLANGE,NYLOC

7547274

$1.49

BRKT-FUSE BLOCK

5270030

$14.39

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

BRACKET, BATTERY, GUARD

5259571

$31.99

Cover, Battery

5431769

$14.39

SCR-HXFL-M6X1.0X20 8.8 RIE

7519121

$3.99

PLUG-HARNESS BATTERY CHARGE

2415060

$27.99

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$1.49

NUT-1/4-20 "U" TYPE SPEED

7670057

$1.49

EDGE TRIM-BLACK,07 CM

8360012-07

Unavailable

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable
