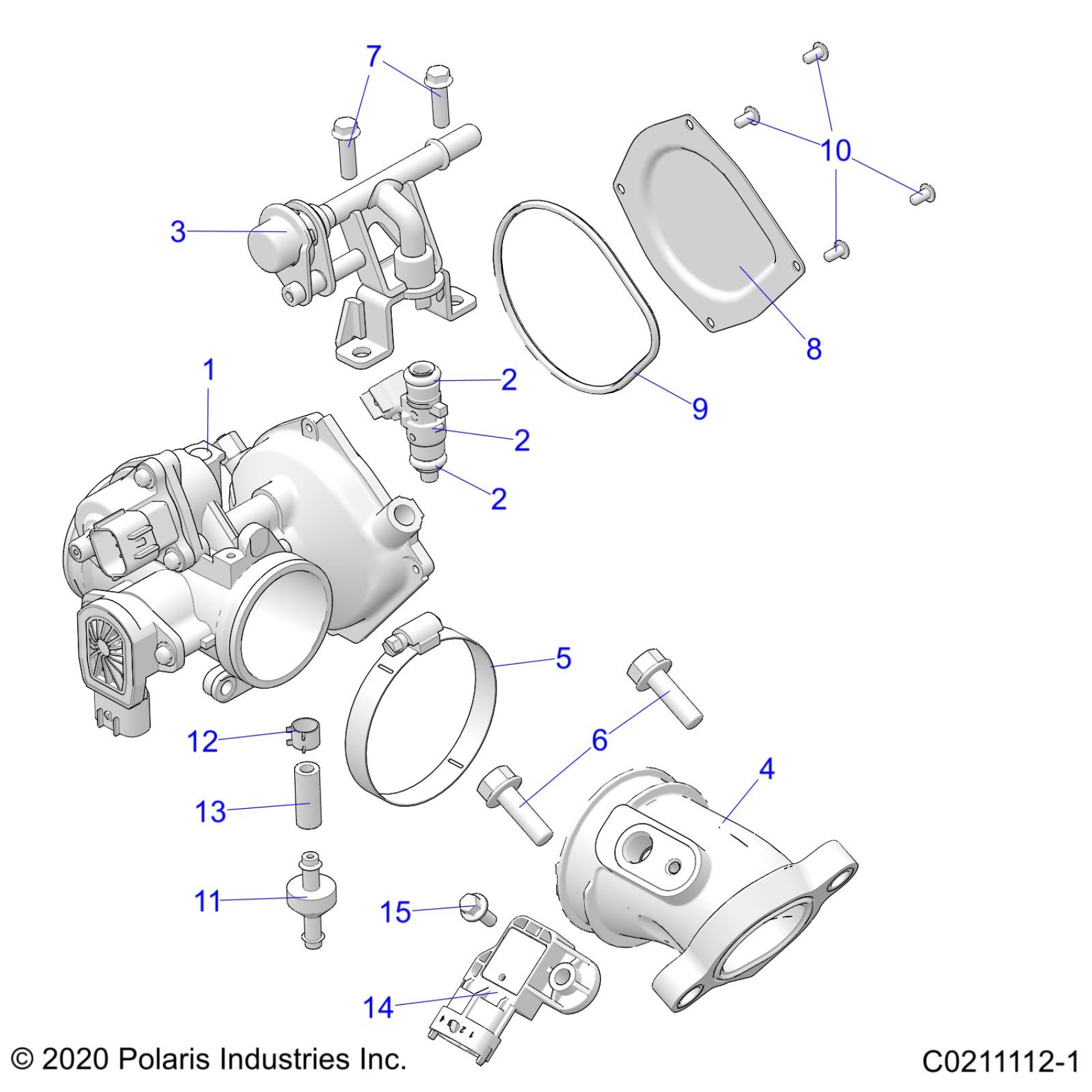

Polaris SPORTSMAN TOURING 570 EPS (R02) - A21SDE57A4/B4 ENGINE, THROTTLE BODY and FUEL RAIL - A21SDE57A4 (C0211112-1) Diagram

#

Description
Price

1

ASM-THROTTLE BODY,ATV,MIKUNI [INCL. TPS SENSOR AND SCREWS]

1205009

$347.99

1

SENSOR, THROTTLE POSITION

3131705

$187.99

1

SCREW

3131628

$5.27

2

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

2

INJ-FUEL,EV14COMPACT,200G [INCL. O-RINGS]

2521068

$95.99

2

O-RING GREEN, LOWER [USED WITH 2521068]

5415066

$11.32

2

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

2

INJ-FUEL,EV14COMPACT,200G [INCL. O-RINGS]

2521068

$95.99

2

O-RING GREEN, LOWER [USED WITH 2521068]

5415066

$11.32

2

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

2

INJ-FUEL,EV14COMPACT,200G [INCL. O-RINGS]

2521068

$95.99

2

O-RING GREEN, LOWER [USED WITH 2521068]

5415066

$11.32

3

RAIL, FUEL [USED WITH 2521068]

2521403

$131.19

4

ADAPTER-THROTTLE BODY,MECH

5415524

$75.99

5

CLAMP-WORM GEAR,44-70MM,HOSE [A4]

7081623

$3.19

6

SCR-M8X1.25X25-HX/FL-Y/D

7516734

$3.19

7

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

8

COVER-THROTTLE BODY

5259059

$5.59

9

GASKET-TB HOUSING

5415104

$1.59

10

SCREW

7519292

$1.49

11

VALVE, CHECK

7052038

$10.51

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

13

FUEL LINE-2.5 CENTIMETERS

8450003-025

Unavailable

14

SENSOR-TMAP DSS3-TF

2411528

$93.08

15

SCR-HXFL-M5X0.8X14 18-8

7516603

$10.39
