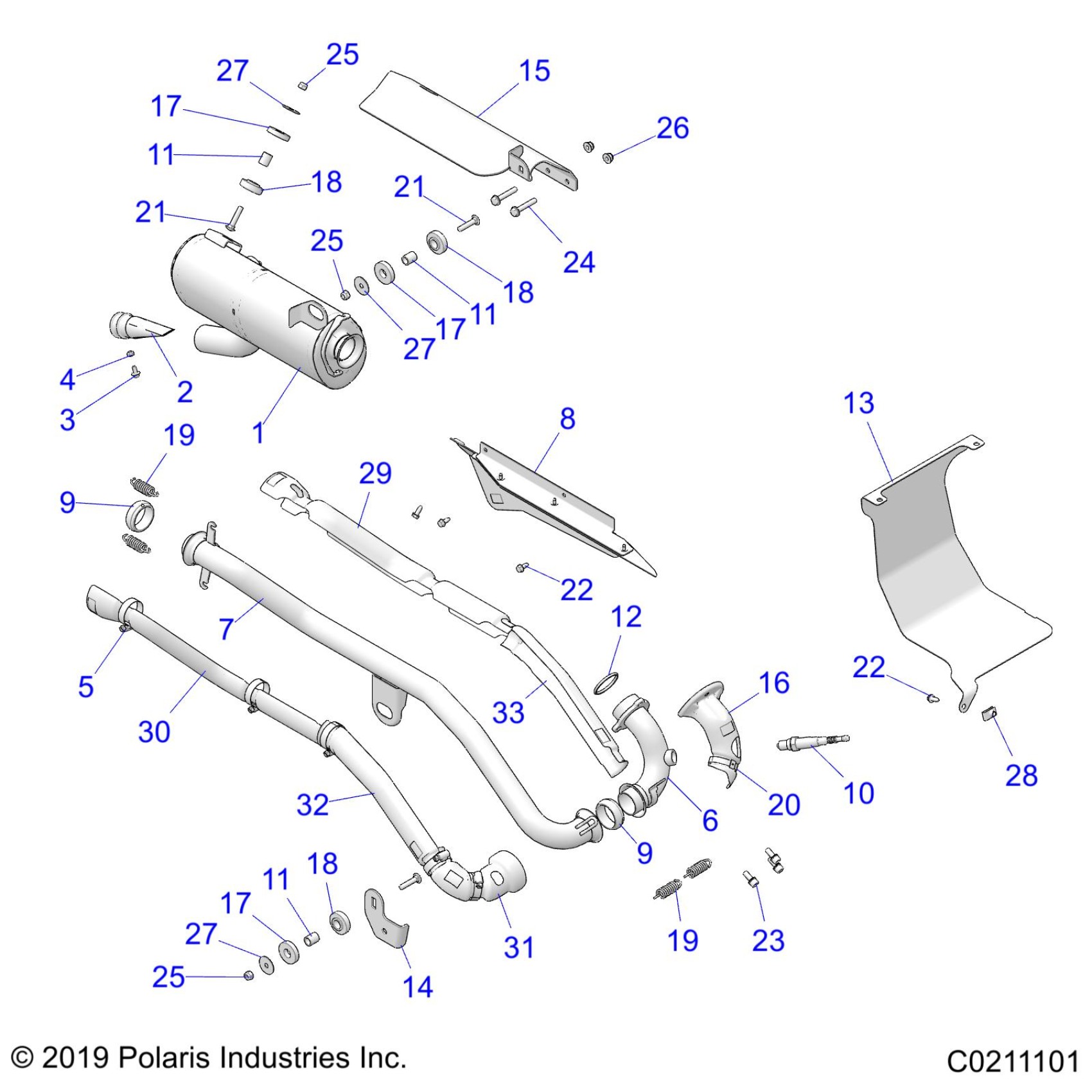

Polaris SPORTSMAN TOURING 570 EPS (R02) - A21SDE57A4/B4 ENGINE, EXHAUST EVAP - A21SDE57B4 (C0211101) Diagram

#

Description
Price

1

WELD-SILENCER,570,CAT,PWDR BLK [INCL. 1-4]

1263233

$554.39

2

WELD-SPARK ARRESTOR,QT �

1262239

$43.99

3

SCREW-HXFL-M6X1.0X12 10.9 ZPC �

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC �

7547120

$4.79

5

WELD-SILENCER SUPPORT,BLK �

1024693-329

$30.79

6

WELD-MANIFOLD �

1263313

$127.99

7

ASM-EXHAUST PIPE,570 EFI,SS [INCL. SHIELDS, CLAMPS]

1263315

$602.79

8

ASM-SHIELD,AIRBOX �

2638121

$65.99

9

GASKET-DOUBLE SPHERICAL,1.625" �

3610312

$9.59

9

GASKET-DOUBLE SPHERICAL,1.625" �

3610312

$9.59

10

SENSOR-LAMBDA,LSF 4.2 �

4011853

$135.54

11

BUSHING-.459 X.625 X.75 �

5010192

$6.39

11

BUSHING-.459 X.625 X.75 �

5010192

$6.39

11

BUSHING-.459 X.625 X.75 �

5010192

$6.39

12

GASKET-EXHAUST SEALING �

5253989

$27.99

13

SHIELD-FUEL TANK,FRAME MNT,TRG �

5262925

$27.99

14

BRKT-EXHAUST PIPE SUPPORT,BLK �

5267243-067

$13.19

15

BRACKET,SILENCER,FRAME �

5267285

$43.99

16

SHIELD-HEAT,EXHAUST,HEADPIPE �

5267286

$35.99

17

WSHR-15.4X38.1X7.9 RUBBER �

5414945

$4.79

17

WSHR-15.4X38.1X7.9 RUBBER �

5414945

$4.79

17

WSHR-15.4X38.1X7.9 RUBBER �

5414945

$4.79

18

DAMPER-VIBRATION �

5414946

$4.79

18

DAMPER-VIBRATION �

5414946

$4.79

18

DAMPER-VIBRATION �

5414946

$4.79

19

SPRING-EXHAUST �

7045211

$7.99

19

SPRING-EXHAUST �

7045211

$7.99

20

CLAMP-45.0DX7W,304SS,OETIKER �

7082132

$4.79

21

BOLT-CARR-5/16-18X1 1/2 GR5-Y �

7515316

$2.39

21

BOLT-CARR-5/16-18X1 1/2 GR5-Y �

7515316

$2.39

22

SCR-1/4-20X5/8,TAP/R-Y �

7517386

$1.49

22

SCR-1/4-20X5/8,TAP/R-Y �

7517386

$1.49

23

SCR-M8X1.25X20,HXSOC-CSSPL-SEM �

7517555

$8.79

24

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 �

7518341

$4.79

25

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC �

7547623

$3.19

25

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC �

7547623

$3.19

25

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC �

7547623

$3.19

26

NUT-5/16-18 HX FLG NL-Y �

7542343

$4.79

27

WASHER-.328X1.25X16GA, FL-Y �

7555716

$1.59

27

WASHER-.328X1.25X16GA, FL-Y �

7555716

$1.59

27

WASHER-.328X1.25X16GA, FL-Y �

7555716

$1.59

28

NUT-CHIMNEY 1/4-20,GR-5 �

7670096

$1.59

29

SHIELD-HEAT,EXHAUST,REAR

5267238

$67.99

30

SHIELD-HEAT,EXHAUST,REAR

5267239

$67.99

31

SHIELD-HEAT,EXHAUST,MID

5267240

$59.99

32

SHIELD-HEAT,EXHAUST,MID

5267284

$30.79

33

SHIELD-HEAT,EXHAUST MID,INNER

5267368

$30.79
