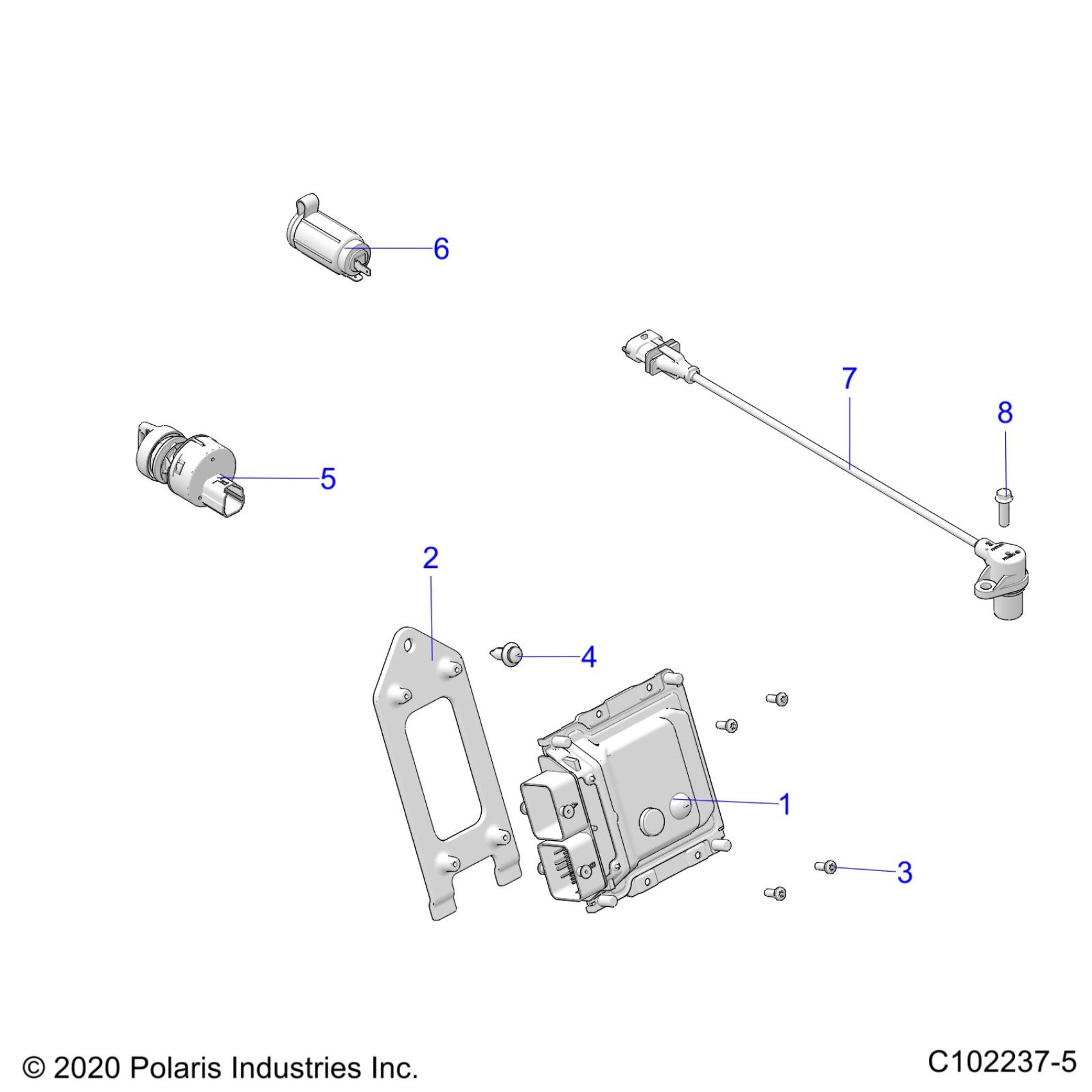

Polaris SPORTSMAN TOURING 570 EPS (R02) - A21SDE57A4/B4 ELECTRICAL, SWITCHES, SENSORS and ECM - A21SDE57A4/B4 (C102237-5) Diagram

#

Description

Price

1

ECU, BASE, M17 [A4]

4012838

$440.69

1

ECM-HARD,ME17,2CYL,250K [B4]

4014125

$694.99

2

MNT-ECM,REAR,BLK

5438708-070

$10.39

3

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

4

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

5

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

5

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

5

SWITCH, KEY, 3 POSITION, SEALED [INCL. NUT, COVER, and KEY]

4015033

Unavailable

5

KEY SWITCH KEY COVER

5433534

$12.35

5

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

6

Receptacle, Pod Mount, 12 Volt

4010638

$24.27

7

SENSOR, CRANK POSITION

2411719

$101.17

8

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19
