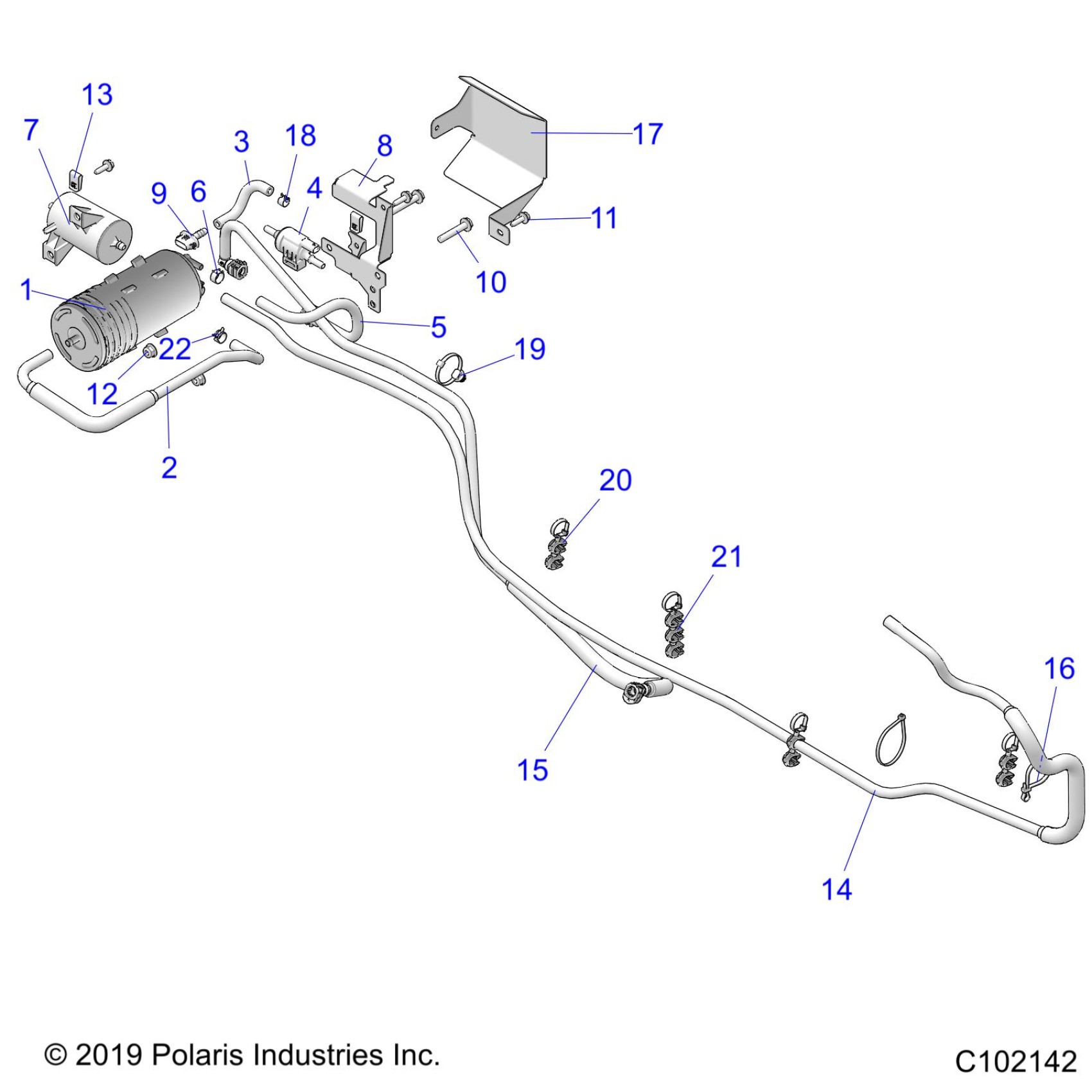

Polaris SPORTSMAN TOURING 570 EPS (R02) - A21SDE57A4/B4 BODY, FUEL TANK EVAP - A21SDE57B4 (C102142) Diagram

CANISTER-ACTIVATED CARBON,BFL �

2521893

$87.99

HOSE-AIR,FRESH,FUEL VENT �

5417156

$67.99

FUEL LINE-10 CENTIMETERS �

8450040-10

Unavailable

VALVE-PURGE �

2521964

$59.99

ASM-LINE,CANISTER TO PURGE �

2522190

$63.99

HOSE CLAMP, RED �

7080003

$1.49

FILTER-CANISTER VENT �

2521750

$55.99

BRKT-MNT,PRG VLV,FILTER,E COAT �

5268313-329

$51.99

FITTING-VENT LINE �

5453465

$5.59

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 �

7518341

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK �

7518529

$1.49

NUT-5/16-18 HX FLG NL-Y �

7542343

$4.79

NUT-M6-1.0, U-TYPE (2.5-3.8) �

7547674

$1.49

LINE-TANK TO CANISTER,TRG [INCL SLEEVE]

2522192

$146.29

ASM-LINE,PURGE TO TB [INCL SLEEVE]

2522191

$117.03

CABLE-TIE,7-46MM,DUAL-LOOP �

7081033

$3.99

COVER,PRG VLV,FILTER,E COAT �

5268631-329

$95.99

CLAMP-HOSE,(7/16) �

7080236

$1.59

CLIP-DUCT,OUTLET �

7082264

$7.99

CLIP-MOD OMEGA,2X12MM OD HOSE �

7082594

$13.59

CLIP-MOD OMEGA,3X12MM OD HOSE �

7082595

$23.99

CLAMP-HOSE, 17/32, GREEN �

7081432

$3.99
