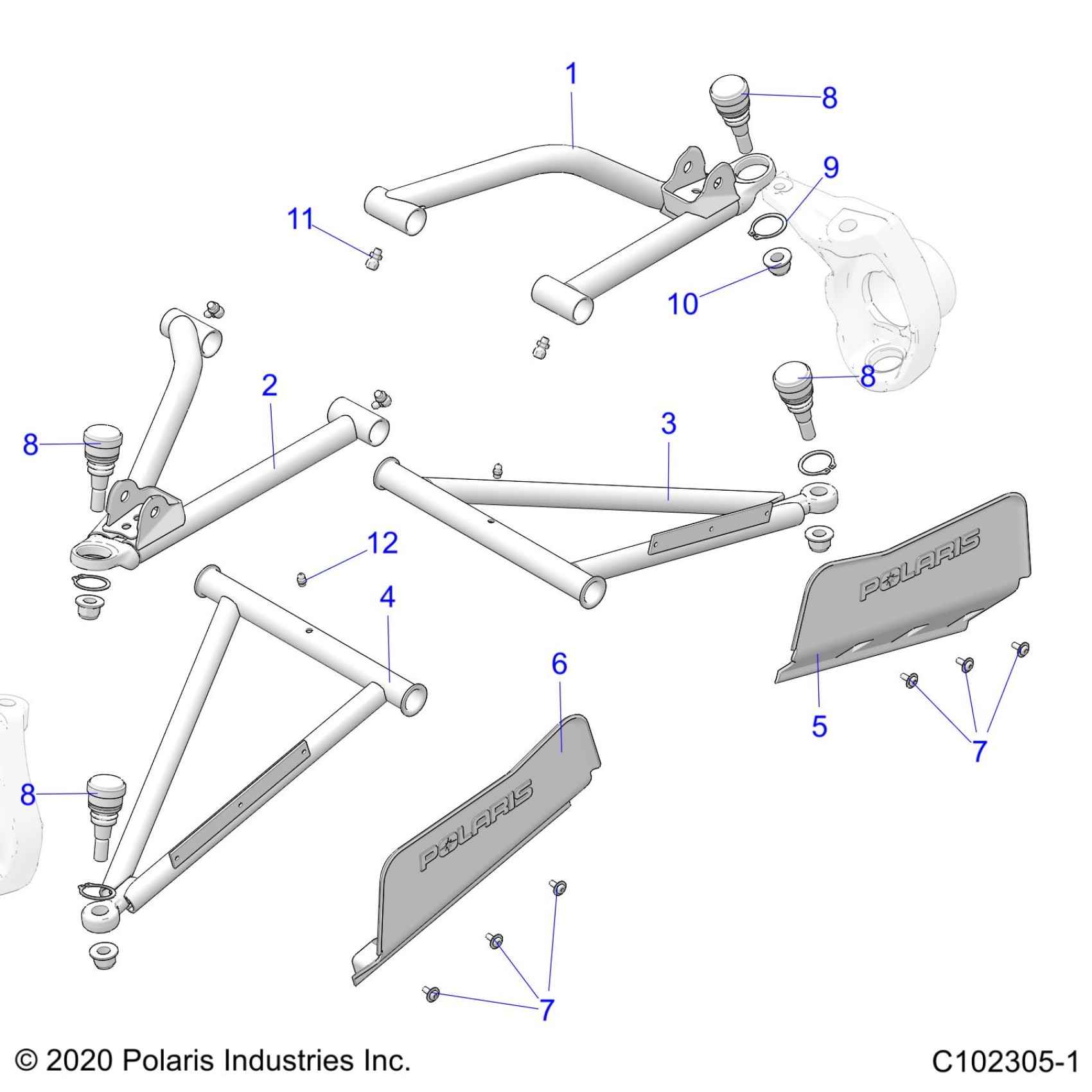

Polaris SPORTSMAN TOURING 570 EPS (R01) - A24SJE57AX SUSPENSION, A-ARMS - A24SJE57AX (C102305-1) Diagram

CONTROL, ARM, UPPER, FRONT, LH, MATTE BLACK

1020527-458

$154.90

CONTROL, ARM, UPPER, FRONT, RH, MATTE BLACK

1020528-458

$142.84

CONTROL, ARM, LOWER, FRONT, LH, MATTE BLACK

1020987-458

$92.99

CONTROL, ARM, LOWER, FRONT, RH, MATTE BLACK

1020988-458

$114.99

Shield, CV, Front, LH, Black

5435028-070

$24.27

Shield, CV, Front, RH, Black

5435029-070

$24.27

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.19

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.19

BALL-JOINT,M12X1.50,TAPERED

7082538

$47.49

BALL-JOINT,M12X1.50,TAPERED

7082538

$47.49

BALL-JOINT,M12X1.50,TAPERED

7082538

$47.49

BALL-JOINT,M12X1.50,TAPERED

7082538

$47.49

RING-RETAINER,EXTERNAL,1.188

7710533

$2.38

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

FITTING-ZERK.25 S/TAP90D-3054B

7080510

$5.56

FITTING-LUB, 1/4-28-STR/1792-Y

7080433

$1.19
