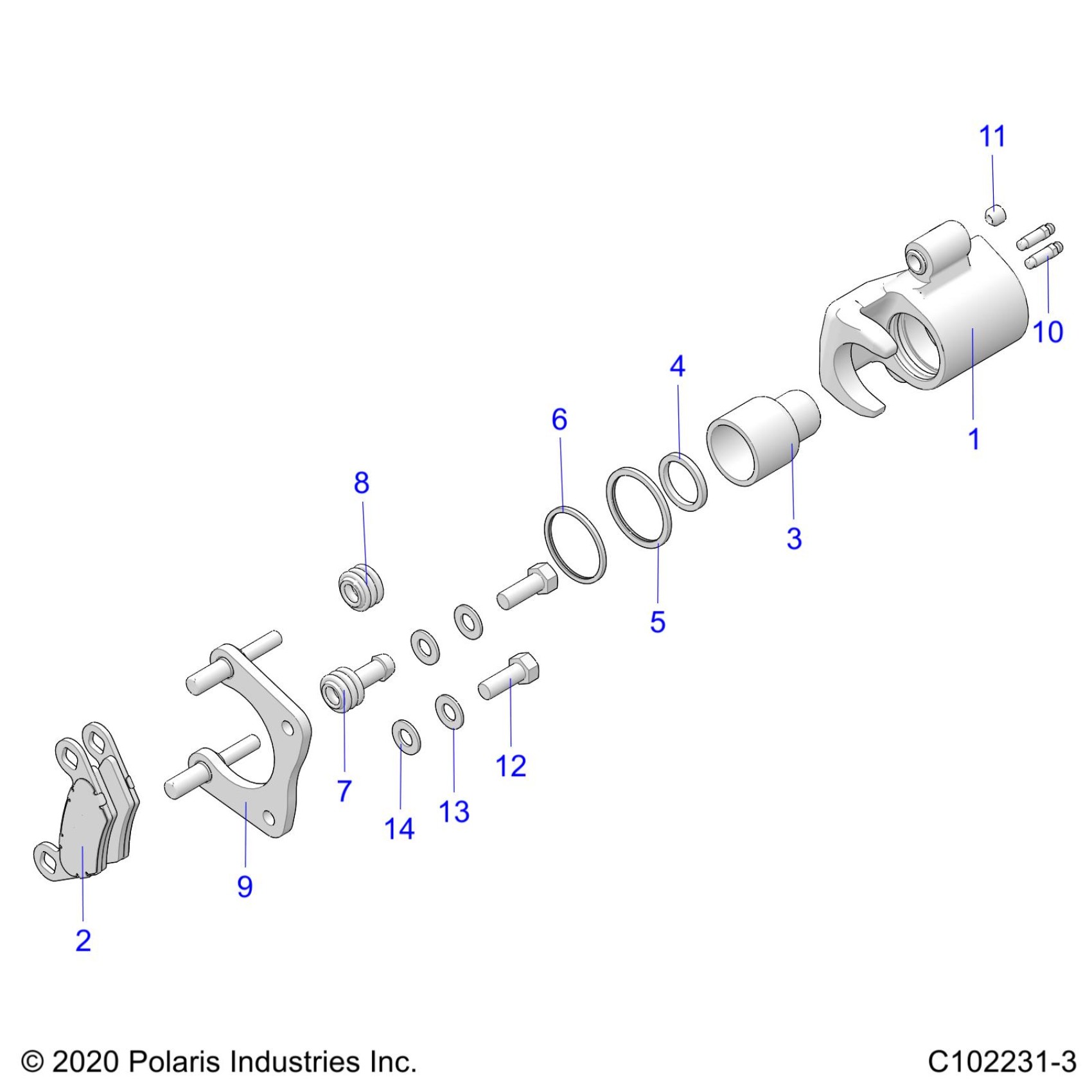

Polaris SPORTSMAN TOURING 570 EPS (R01) - A24SDA57A5/E57A4 BRAKES, REAR CALIPER - A24SDA57A5/E57A4 (C102231-3) Diagram

#

Description

Price

1

ASM., CALIPER, DUAL INPUT, REAR, RH [INCL. 1-11]

1911415

$288.87

2

KIT, BRAKE PAD [INCL. 2 PADS]

2204088

$28.56

3

PISTON, BRAKE, STEP

5136698

$48.87

4

SQUARE RING-MOLDED (.134)

5410766

$12.13

5

SEAL-CALIPER INNER,1.50"

5412010

$8.54

6

SEAL-CALIPER,OUTER,1.50"

5412011

$7.27

7

BOOT-PIN BUSHING

5412505

$3.22

8

BOOT-PIN SEAL

5412506

$3.22

9

ASM-CALIPER MOUNT,RR,DIC

1911416

$47.49

10

BLEEDER SCREW, 4WD

7080352

$3.17

11

SCR-3/8-24X5/16 SOC SET-Y

7515489

$5.56

12

BOLT(10) [CALIPER MOUNTING]

7512457

$3.97

13

WASHER-3/8 SPRING-LOCK-MED-Y [CALIPER MOUNTING]

7552603

$0.79

14

WASHER-FL.390X.750X.065-Y [CALIPER MOUNTING]

7556188

$3.17
