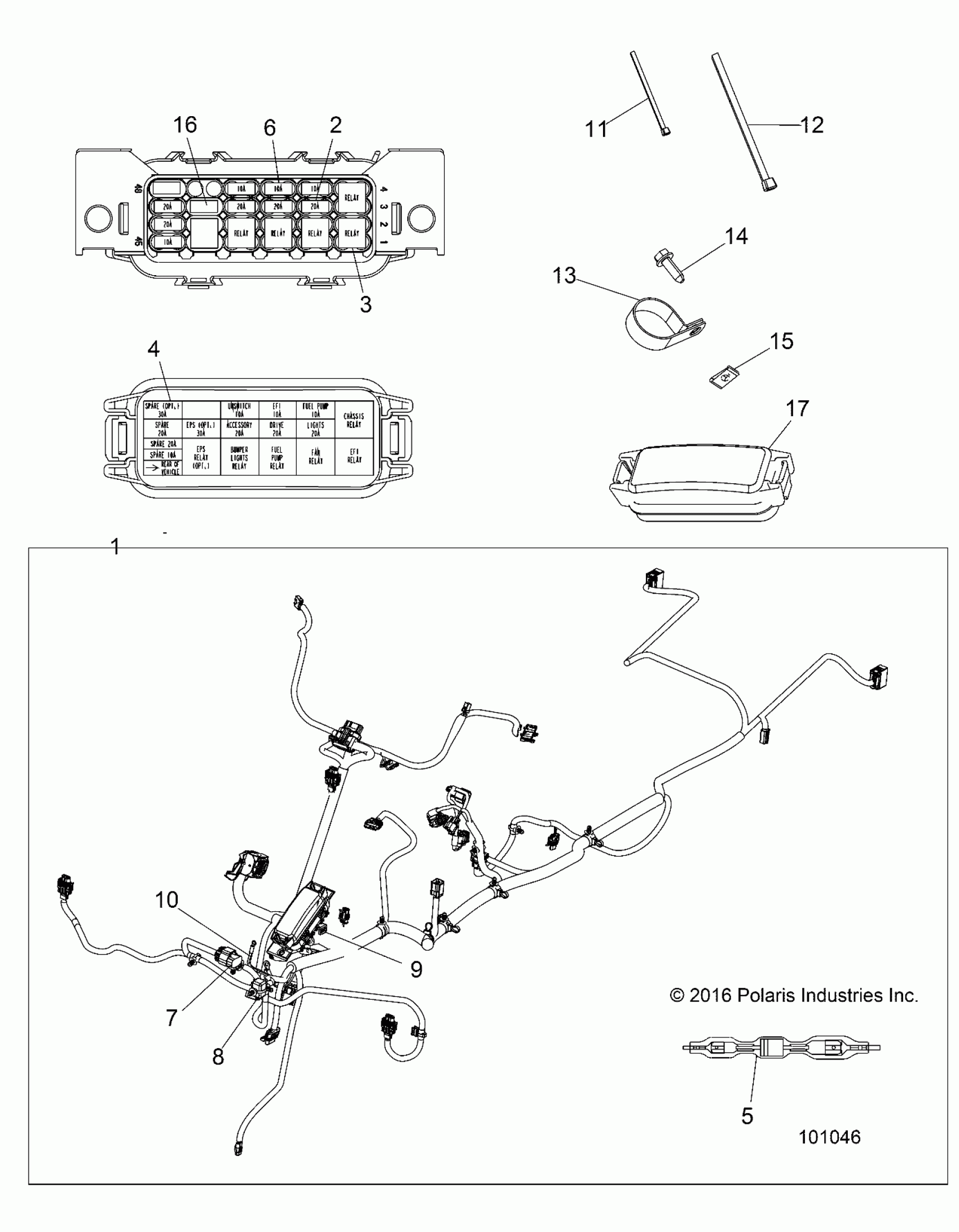

Polaris SPORTSMAN TOURING 570 EFI/EPS (R12) - A17SDA57A1/L2/E57A2 ELECTRICAL, HARNESS - A17SDA57A1/L2/E57A2 Diagram

Description

Price

HARNESS-MAIN,SPMN 570 TOUR [A1][L2]

2412886

$1,149.99

HARNESS-MAIN,SPMN 570 TOUR EPS [A2]

2412485

$1,099.99

FUSE-PARK,20 AMP

2434017

$8.08

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

LABEL-FUSE BOX

7185329

Unavailable

DIODE, 6 AMP

2411035

$56.65

FUSE-IGNITION,10 AMP

2434016

$5.65

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

BREAKER, CIRCUIT, 10 AMP

2410692

$28.32

DIODE, 6 AMP

2410000

$40.46

KIT, FUSE LINK, .8MM

2202607

$39.68

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

SCREW

7512232

$1.19

NUT, U-TYPE SPEED

7670057

$1.19

FUSE-MAIN,30 AMP

2434015

$8.87

COVER, FUSEBOX

4015011

$60.70

SEAL, FUSE CENTER

5415598

$8.73
