Description

Price

1

ASM-TRANS,PDS,NO DIFF,BOSS [INCL. ALL]

1333474

$3,216.39

2

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$31.99

2

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$31.99

3

SUBASSEMBLY, LH COVER, PDS EAGLE

3235605

$405.59

4

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

4

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

5

CHAIN, SILENT 17 WIDE X 1.0 X86P

3234057

$263.99

6

GEARCASE, RH MACH

3235606

$530.39

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

8

SPROCKET, 19T

3234060

$239.99

9

DEFLECTOR, OIL

3234061

$23.99

10

SCREW, TAPPING TORX, 8-32 X .50

3233749

$5.59

11

GEAR OUTPUT 91T, HRC

3234062

$251.99

12

RTNG RING, 1RR 7200-118

3233699

$7.19

13

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$5.59

13

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$5.59

13

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$5.59

14

COVER, BEARING, CENTER DRIVE

3234063

$27.99

15

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

15

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

16

SHIM 1.700 X 1.385

3234271

$19.99

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

18

PINION, 13T CENTER DRIVE

3234263

$405.59

19

RING, RETAINING BASIC EXTERNAL .787 SHAFT

3234067

$7.99

20

WASHER THRUST, 1.270 X .793 X .065

3233176

$9.59

21

GEAR-HELICAL 35T

3236032

$131.99

22

BEARING, NEEDLE CAGE ASSY

3233009

$39.99

23

WASHER, 1.250 X .876 X .050

3233855

$10.39

24

DOG, L/P

3234257

$143.99

25

ENGAGEMENT DOG, 6-FACE

3234258

$91.99

26

RING, RETAINING

3233306

$4.79

26

RING, RETAINING

3233306

$4.79

27

WASHER 1.300 X .995 X .065

3234248

$9.59

27

WASHER 1.300 X .995 X .065

3234248

$9.59

28

SPROCKET, 38T 6-FACE

3234290

$151.99

29

SHAFT, REVERSE 26T

3234280

$259.99

30

GEAR, 33T 6-FACE

3234291

$163.99

31

COLLAR-SHIFT

3234073

$31.99

32

PLATE, PARK 12-FACE

3233915

$39.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

34

SEAL, TRIPLE LIP 25 X 47 VITON

3234851

$35.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

SHAFT, 39T INPUT HELICAL

3235782

$250.79

37

CHAIN .25P X .40W X 50L

3234264

$95.99

38

FORK, SHIFT

3234077

$171.99

38

FORK, SHIFT

3234077

$171.99

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

RAIL, SHIFT SHAFT

3234079

Unavailable

41

PIN, TENSIONER

3233432

$7.19

42

TORSION SPRING

3233431

$23.99

43

CAM, CHAIN TENSIONER

3233434

$12.79

44

SHOE, CHAIN TENSIONER

3233433

$27.99

45

DRUM, SHIFT MACH

3234360

$171.99

46

GEAR-SECTOR,31T

3233832

$31.99

47

SHAFT, SHIFT

3233831

$59.99

48

O-RING, -014

3233869

$5.59

49

Pawl, Detent

3233829

$31.99

50

SPRING, COMPRESSION DETENT

3234578

$12.79

51

COVER, SECTOR GEAR MACH

3234188

$107.99

52

BELLCRANK, .510 HOLE, 92~

3234584

$23.99

53

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$2.79

54

SWITCH, ROTARY 2-PIN RESISTIVE

7661999

$111.99

55

RING, SNAP

3233834

$10.39

56

GEAR, SECTOR 16T

3233839

$31.99

57

Star, Detent

3233909

$23.99

58

O-RING, 2-012

3233076

$6.39

59

GEAR, 13T SNORKEL

3234262

$307.99

60

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

61

RING, RETAINING BASIC EXT n.84

3234336

$5.59

62

TUBE, SNORKEL MACH

3234278

$95.99

63

SCREW, TORX PAN HD 1/4-20 X .75

3234086

$5.59

63

SCREW, TORX PAN HD 1/4-20 X .75

3234086

$5.59

64

SHIM 1.180 OD X .995 ID

3234272

$31.99

65

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

66

SEAL, TRIPLE LIP, 25 X 80 X 10

3234113

$35.99

67

TUBE, VENT 90~ 1/4" HOSE

3234230

$9.59

68

SCREW, TAPPING, WASHER HD 5/16-18 X 1.25

3234114

$7.19

69

PIN, 5/16 X 1.0

3234244

$7.19

69

PIN, 5/16 X 1.0

3234244

$7.19

70

PLUG, 3/4-16, 5/16 INTERNAL HEX

3233194

Unavailable

71

SPRING COMPRESSION .46 I.D. X .73

3234089

$23.99

71

SPRING COMPRESSION .46 I.D. X .73

3234089

$23.99

72

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

72

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

73

WASHER-CUP

3234091

$9.59

73

WASHER-CUP

3234091

$9.59

74

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

75

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

76

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.99

76

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.99

77

SENSOR-SPEED,TRANS

4013908

Unavailable

78

O-RING

3234302

$7.19

79

SUB-ASSY, SHAFT, 59T FINAL OUTPUT 1.00" WITH BEARING

3235604

$255.99

80

SPACER

3235243

$9.59

81

PLUG, 3/4-16 HOLLOW HEX

3234529

Unavailable

82

BRACKET, WIRE HARNESS

3235350

$8.79

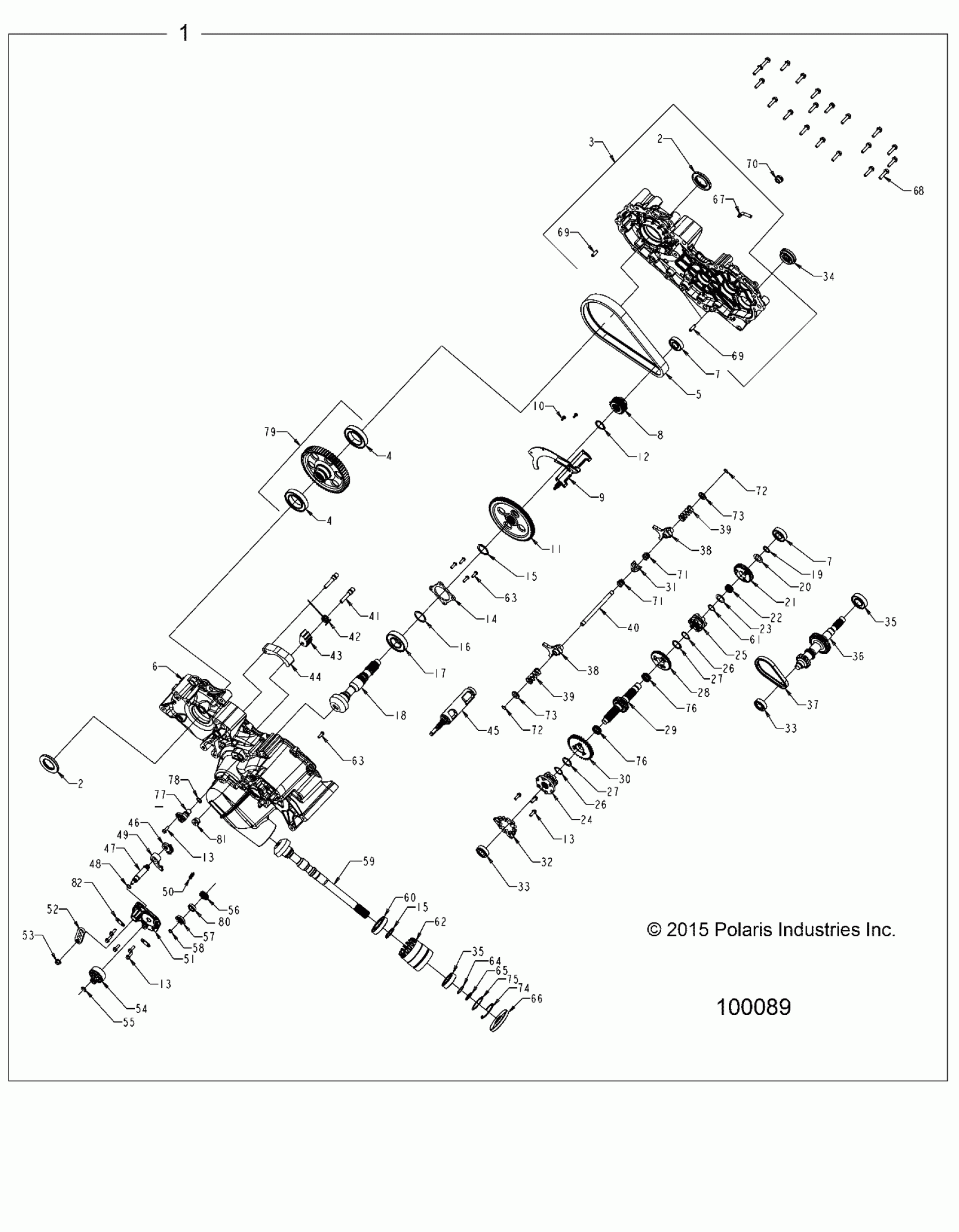

Polaris SPORTSMAN TOURING 570 EFI/EPS (R11) - A16SDA57A1/L2/E57A2 DRIVE TRAIN, MAIN GEARCASE - A16SDE57A2 Diagram

ASM-TRANS,PDS,NO DIFF,BOSS [INCL. ALL]

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

SUBASSEMBLY, LH COVER, PDS EAGLE

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

CHAIN, SILENT 17 WIDE X 1.0 X86P

GEARCASE, RH MACH

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

SPROCKET, 19T

DEFLECTOR, OIL

SCREW, TAPPING TORX, 8-32 X .50

GEAR OUTPUT 91T, HRC

RTNG RING, 1RR 7200-118

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

COVER, BEARING, CENTER DRIVE

RING, RETAINING SHAFT, DIA. 1.375

RING, RETAINING SHAFT, DIA. 1.375

SHIM 1.700 X 1.385

BEARING,BALL 6207 C3 35X72X17

PINION, 13T CENTER DRIVE

RING, RETAINING BASIC EXTERNAL .787 SHAFT

WASHER THRUST, 1.270 X .793 X .065

GEAR-HELICAL 35T

BEARING, NEEDLE CAGE ASSY

WASHER, 1.250 X .876 X .050

DOG, L/P

ENGAGEMENT DOG, 6-FACE

RING, RETAINING

RING, RETAINING

WASHER 1.300 X .995 X .065

WASHER 1.300 X .995 X .065

SPROCKET, 38T 6-FACE

SHAFT, REVERSE 26T

GEAR, 33T 6-FACE

COLLAR-SHIFT

PLATE, PARK 12-FACE

BEARING, BALL 6203 17 X 40 X 12

BEARING, BALL 6203 17 X 40 X 12

SEAL, TRIPLE LIP 25 X 47 VITON

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

SHAFT, 39T INPUT HELICAL

CHAIN .25P X .40W X 50L

FORK, SHIFT

FORK, SHIFT

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

RAIL, SHIFT SHAFT

PIN, TENSIONER

TORSION SPRING

CAM, CHAIN TENSIONER

SHOE, CHAIN TENSIONER

DRUM, SHIFT MACH

GEAR-SECTOR,31T

SHAFT, SHIFT

O-RING, -014

Pawl, Detent

SPRING, COMPRESSION DETENT

COVER, SECTOR GEAR MACH

BELLCRANK, .510 HOLE, 92~

NUT, LOCK, HEX FLANGE NYLON 5/16-24

SWITCH, ROTARY 2-PIN RESISTIVE

RING, SNAP

GEAR, SECTOR 16T

Star, Detent

O-RING, 2-012

GEAR, 13T SNORKEL

BEARING-BALL 6007 C3 35 X 62 X 14

RING, RETAINING BASIC EXT n.84

TUBE, SNORKEL MACH

SCREW, TORX PAN HD 1/4-20 X .75

SCREW, TORX PAN HD 1/4-20 X .75

SHIM 1.180 OD X .995 ID

RING,RETAINING BASIC,EXTERNAL 0.984

SEAL, TRIPLE LIP, 25 X 80 X 10
