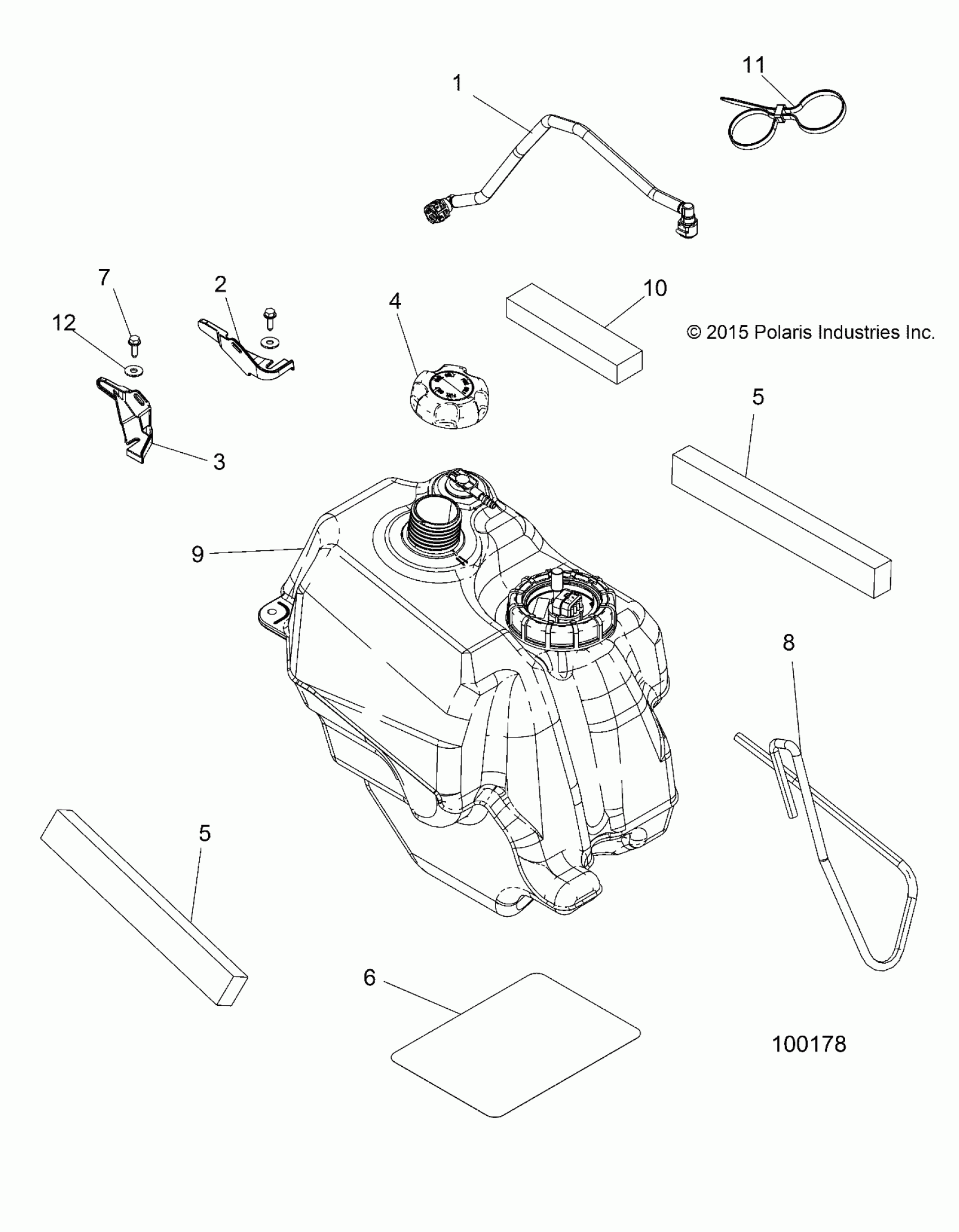

Polaris SPORTSMAN TOURING 570 EFI/EPS (R11) - A16SDA57A1/L2/E57A2 BODY, FUEL TANK ASM. - A16SDA57A1/L2/E57A2 Diagram

#

Description
Price

-

KIT, FUEL PUMP [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2205469

Unavailable

1

ASM., FUEL LINE, HARD

2521408

$45.19

2

BRKT-SEAT BASE,CAB MNT,PP,LH

5452276

$5.59

3

BRKT-SEAT BASE,CAB MNT,PP,RH

5452277

$5.59

4

CAP-GAS TANK

5439075

$23.99

5

FOAM, SEAL

5813255

$7.19

5

FOAM, SEAL

5813255

$7.19

6

FOIL, FIBER, FUEL TANK

5814270

$23.99

7

Screw

7515179

$2.39

8

Line, Fuel

8450003-1525

Unavailable

9

ASM., FUEL TANK

2521333

$879.99

10

Foam, Cover

5813265

Unavailable

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

WASHER

7555960

$3.99
