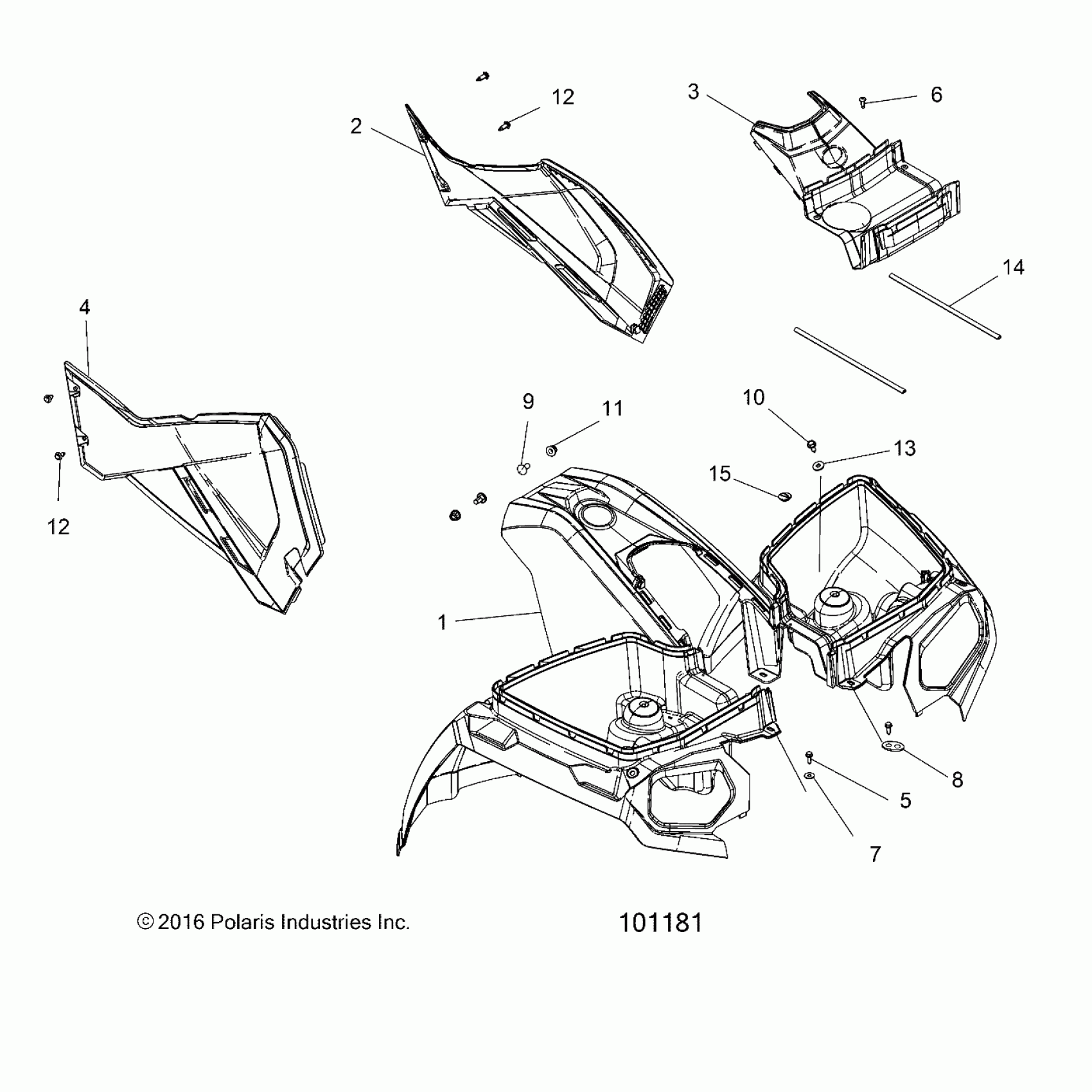

Polaris SPORTSMAN TOURING 570 EFI/EPS (R09) - A18SDA57B7/L7/E57B5/D57LU BODY, FRONT CAB and SIDE PANELS - A18SDA57B7/L7/E57B5/D57LU Diagram

PANDUIT CABLE TIE [NOT ILLUSTRATED - FOR USE WITH LU FRONT CAB]

7080356

$2.38

ASM-CAB,FR,SVC,2UP,HDPE,I.RED [B7][INCL. WARNING DECALS]

2636423-293

$774.59

ASM-CAB,FR,SVC,2UP,HDPE,I.RED [L7][INCL. WARNING DECALS]

2636575-293

$774.59

ASM-CAB,FR,SVC,2UP,VEL BLU [B5][INCL. WARNING DECALS]

2636423-689

$774.59

ASM-CAB,FR,SVC,2UP,PNT,INTL,SV [LU][INCL. WARNING DECALS]

2637105-402

$895.62

PANEL-SIDE,LH,RTD,TURBO SILVER [LU]

5454923-402

$311.10

PANEL-SIDE,LH,ROUTER,INDY RED [B7][L7]

5454893-293

$374.99

PANEL-SIDE,LH,ROUTER,VEL BLUE [B5]

5454893-689

$374.99

COVER-FRONT,INDY RED [B7][L7]

5439069-293

$101.17

COVER-FRONT,VELOCITY BLUE,HDPE [B5]

5439069-689

$133.56

COVER-FR,PNTD,TURBO SLV [LU]

5451307-402

$133.56

ASM-PANEL/SHIELD,RH,TURBO SLV [LU]

2636444-402

$259.03

ASM-PANEL/SHIELD,RH,TRG,V.BLUE [B5]

2636442-689

$259.03

ASM-PANEL/SHIELD,RH,INDY RED [B7][L7]

2636442-293

$259.03

SCREW

7512232

$1.19

SCREW

7519045

$3.17

Washer, Flat

7555859

$1.19

BRACKET, PLUG MOUNT

5258497

$5.65

BOLT, CARRIAGE

7512193

$2.38

SCREW

7515399

$1.19

NUT, FLANGED, NYLOK

7542153

$1.59

Rivet

7661855

$1.19

Rivet

7661855

$1.19

WASHER, FLAT

7555960

$3.97

SEAL, BULB

5521697-350

$40.46

PLUG-COMPARTMENT

5412981

$3.79
