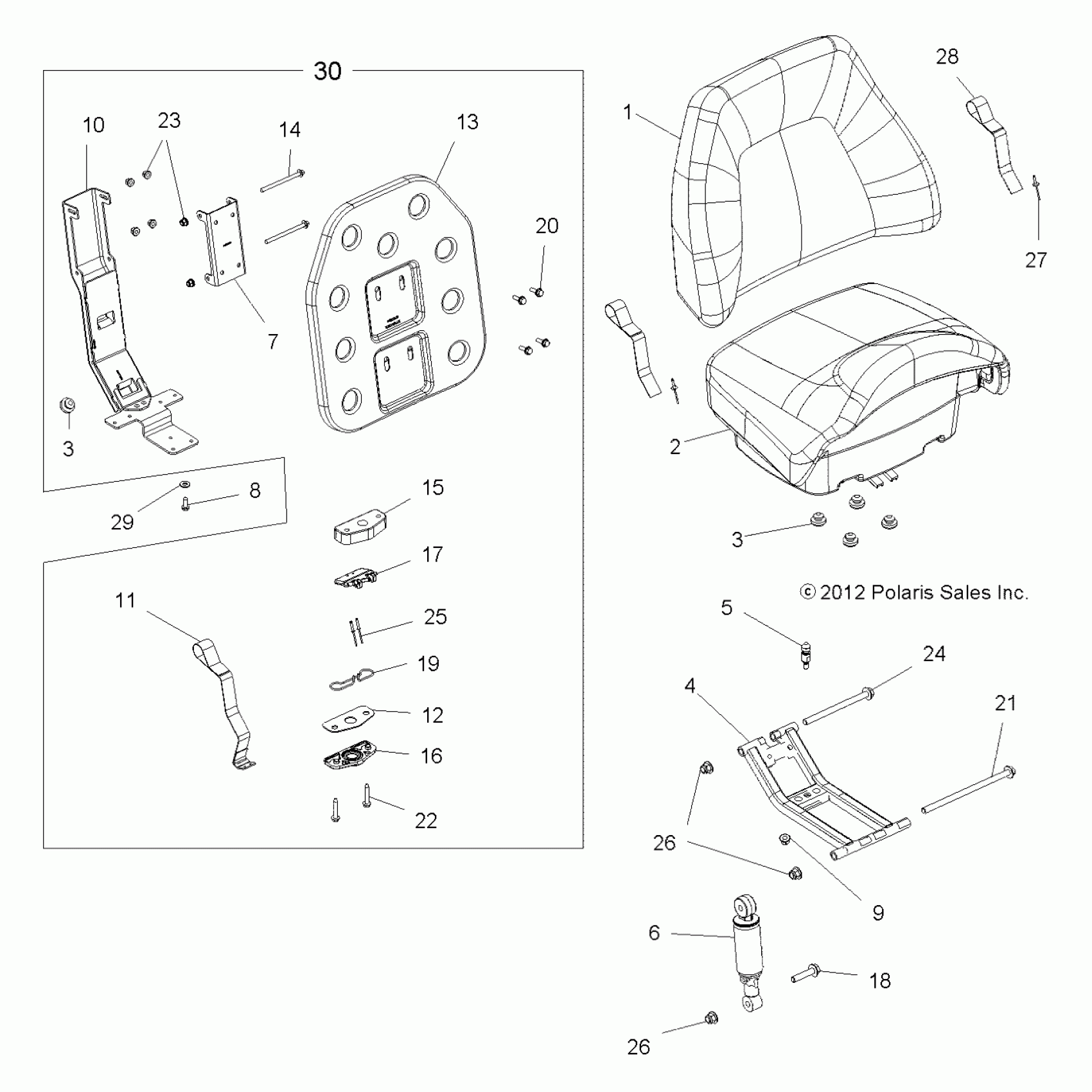

Polaris SPORTSMAN TOURING 550 EPS - A14DN5EAH/EAR BODY, SEAT, PASSENGER - A14DN5EAH/EAR (49ATVSEATBOTTOM13SPTRG550EPS) Diagram

#

Description
Price

1

ASM., COVER, SEAT, PASSENGER, BACK

2684113

$127.99

1

ASM., SEAT, PASSENGER, BACK [INCL. COVER, FOIL]

2684898

$227.99

2

ASM., SEAT, PASSENGER, BOTTOM, BLACK [INCL. COVER, 3,27,28]

2684991-070

$207.99

2

COVERING, SEAT, BLACK

2684331-070

Unavailable

3

BUMPER-RUBBER

5412067

$3.99

3

BUMPER-RUBBER

5412067

$3.99

4

PIVOT, SEAT FRAME, BLACK

1016837-329

$82.39

5

Plunger, Latch

7519251

$19.99

6

ASM., SHOCK SEAT

1542870

$62.39

7

BRACKET, SEAT BACK, PIVOT, BLACK

5253184-329

$39.99

8

Bolt

7512232

$1.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

SUPPORT, SEAT BACK, BLACK

1017011-067

$479.59

11

ASM., STRAP, SEAT LATCH

2684439

$10.39

12

PLATE, SEAT LATCH

5251162

Unavailable

13

PLATE, SEAT BACK, SUPPORT

5251351-329

Unavailable

14

SCREW

7518407

$3.19

15

PLATE-TOP, SEAT BASE LATCH

5437119

$6.46

16

CAP-LATCH,SEAT

5437120

$7.99

17

HANDLE-SEAT BASE LATCH

5437121

$4.84

18

BOLT

7518531

$4.79

19

SPRING, SEAT LATCH

7081466

$39.99

20

SCREW

7516822

$2.39

21

SCREW

7519040

$11.19

22

SCREW

7518418

$3.99

23

NUT-M6 FLANGE,NYLOC

7547274

$1.49

24

SCREW

7519041

$10.39

25

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

26

Nut, Flange

7547313

$1.49

26

Nut, Flange

7547313

$1.49

27

RIVET

7621479

$1.99

28

STRAP, PASSENGER

2684650

$19.99

29

Washer, Flat

7558301

$1.49

30

ASM., SEAT, PASSENGER, SUPPORT [INCL. 3,7,8,10-17,19,20,22,23,25]

2684323

$624.79
