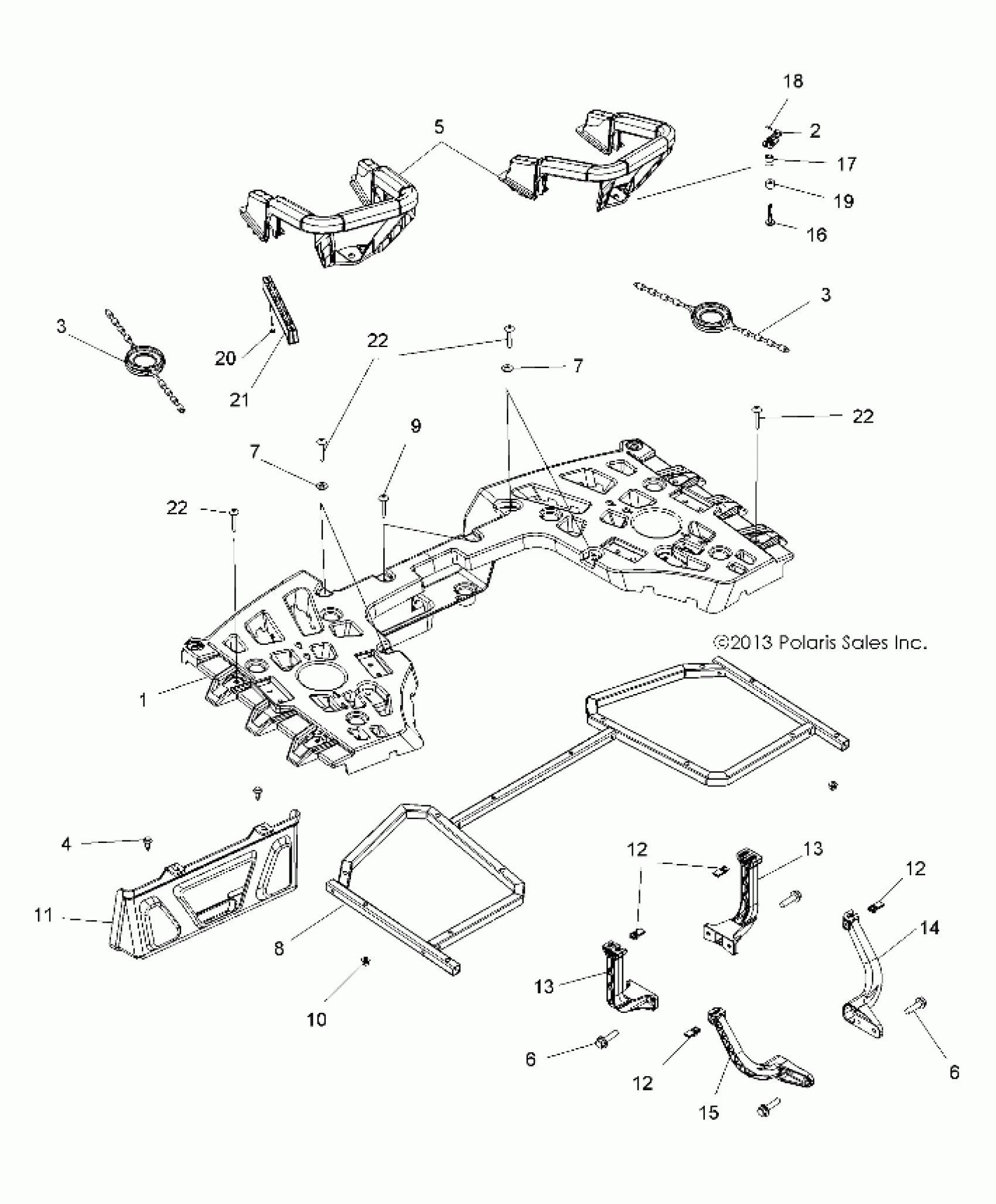

Polaris SPORTSMAN TOURING 550 EPS - A14DN5EAH/EAR BODY, REAR RACK ASM. - A14DN5EAH/EAR (49ATVRACKMTGRR14SPTRG850) Diagram

#

Description
Price

1

RACK, REAR, BLACK

5437928-070

$218.25

2

HANDLE

5438117

$5.65

3

STRAP, CUP HOLDER, RUBBER

5413600

$8.89

3

STRAP, CUP HOLDER, RUBBER

5413600

$8.89

4

Rivet

7661855

$1.19

5

ASM., HANDGRIP, PASSENGER [INCL. 2,16-21, HANDGRIP]

2634066

$93.32

6

BOLT

7518555

$2.38

6

BOLT

7518555

$2.38

7

WASHER

7558302

$1.59

7

WASHER

7558302

$1.59

8

SUPPORT, REAR RACK, BLACK

1017834-329

$284.99

9

SCREW

7519090

$3.97

10

NUT-M6 FLANGE,NYLOC

7547274

$1.19

11

COVER, RACK, REAR, BLACK

5438112-070

$27.78

12

CLIP-"U",M6.0X1.0

7547366

$5.99

12

CLIP-"U",M6.0X1.0

7547366

$5.99

12

CLIP-"U",M6.0X1.0

7547366

$5.99

13

SUPPORT, RACK, REAR

5632444

$36.41

13

SUPPORT, RACK, REAR

5632444

$36.41

14

SUPPORT, RACK, LH

5632451

$36.41

15

SUPPORT, RACK, RH

5632452

$36.41

16

SHAFT, LOCK AND RIDE ANCHOR

5138411

$5.65

17

BUSHING

5438504

$3.17

18

Pin, Dowel

7661982

$2.38

19

Bushing, Rubber

5413887

$3.17

20

SCREW

7519283

$3.17

21

CAP, HANDLE

5438706

Unavailable

22

SCREW

7519001

$3.97

22

SCREW

7519001

$3.97

22

SCREW

7519001

$3.97
