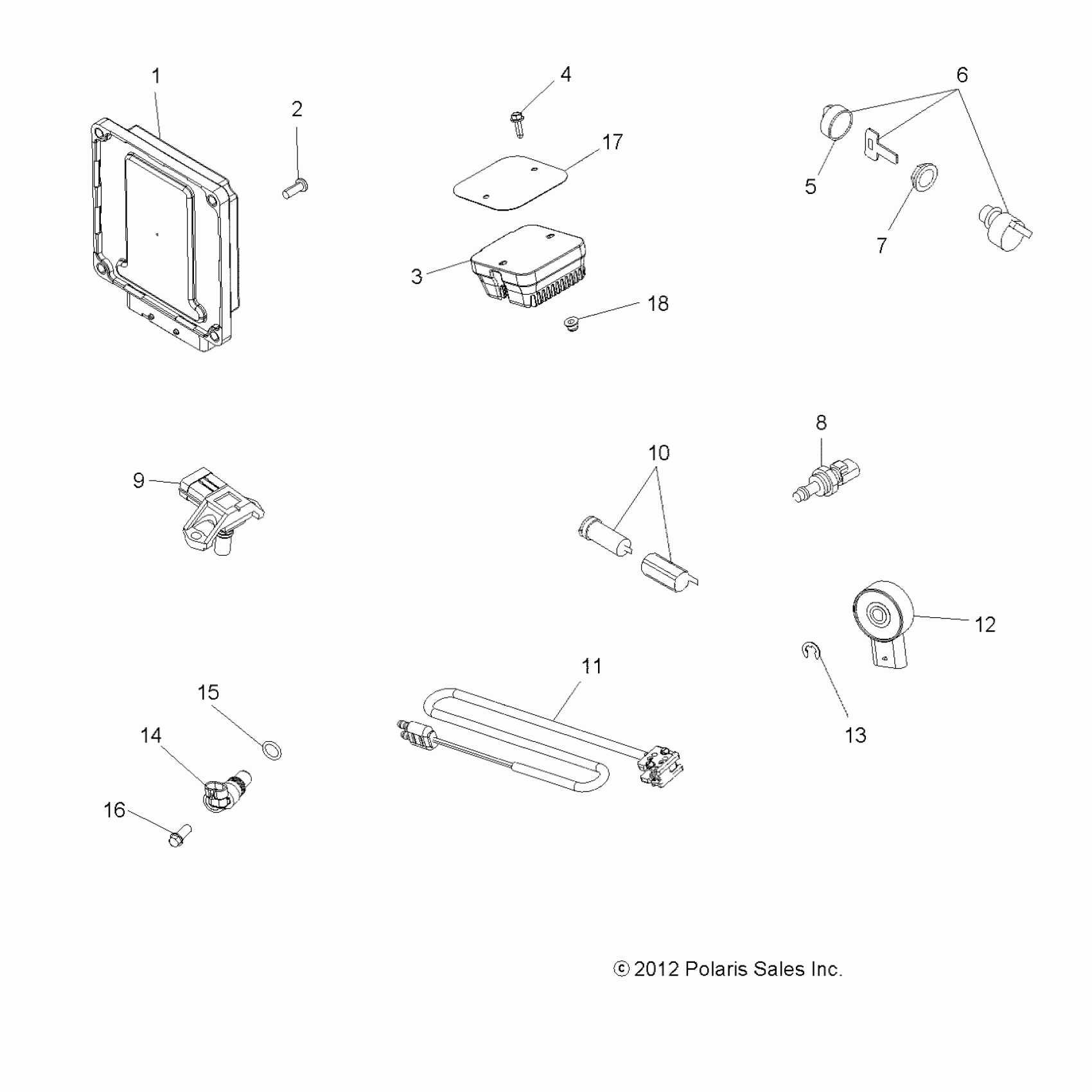

Polaris SPORTSMAN TOURING 550 EPS - A13DN5EAF/EAR ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A13DN5EAF/EAR (49ATVSWITCHES12SPTRGEPS550) Diagram

#

Description
Price

1

MODULE, ENGINE CONTROL

4012561

Unavailable

2

Screw

7512098

$1.59

3

REGULATOR, VOLTAGE

4012678

$263.99

4

SCREW

7519202

$3.99

5

KEY SWITCH KEY COVER

5433534

$12.35

6

SWITCH, KEY, 3 POSITION

4012165

$104.24

7

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

8

SENSOR, WATER TEMP

3089892

$99.99

9

SENSOR, T-MAP

3090141

$187.99

10

RECEPTACLE, POD, 12 V

4010638

$24.27

11

KIT, BRAKE LIGHT SWITCH [BRAKE LIGHTS]

2202794

$72.84

12

SWITCH [GEAR POSITION]

3233835

Unavailable

13

RING, RETAINING

3233834

$10.39

14

Clip, Routing, Hinged [For Use w/Speed Sensor]

7670116

$5.59

14

Sensor, Speed [ATV Speed]

4012167

$100.38

15

O-RING

3233840

$11.19

16

SCREW

3234329

Unavailable

17

COVER, VOLTAGE REGULATOR

5253294

$10.39

18

NUT-M6 FLANGE,NYLOC

7547274

$1.49
