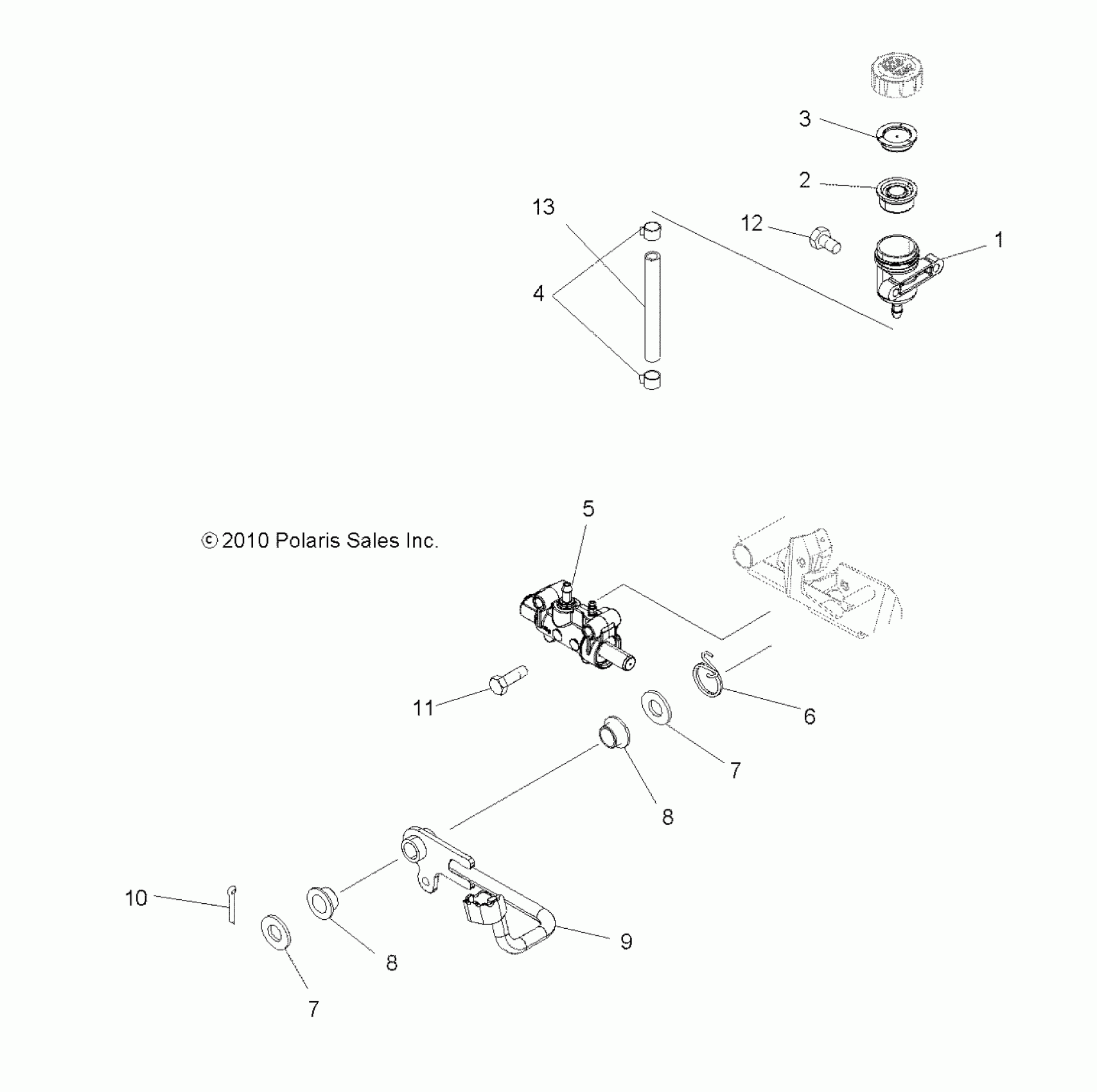

Polaris SPORTSMAN TOURING 500 HO - A13DH50AX/AZ BRAKES, PEDAL and REAR MASTER CYLINDER - A13DH50AX/AZ (49ATVBRAKERR11SP500TRG) Diagram

#

Description
Price

1

ASM., RESERVOIR, BRAKE, REAR [INCL. 2,3, CAP]

1911224

$36.41

2

DIAPHRAGM, BRAKE RESERVOIR

5413262

$4.84

3

RING, BRAKE RESERVOIR

5437041

$5.65

4

HOSE CLAMP, RED

7080003

$1.19

5

ASM., MASTER CYLINDER

1911123

$161.49

6

Spring, Torsion

7043276

Unavailable

7

WASHER

7555919

$4.99

7

WASHER

7555919

$4.99

8

BUSHING, PIVOT, PEDAL

5433189

$3.97

8

BUSHING, PIVOT, PEDAL

5433189

$3.97

9

Pedal, Brake

1910919-067

$63.49

10

PIN, COTTER

7661401

$0.79

11

SCREW

7512130

$3.97

12

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

13

Hose, Reservoir

1911267-635

$14.51
