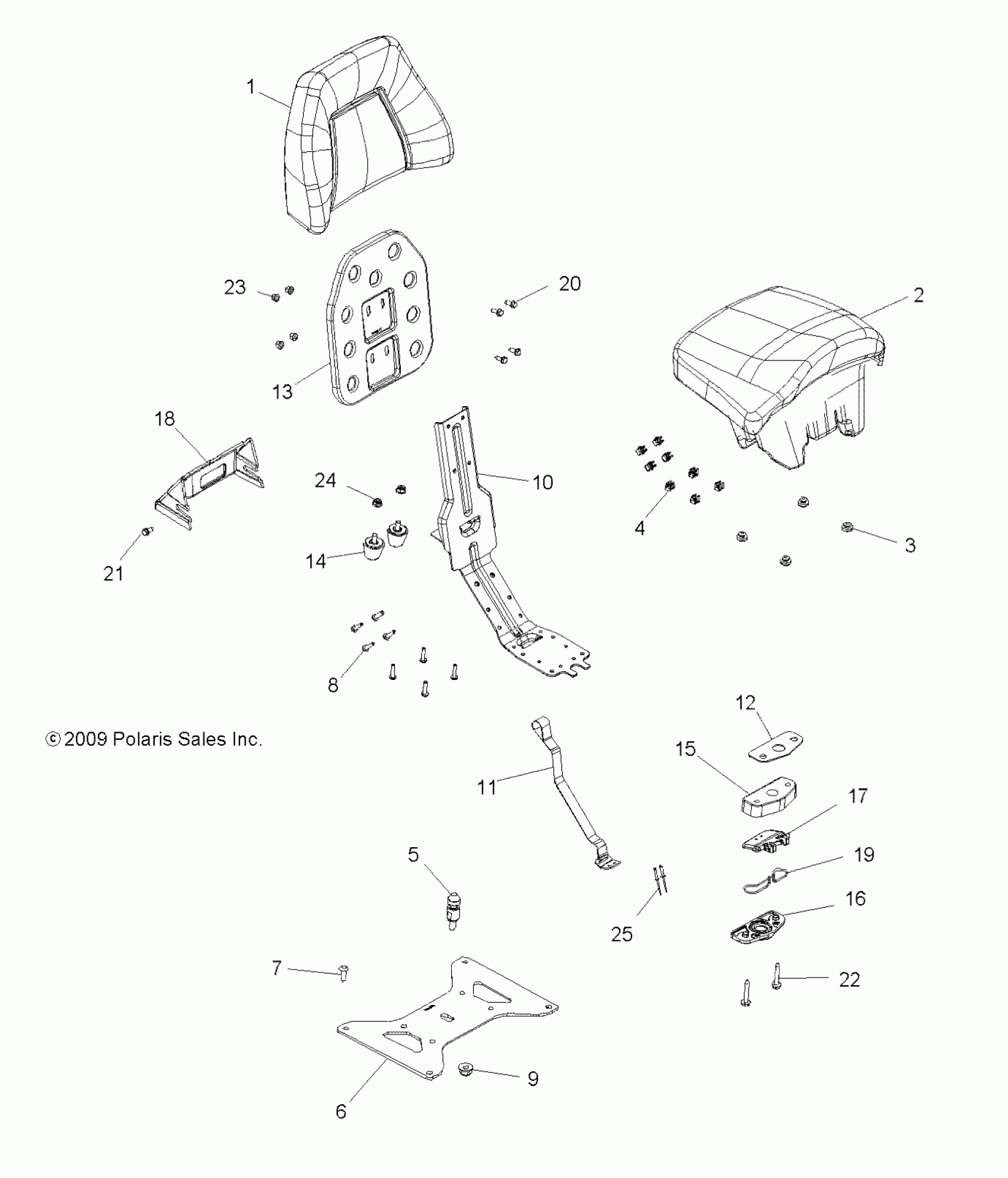

Polaris SPORTSMAN TOURING 500 HO - A13DH50AX/AZ BODY, PASSENGER SEAT BOTTOM and SEAT BACK - A13DH50AX/AZ (49ATVSEATBOTTOM10SP500TRG) Diagram

#

Description
Price

1

ASM., COVER, SEAT, PASSENGER, BACK

2684113

$127.99

1

ASM., SEAT, PASSENGER, BACK [INCL. COVER, FOIL]

2684898

$227.99

2

Covering, Seat, Black

2684112-070

$111.99

2

Asm., Seat, Passenger, Bottom, Black

2684918-070

Unavailable

3

BUMPER-RUBBER

5412067

$3.99

4

Clip

7081304

$7.19

5

Plunger, Latch

7519251

$19.99

6

Plate, Seat Plunger, Black

5251350-067

$23.99

7

Screw

7518280

$1.49

8

SCR-TXPHM6X1.0X25 8.8 RIE

7518535

$3.99

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

Support, Seat Back, Black

1016116-067

$91.99

11

Asm., Strap, Seat Latch

2685332

$23.99

12

PLATE, SEAT LATCH

5251162

Unavailable

13

PLATE, SEAT BACK, SUPPORT

5251351-329

Unavailable

14

Bumper, Rubber

5413358

$8.79

15

PLATE-TOP, SEAT BASE LATCH

5437119

$6.46

16

CAP-LATCH,SEAT

5437120

$7.99

17

HANDLE-SEAT BASE LATCH

5437121

$4.84

18

Cover, Seat Passenger Support

5437296

$9.59

19

SPRING, SEAT LATCH

7081466

$39.99

20

Screw

7512253

$3.99

21

Screw

7517417

Unavailable

22

SCREW

7518418

$3.99

23

Nut, Flange

7542153

$1.59

24

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

25

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79
