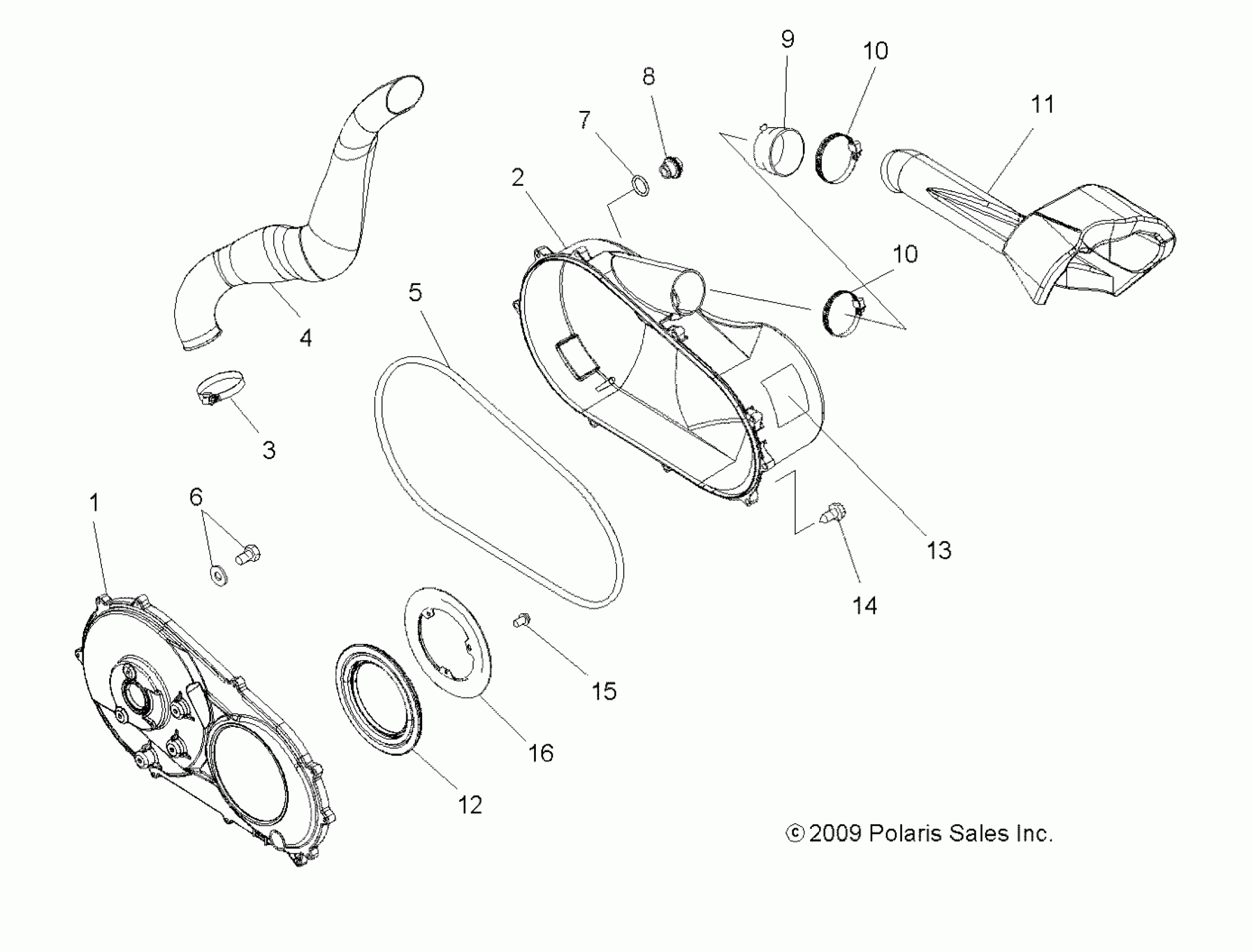

Polaris SPORTSMAN TOURING 500 HO - A13DH50AX/AZ BODY, CLUTCH COVER - A13DH50AX/AZ (49ATVCLUTCHCVR10SP500TRG) Diagram

Description

Price

Asm., Clutch Cover, Inner [Incl. 5,12]

2633158

Unavailable

Asm., Cover, Outer [Incl. 7,8]

2633926

$186.17

Clamp, Narrow Band

7080511

$4.76

Duct, Clutch Air Inlet

5438431

$28.32

Seal, Cover, Clutch

5521738

$44.51

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

O RING-.364X.504X.07

5410542

$4.84

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

BOOT, DUCT

5412636

$24.27

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

Duct, Clutch Outlet

5437043

$61.99

Seal, Cover Case

5412725

Unavailable

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

SCREW

7512094

$1.59

Asm., Screw and Washer

3084205

$3.97

BRACKET, CLUTCH, SEAL

5242046

$36.41
