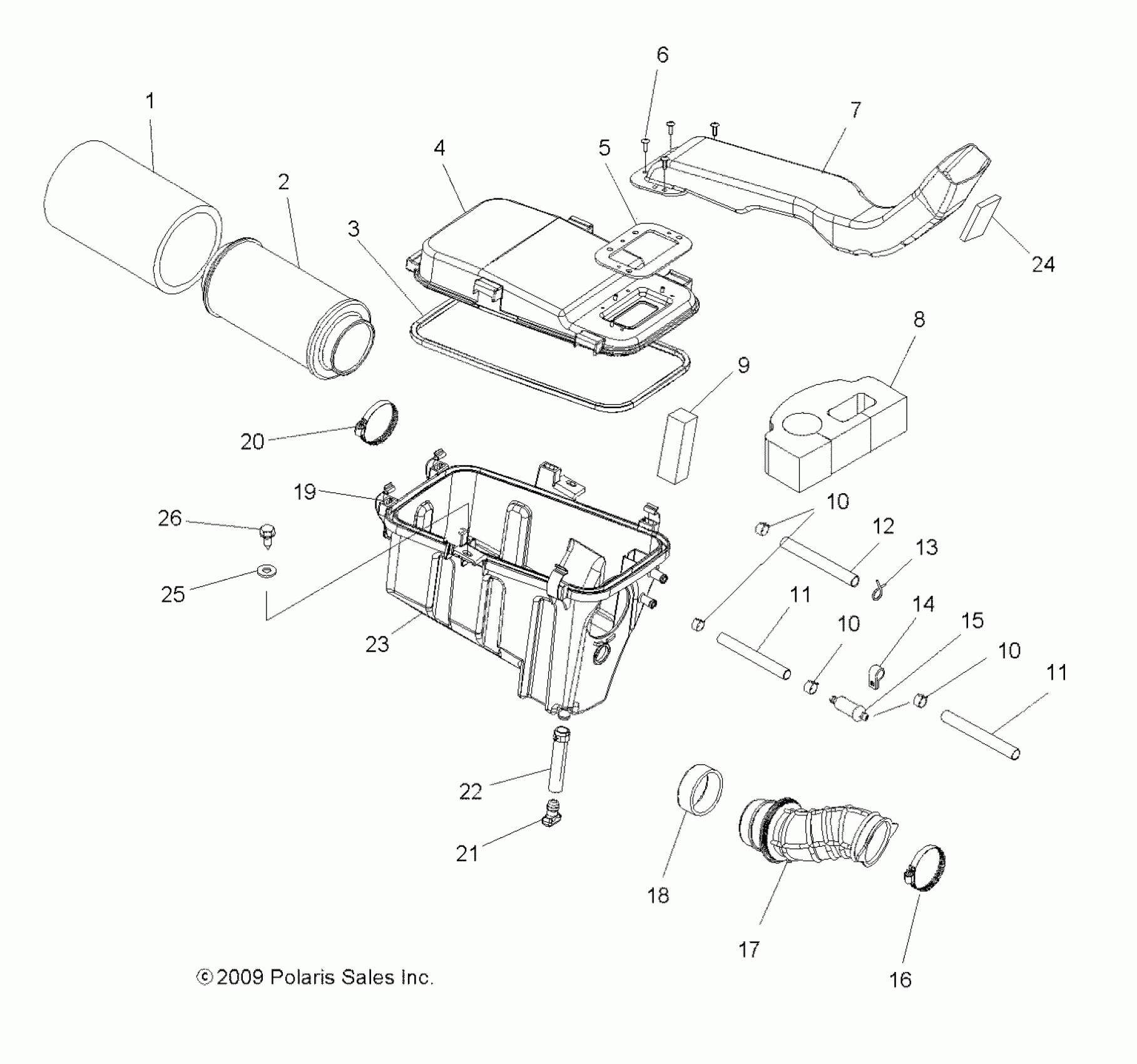

Polaris SPORTSMAN TOURING 500 HO - A12DH50AX/AZ ENGINE, AIR INTAKE SYSTEM - A12DH50AX/AZ (49ATVAIRBOX10SP500TRG) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

FILTER, AIR INTAKE

7080595

Unavailable

3

Seal, Air Box Cover

5812829

$27.02

4

Cover, Air Box

5436278

Unavailable

5

Gasket, Intake

5412748

Unavailable

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Duct, Air Inlet

5438031

$47.99

8

Seal, Foam

5811626

$31.99

9

Filter, Crankcase

5812910

$4.79

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

11

Line, Breather

8450073-600

$67.99

11

Line, Breather

8450073-600

$67.99

12

Hose, Breather

5413104

Unavailable

13

Clamp

7080694

$6.53

14

Clamp, P

7080913

$5.59

15

Filter, Breather

2530029

$6.39

16

Clamp

7080413

$3.19

17

Boot, Carb

5413718

$39.99

18

Sleeve

5433847

$13.59

19

Clip, Air Box

5249292

Unavailable

20

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

21

Plug, Trap

5435299

$6.39

22

Line, Fuel

8450059-150

Unavailable

23

Box, Air Intake

5435981

Unavailable

24

Foam, Cover

5813265

Unavailable

25

Washer, Flat

7555859

$1.49

26

Screw

7515179

$2.39
