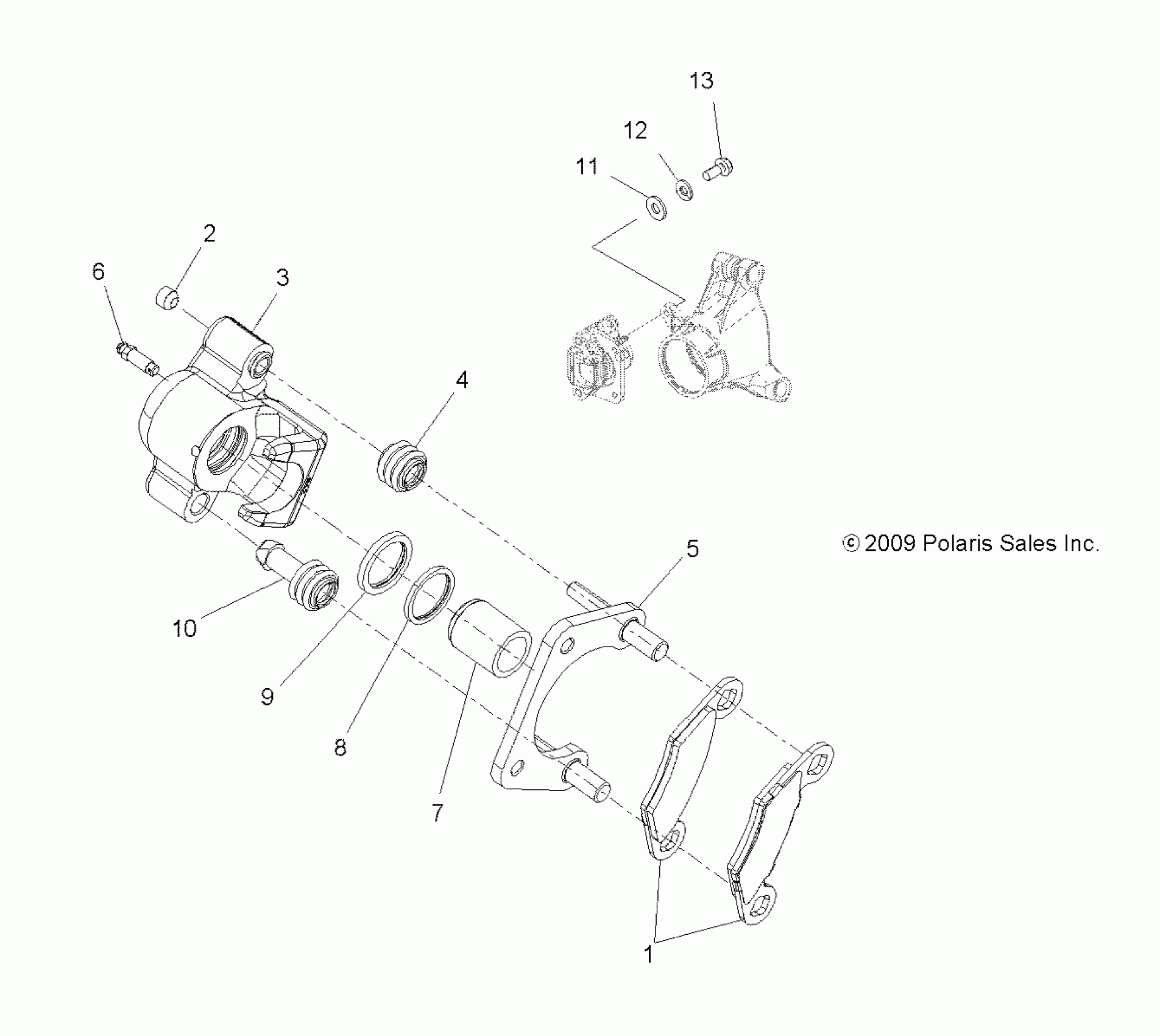

Polaris SPORTSMAN TOURING 500 HO - A12DH50AX/AZ BRAKES, REAR CALIPER - A12DH50AX/AZ (49ATVCALIPER10SP500TRG) Diagram

#

Description

Price

-

Asm., Caliper, Brake, RH, Rear [Incl. 1-10]

1911613

$329.19

1

KIT-BRAKE PAD,ASM,1.5 [INCL. 4 PADS]

2202413

$55.99

1

K-ASM,HD,PAD, BRK,1.5 (HEAVY DUTY) [OPTION][2 PADS PER KIT]

2208934

$63.99

2

SCREW, SOCKET SET

7518863

$9.59

3

CALIPER, BRAKE, RH

-------

Unavailable

4

BOOT-PIN SEAL

5412506

$3.19

5

ASM., CALIPER MOUNT

1910802

Unavailable

6

SCREW, BLEEDER

7081343

$5.59

7

PISTON, BRAKE

5132829

$39.99

8

Seal, Outer

5412011

$7.19

9

Seal, Inner

5412010

$8.40

10

BOOT-PIN BUSHING

5412505

$3.19

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

WASHER, SPRING LOCK

7552901

$1.49

13

SCREW

7512365

$1.49
