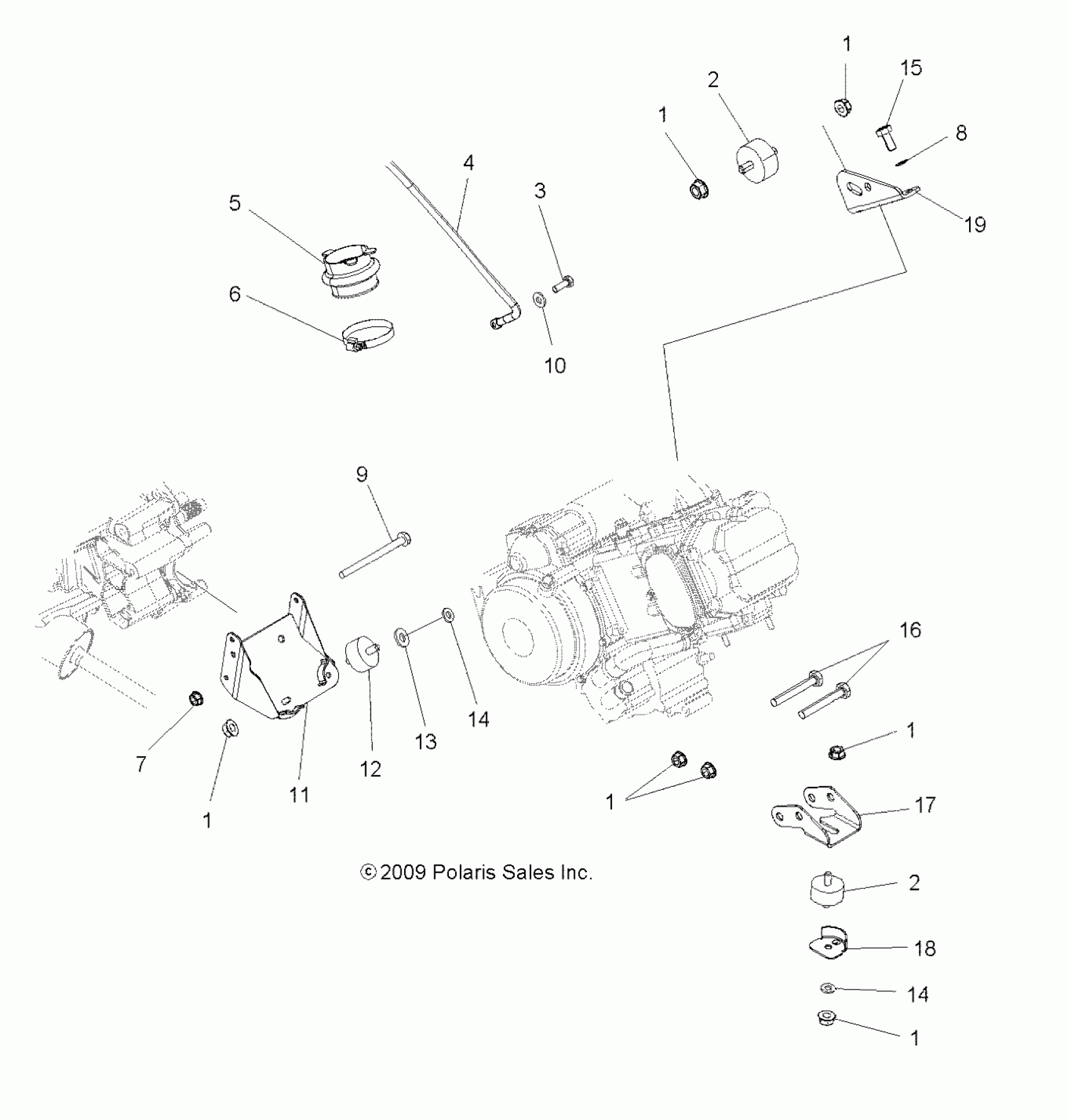

Polaris SPORTSMAN TOURING 500 HO - A10DH50AX/AZ ENGINE, MOUNTING - A10DH50AX/AZ (49ATVENGINEMTG10SP500TRG) Diagram

#

Description
Price

1

NUT, FLANGE LOCK

7547108

$4.76

1

NUT, FLANGE LOCK

7547108

$4.76

1

NUT, FLANGE LOCK

7547108

$4.76

1

NUT, FLANGE LOCK

7547108

$4.76

1

NUT, FLANGE LOCK

7547108

$4.76

1

NUT, FLANGE LOCK

7547108

$4.76

2

ISOLATOR

3022071

$44.51

2

ISOLATOR

3022071

$44.51

3

ASM., BOLT AND WASHER

3082038

$3.97

4

Cable, Ground [Frame/Engine]

4011546

$16.17

5

BOOT, CLUTCH INTAKE

5412487

Unavailable

6

Clamp, Narrow Band

7080511

$4.76

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

8

Washer, Lock

7552901

$1.19

9

SCREW

7518648

$7.14

10

Washer, Flat

7558301

$1.19

11

Mount, Engine, Rear, Black

1015648-329

$59.03

12

ISOLATOR

3022076

Unavailable

13

Washer

7555815

$3.97

14

Washer [Built 11/2/09 and Before]

7555797

$3.97

14

Washer [Built 11/2/09 and Before]

7555797

$3.97

15

Screw

7512315

$4.76

16

Screw

7518415

$5.22

17

Mount, Engine, Front

5250326

$44.99

18

BRACKET, TORQUE STOP

5245043

$17.99

19

Mount, Engine, Top

5241453

Unavailable
