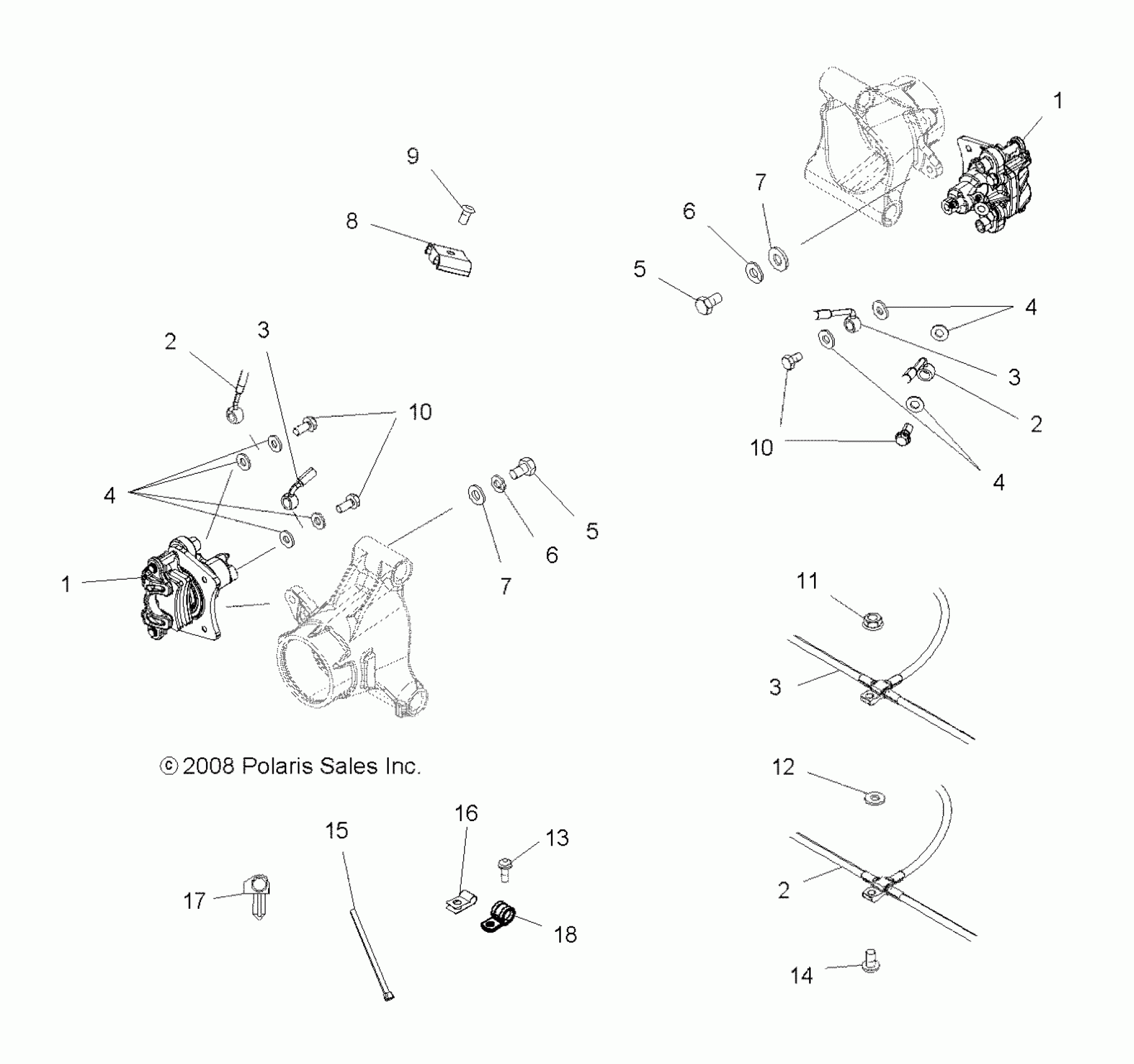

Polaris SPORTSMAN TOURING 500 EFI QUAD - A09DN50EA BRAKES, REAR BRAKE LINES - A09DN50EA (49ATVBRAKELINERR09SP500TRGQD) Diagram

#

Description
Price

1

Asm., Caliper, Rear [See Brakes, Rear Caliper page for Details]

1911179

$244.43

1

Asm., Caliper, Rear [See Brakes, Rear Caliper page for Details]

1911179

$244.43

2

Line, Brake, Rear

1911105

$109.99

2

Line, Brake, Rear

1911105

$109.99

2

Line, Brake, Rear

1911105

$109.99

3

Line, Brake, Rear, Aux.

1911344

Unavailable

3

Line, Brake, Rear, Aux.

1911344

Unavailable

3

Line, Brake, Rear, Aux.

1911344

Unavailable

4

SEAL

5413212

$4.79

4

SEAL

5413212

$4.79

4

SEAL

5413212

$4.79

5

SCREW

7512365

$1.49

5

SCREW

7512365

$1.49

6

WASHER, SPRING LOCK

7552901

$1.49

6

WASHER, SPRING LOCK

7552901

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

Clip, Retaining, Dual

7670126

$4.79

9

Screw

7517756

$1.49

10

BOLT, BANJO

1910499

$5.59

10

BOLT, BANJO

1910499

$5.59

11

Nut, Nylok

7542122

$1.49

12

Washer, Nylon

7555932

$2.39

13

Screw

7518196

$1.49

14

Screw

7512163

$3.99

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CLAMP, HOSE

7080683

$2.39

17

Clip

7670102

$2.39

18

Clamp, Rubber Coated

7080573

$7.19
