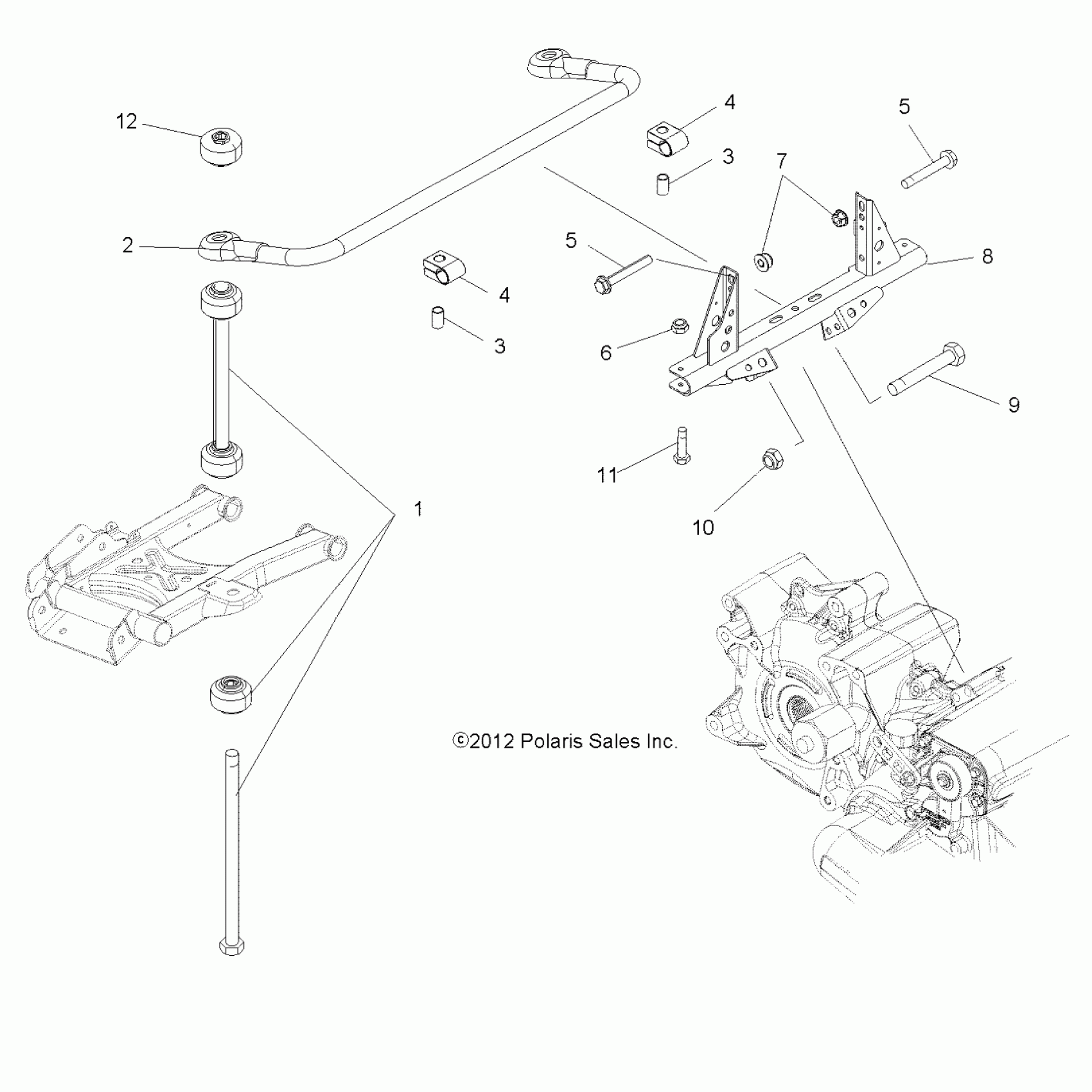

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA SUSPENSION, TORSION BAR - A08DN50EA (49ATVTORSION08SPX25) Diagram

#

Description
Price

1

Asm., Linkage

1542315

Unavailable

2

Bar, Stabilizer

1542226-067

$131.99

3

Bushing

5135206

$7.19

3

Bushing

5135206

$7.19

4

Bushing, Stabilizer

5436348

$5.59

4

Bushing, Stabilizer

5436348

$5.59

5

Screw

7518340

$7.19

5

Screw

7518340

$7.19

6

Nut, Nylok

7542122

$1.49

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

Mount, Torsion, Black

1542305-067

Unavailable

9

Screw

7517642

$7.99

10

Nut

7547180

$2.39

11

SCREW

7512130

$3.99

12

Bushing, Linkage

5436968

$7.19
