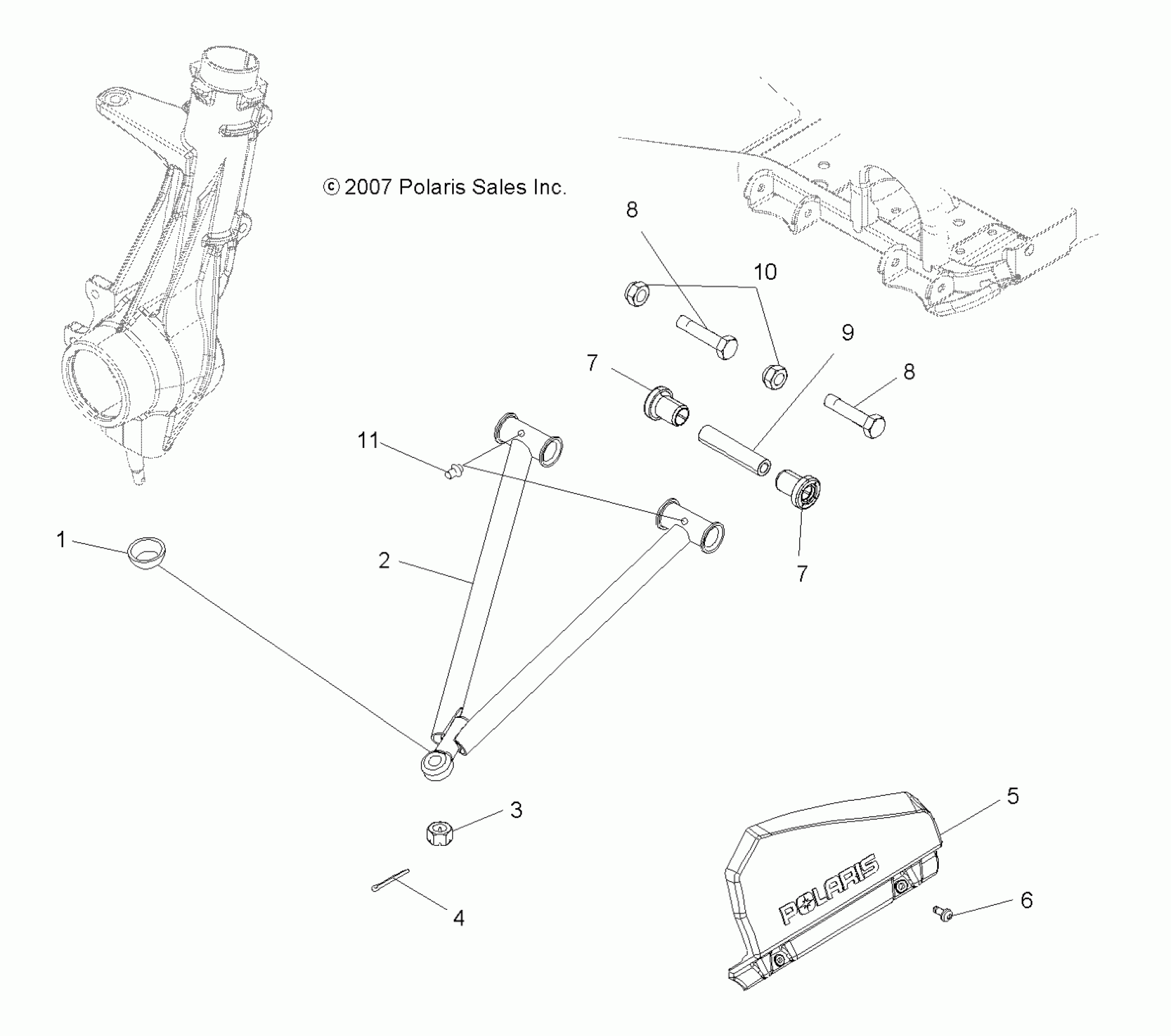

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA SUSPENSION, A-ARM and STRUT MOUNTING - A08DN50EA (49ATVAARM08SPX25) Diagram

#

Description
Price

1

Boot, Rubber, Greaseless

5412658

$4.79

2

A-Frame, LH, Black

1542397-067

Unavailable

2

A-Frame, RH, Black

1542398-067

$175.99

3

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

4

Pin, Cotter

7661203

$1.49

5

Shield, CV Joint, LH

5436999-070

$39.59

5

Shield, CV Joint, RH

5437000-070

$39.59

6

Screw

7512084

$1.49

7

Bushing

5436832

$2.38

7

Bushing

5436832

$2.38

8

Screw

7518523

$3.99

8

Screw

7518523

$3.99

9

Shaft, A-Arm

5134882

$31.99

10

NUT-3/8-24 FLG LOC

7547263

$3.19

11

Fitting, Lubrication

7080433

$1.49
