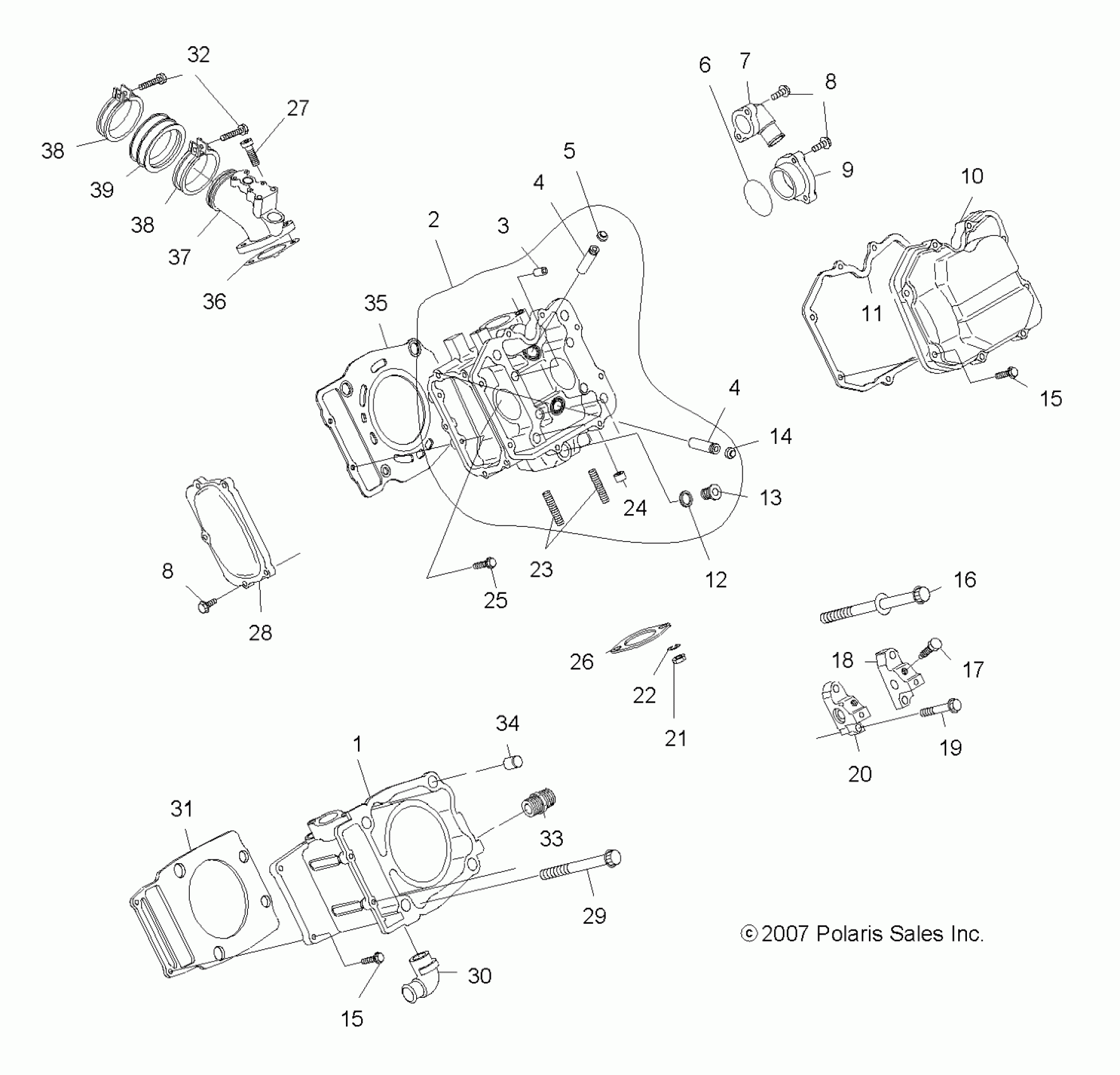

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA ENGINE, CYLINDER and HEAD - A08DN50EA (49ATVCYLINDERHD08SP500EFI) Diagram

#

Description
Price

1

Asm., Cylinder [Incl. 30]

3089256

$514.27

2

Head, Cylinder [Incl. 3-5,12-14,23,24]

3085527

$849.99

3

Pin, Straight

3084857

Unavailable

4

GUIDE, VALVE

3084994

Unavailable

4

GUIDE, VALVE

3084994

Unavailable

5

Seal, Intake Valve

3084858

$13.75

6

O-RING

3084867

$24.27

7

ADAPTER

3084870

$64.75

8

BOLT, FLANGE

3084877

Unavailable

8

BOLT, FLANGE

3084877

Unavailable

9

ADAPTER, CAMSHAFT

3084866

Unavailable

10

COVER, ROCKER

3085073

$80.94

11

GASKET, ROCKER COVER

3085074

$32.37

12

GASKET

3084861

$4.84

13

PLUG

3084860

$7.14

14

SEAL, EXHAUST VALVE

3084859

$24.27

15

Bolt, Flange

3087158

Unavailable

15

Bolt, Flange

3087158

Unavailable

16

BOLT

3084875

Unavailable

17

BOLT, ROCKER SHAFT

3085854

Unavailable

18

SUPPORT, VALVE ROCKER SHAFT

3084864

Unavailable

19

BOLT

3084876

$4.76

20

SUPPORT, VALVE ROCKER SHAFT

3084863

$93.08

21

Nut

3087199

Unavailable

22

Washer, Spring

3080051

$3.17

23

Stud

3085326

Unavailable

24

PLUG, BLIND

3084862

Unavailable

25

Bolt, Flange

3086781

$4.76

26

GASKET

3085075

$40.46

27

BOLT, SOCKET HEAD

3081330

$3.97

28

COVER, CAMSHAFT

3089242

$60.70

29

BOLT, FLANGE

3084873

Unavailable

30

Pipe, Elbow, 2

3084130

Unavailable

31

GASKET, CYLINDER

3089966

$40.46

32

ASM., SCREW AND WASHER

3081497

$2.38

33

UNION, OIL FILTER

3089956

Unavailable

34

PIPE, KNOCK

3087266

Unavailable

35

GASKET, HEAD

3085371

$66.49

36

Gasket, Intake Adaptor

3085655

$36.41

37

Pipe, Intake

3089898

Unavailable

38

Band

3084045

$24.27

38

Band

3084045

$24.27

39

Adapter

3089748

$64.75
