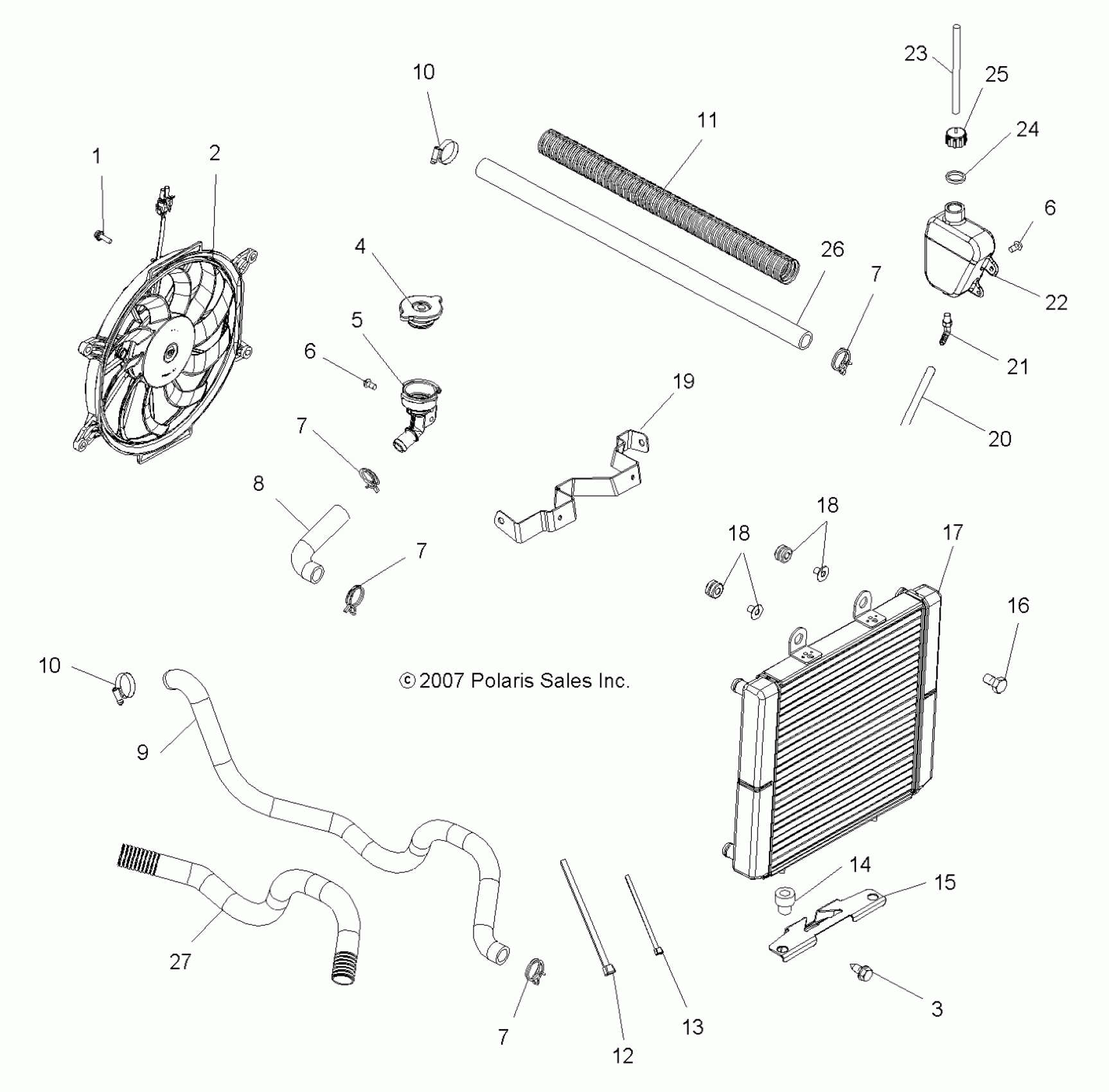

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA ENGINE, COOLING SYSTEM - A08DN50EA (49ATVCOOL08SPX25) Diagram

#

Description
Price

1

Bolt

7517975

$5.59

2

Asm., Fan and Motor

2410383

$189.59

3

SCREW

7517386

$1.49

4

Cap, Pressure

1240044

Unavailable

5

NECK, FILLER

5412402

$23.99

6

Screw

7512084

$1.49

6

Screw

7512084

$1.49

7

Clamp, Hose

7080826

$4.79

7

Clamp, Hose

7080826

$4.79

7

Clamp, Hose

7080826

$4.79

7

Clamp, Hose

7080826

$4.79

8

Hose, Filler Neck

5412405

Unavailable

9

Hose, Engine, Lower

5412860

Unavailable

10

Clamp

7080696

$5.59

10

Clamp

7080696

$5.59

11

Guard, Hose, Plastic, 18 in.

5521550

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

15

Bracket, Radiator, Lower, Black

5247047-067

$74.99

16

Screw

7515179

$2.39

17

Radiator

1240305

$409.26

18

ASM., GROMMET AND INSERT

5411975

$3.19

18

ASM., GROMMET AND INSERT

5411975

$3.19

19

Bracket, Radiator, Upper

5250769

$6.59

20

Line, Fuel

8450003-1525

$84.99

21

FITTING, 90 DEGREE

7052065

$7.19

22

TANK-SURGE

5436936

$75.99

23

LINE, FUEL

8360009-600

Unavailable

24

GASKET-OVERFLOW CAP

5810279

$2.41

25

CAP, OVERFLOW W/FITTING

5437635

$4.79

26

Hose, Engine, Upper

5412859

Unavailable

27

Guard, Hose, Plastic, 20 in.

5521748

$11.59
