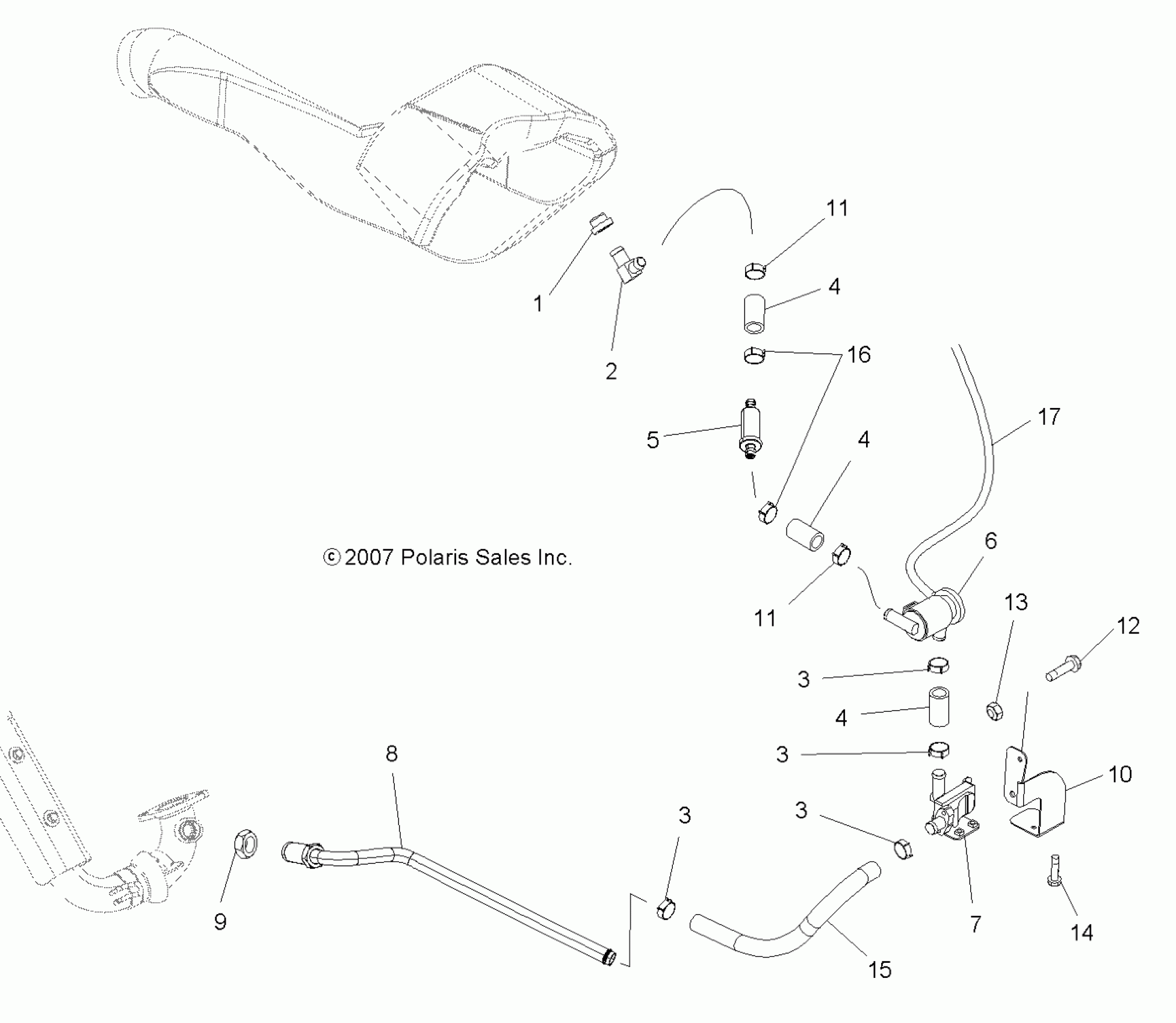

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA ENGINE, AIR INJECTION SYSTEM - A08DN50EA (49ATVAIRINJECT08X2500QUAD) Diagram

#

Description
Price

1

Grommet

5412802

$7.19

2

Fitting, Elbow

7052383

$14.23

3

Clamp

7080810

$2.39

3

Clamp

7080810

$2.39

3

Clamp

7080810

$2.39

3

Clamp

7080810

$2.39

4

Hose, Formed

5411966

$10.51

4

Hose, Formed

5411966

$10.51

4

Hose, Formed

5411966

$10.51

5

Filter, Breather

2530029

$6.39

6

Filter, Air Valve

2520457

$7.84

7

Asm., Air Valve

1261439

$43.22

8

Asm., Tube, Air Injection

1261901

Unavailable

9

Nut, Jam

7547375

$2.63

10

Bracket, Air Valve, Black

5250528-067

$25.59

11

Clamp, Hose, Spring

7080694

$6.53

11

Clamp, Hose, Spring

7080694

$6.53

12

Screw

7511930

$2.39

13

Nut, Nylok

7541925

$1.49

14

SCREW

7518045

$10.39

15

Hose

5413448

$6.63

16

Clamp, Hose, Spring

7080699

$1.59

17

Line, Fuel

8450037-82

Unavailable
