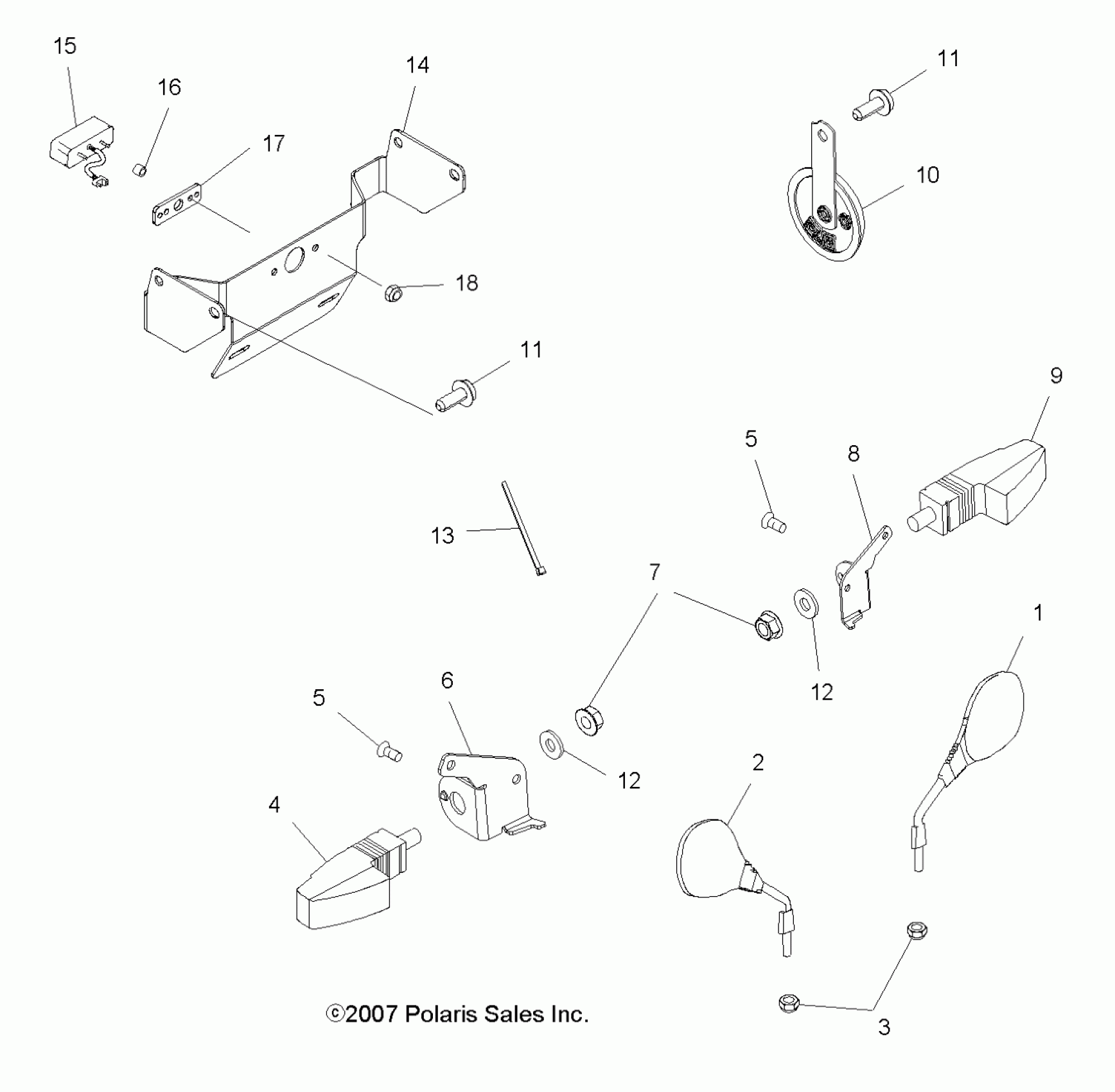

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA ELECTRICAL, TURN SIGNALS, HORN and MIRRORS - A08DN50EA (49ATVTURNSIG08SPTRG500QD) Diagram

#

Description
Price

1

ASM-MIRROR,HNDLBR,LH

2633314

$47.99

2

ASM-MIRROR,HNDLBR,RH

2633315

$47.99

3

Nut, Hex

7546804

$1.49

4

Signal, Turn, Front, RH

2410722

Unavailable

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

6

Bracket, Turn Signal Mount, RH

5250013-067

$30.55

7

Nut

7547345

$6.39

8

Bracket, Turn Signal Mount, LH

5250012-067

$29.75

9

Signal, Turn, Front LH

2410721

$47.99

10

HORN

4011579

Unavailable

11

SCREW

7515399

$1.49

11

SCREW

7515399

$1.49

12

Washer, Inter Lock

7556377

$3.19

12

Washer, Inter Lock

7556377

$3.19

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

Bracket, Reg, Plate, Black

5251799-067

$37.91

15

Light, License, Plate, Black

2410629

$43.99

16

Spacer

5134403

$3.19

17

Spacer, Light

5812520

$21.99

18

NUT-M5X.8,HX NYL-Y

7546601

$1.49
