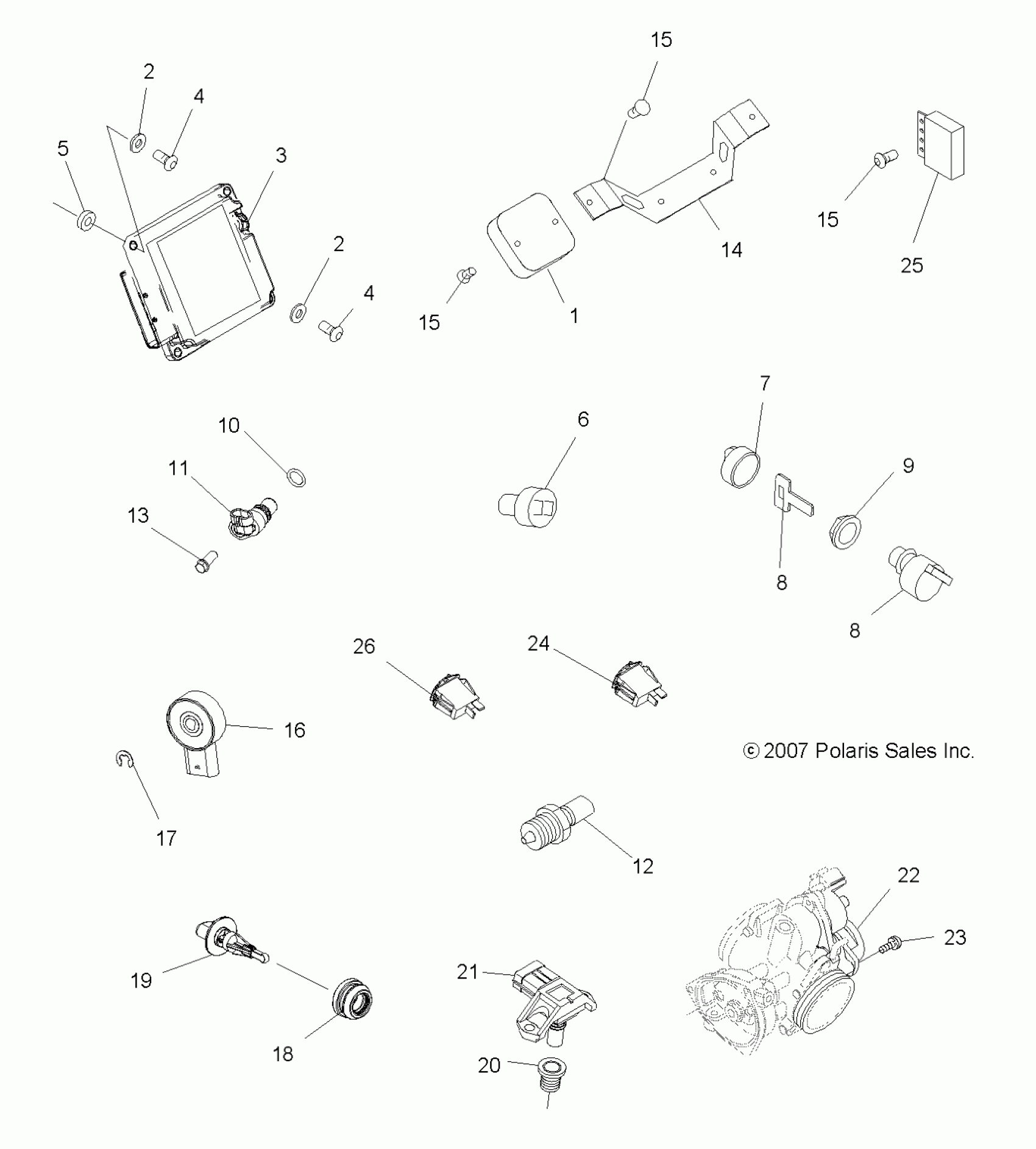

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA ELECTRICAL, SWITCHES and SENSORS and ECM - A08DN50EA (49ATVELECT08X2500QUAD) Diagram

#

Description
Price

1

Regulator

4012384

$271.99

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

ECM, Service

4012443

Unavailable

4

Screw

7518552

$3.99

4

Screw

7518552

$3.99

5

Washer, Nylon

7555932

$2.39

6

Switch, Pressure, Brake [Brake Lights]

4011478

Unavailable

7

KEY SWITCH KEY COVER

5433534

$12.35

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

8

Switch, Key, 4 Position [Incl. Key]

4011142

Unavailable

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

8

Switch, Key, 4 Position [Incl. Key]

4011142

Unavailable

9

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

10

O-RING

3234302

$7.19

11

SENSOR-SPEED,TRANS

4013908

Unavailable

12

Sensor, Water Temperature

3089892

$99.99

13

SCREW

3234247

$5.59

14

Bracket, Voltage Regulator

5248725

$10.51

15

SCREW

7512024

$4.79

15

SCREW

7512024

$4.79

15

SCREW

7512024

$4.79

16

SWITCH, ROTARY

3233835

Unavailable

17

RING, RETAINING

3233834

$10.39

18

Grommet, Air Temp Sensor

5436346

$4.79

19

Sensor, Air Temp

2410687

$143.99

20

Grommet

3089902

Unavailable

21

Sensor, Air Pressure

3089895

Unavailable

22

SENSOR, THROTTLE POSITION

3140173

Unavailable

23

SCREW

3131628

$5.27

24

Switch, Turf, On/Off

4011966

Unavailable

25

Module, Flash/Turn

4011553

$205.99

26

Switch, Hazard

4011761

$68.79
