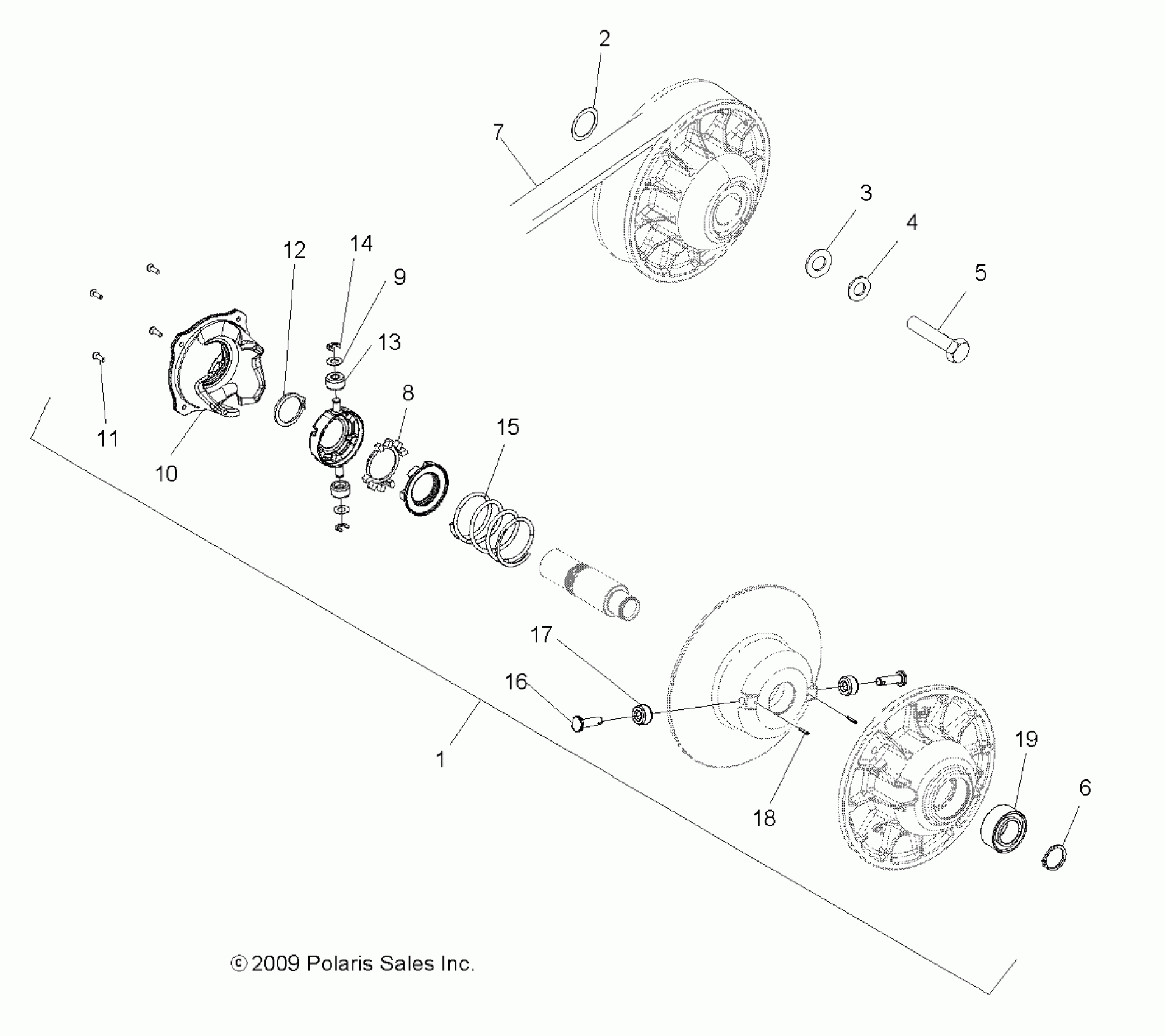

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA DRIVE TRAIN, SECONDARY CLUTCH - A08DN50EA (49ATVCLUTCHDRIVEN08SPX25) Diagram

#

Description
Price

1

ASM., DRIVEN CLUTCH, EBS, DAMPED [INCL. 6,8-19]

1322706

$479.69

2

BUSHING

7556120

Unavailable

3

WASHER, DOMED

5250562

$2.39

4

WASHER, SPRING LOCK

7552901

$1.49

5

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

6

RING, RETAINING

3234205

$11.19

7

BELT, DRIVE

3211113

$79.99

7

BELT-HD,DRIVE,14.35,CD,N [HD OPTION]

3212332

$139.99

8

RETAINER, SPRING, INNER

7710564

Unavailable

9

WASHER, THRUST

7556226

$5.65

10

Asm., Cam

3234356

$371.99

11

Screw, Cap

3234192

$4.79

12

RING, RETAINING

7710522

$13.59

13

ROLLER, CLUTCH

3234207

$47.99

14

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

15

SPRING, COMPRESSION, RED

3234451

$67.99

16

PIN, ROLLER

3234201

$15.99

17

ROLLER, CLUTCH

3234197

$47.99

18

PIN,SPRING SLOTTED .125X.625

3234202

$3.99

19

BEARING, BALL

3234203

$23.99
