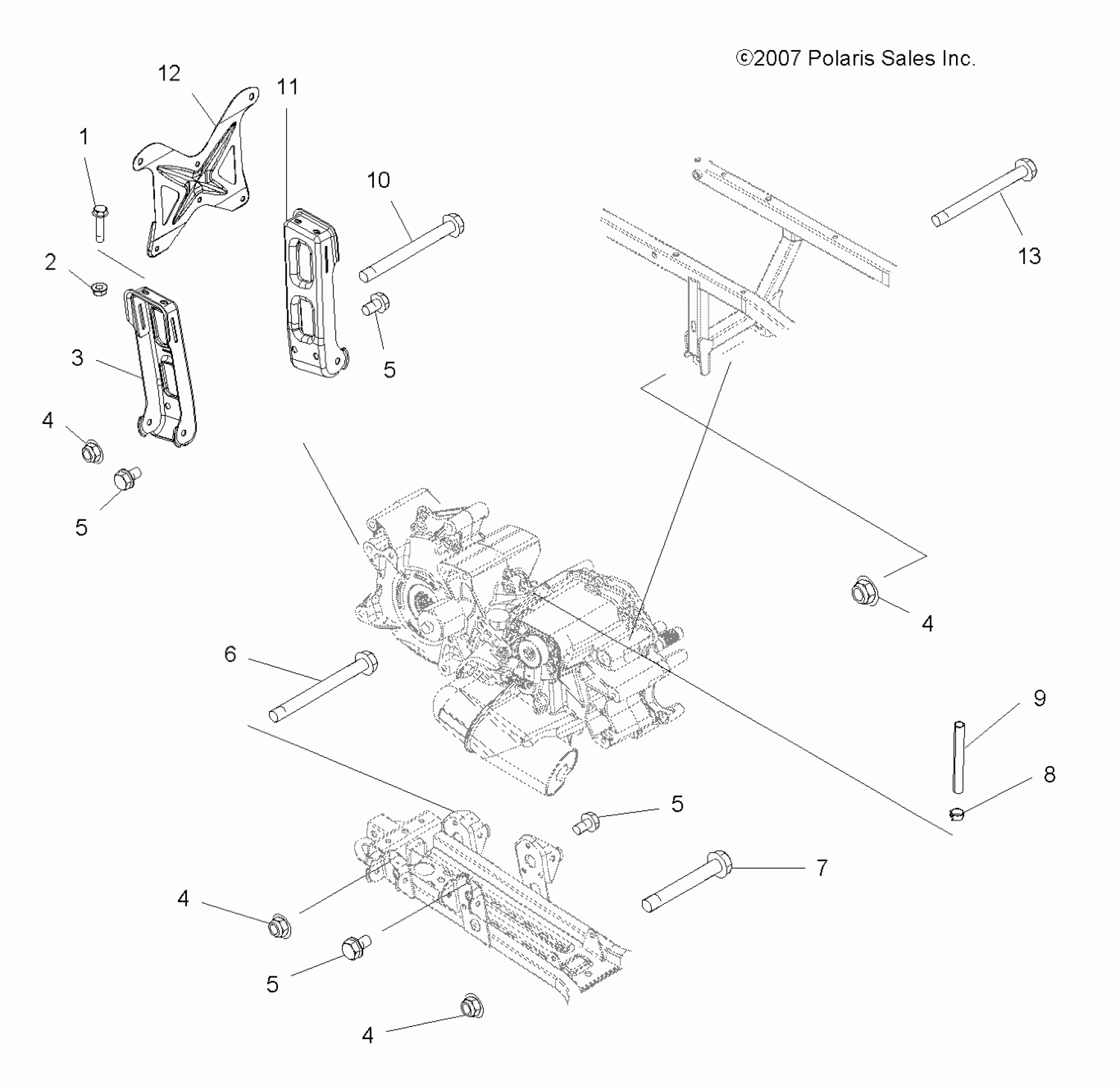

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA DRIVE TRAIN, MAIN GEARCASE MOUNTING - A08DN50EA (49ATVGEARCASEMTG08SPTRG500) Diagram

#

Description
Price

1

Screw, Flange

7518876

$3.99

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

Support, RR, RH

5250542-067

Unavailable

4

Nut, Flange

7547180

$2.39

4

Nut, Flange

7547180

$2.39

4

Nut, Flange

7547180

$2.39

4

Nut, Flange

7547180

$2.39

5

SCREW

7517632

$5.59

5

SCREW

7517632

$5.59

5

SCREW

7517632

$5.59

5

SCREW

7517632

$5.59

6

SCREW

7518365

$7.91

7

Screw

7518279

$8.79

8

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

LINE

8450003-1525

Unavailable

10

SCREW

7518365

$7.91

11

Support, RR, LH

5250541-067

$28.95

12

Bracket, Support, RR

5250178-067

$35.99

13

Screw

7517642

$7.99
