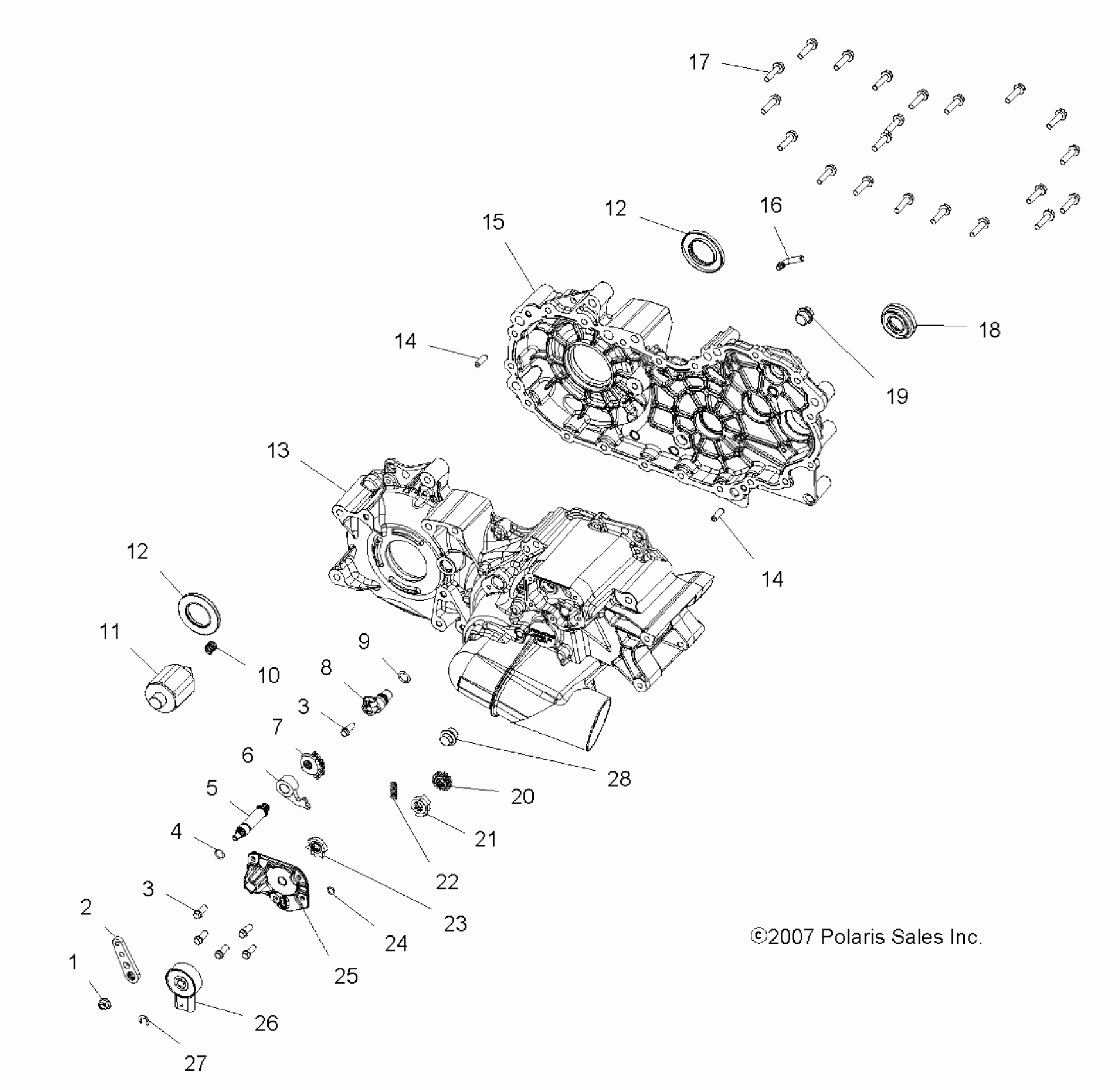

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA DRIVE TRAIN, MAIN GEARCASE - A08DN50EA (49ATVGEARCASE08SPX25) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1332624

$2,019.99

1

NUT, LOCK

3233961

$3.32

2

Bellcrank

3234585

Unavailable

3

SCREW

3234247

$5.56

3

SCREW

3234247

$5.56

4

O-RING

3233869

$5.65

5

SHAFT, SHIFT

3233831

$60.70

6

Pawl, Detent

3233829

$36.41

7

GEAR-SECTOR,31T

3233832

$36.41

8

SENSOR-SPEED,TRANS

4013908

$109.27

9

O-RING

3234302

$7.27

10

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

11

SOLENOID

3235478

$295.46

12

SEAL, TRIPLE LIP

3234300

$32.37

12

SEAL, TRIPLE LIP

3234300

$32.37

13

Gearcase, RH

3234259

Unavailable

14

PIN, DOWEL

3234244

$7.27

14

PIN, DOWEL

3234244

$7.27

15

Gearcase, LH

3234260

$539.99

16

TUBE, VENT

3234230

$10.51

17

SCREW

3234114

$7.14

18

SEAL

3234851

$42.74

19

PLUG

3233794

$15.37

20

GEAR, 16T

3233839

$36.41

21

SPACER

3235243

$9.52

22

SPRING, COMPRESSION

3234578

$13.75

23

Star, Detent

3233909

$28.32

24

O-RING

3233076

$6.46

25

Cover, Gear

3234188

$113.32

26

SWITCH

3233835

$142.49

27

RING, RETAINING

3233834

$10.32

28

PLUG, MAGNETIC

3234529

$15.37
