- SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
DRIVE TRAIN, FRONT GEARCASE and MOUNTING - A08DN50EA (49ATVGEARCASE1332568)

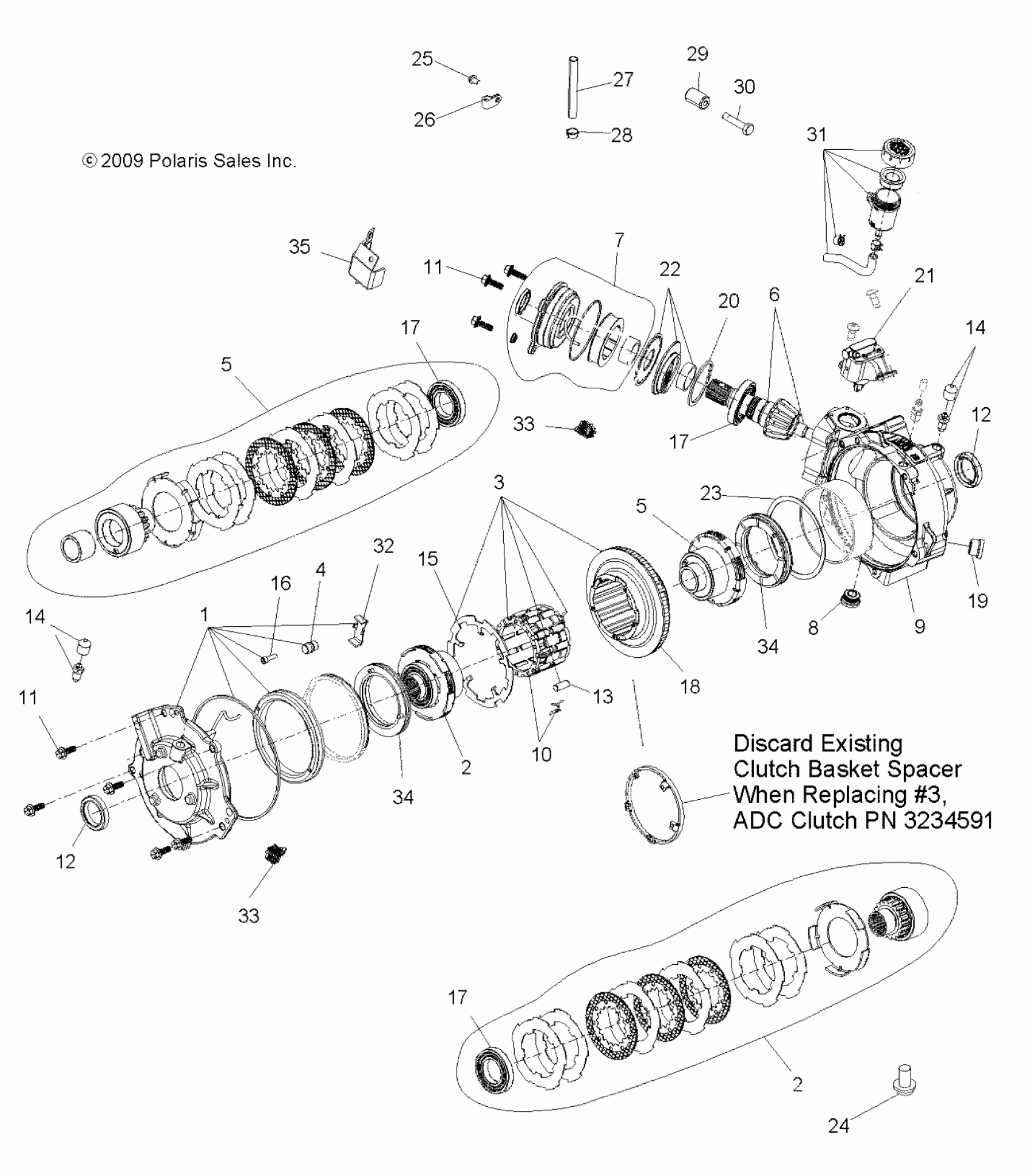

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA DRIVE TRAIN, FRONT GEARCASE and MOUNTING - A08DN50EA (49ATVGEARCASE1332568) Diagram
#
-
Asm., Gearcase, ADC [Incl. 1-23,31]
1332568
Unavailable
1
Asm., Cover, Output, ADC [Incl. Cover, Coil, Thrust Plate, Seals, Vent]
3234588
Unavailable
2
Asm., Hub, Output, Female, ADC [Incl. Bearing, Plates, Hub]
3234590
Unavailable
2
Asm., Hub, Output, Female, ADC [Incl. Bearing, Plates, Hub]
3234590
Unavailable
3
Asm., Clutch, ADC [Incl. Cage, Rolls, Armature Plate, Ring Gear, Clips][NOTE: Discard Existing Clutch Basket Spacer When Replacing #3, ADC Clutch PN 3234591]
3234591
$1,034.99
4
ASM., THRUST BUTTON [INCL. SEAL]
3234594
Unavailable
5
Asm., Hub, Output, Male, ADC [Incl. Bearing, Plates, Hub]
3234600
$549.99
5
Asm., Hub, Output, Male, ADC [Incl. Bearing, Plates, Hub]
3234600
$549.99
6
Asm., Pinion Gear, ADC [Incl. Gear, Bushing]
3234599
$535.22
7
ASM., COVER, INPUT [INCL. SEALS, BEARING, COIL, GROMMET]
3234748
$187.99
8
ASM., DRAIN PLUG, MAGNETIC [INCL. MAGNET
3234412
$39.99
9
Asm., Gearcase, ADC [Incl. Seals, Fill Plug, Vents, Bushing]
3234597
$824.99
10
Asm., Roll Cage [Incl. Roll Cage, Clips]
3234466
$209.99
10
Asm., Roll Cage, Aluminum, NT [Opt]
3235263
$570.70
11
Kit, Bolt, ADC [Incl. Hardware]
3234592
$23.99
11
Kit, Bolt, ADC [Incl. Hardware]
3234592
$23.99
12
KIT, REPAIR, SEAL [INCL. SEALS, O-RINGS, SQUARE RING]
3234593
$75.99
12
KIT, REPAIR, SEAL [INCL. SEALS, O-RINGS, SQUARE RING]
3234593
$75.99
13
KIT-ROLLER [INCL. COMPLETE ROLL SET]
3234393
$111.84
14
Asm., Breather Tube
3234431
$31.99
14
Asm., Breather Tube
3234431
$31.99
15
PLATE, ARMATURE
3234407
$107.99
16
SET, SCREW
3234408
$27.99
17
Bearing
3234390
$35.99
17
Bearing
3234390
$35.99
17
Bearing
3234390
$35.99
18
Clutch, Housing, ADC
3234596
Unavailable
19
PLUG, OIL FILL
3234414
Unavailable
20
Ring, Retaining, Internal
3234416
$10.39
21
PUMP
3234429
Unavailable
22
KIT, CAM & ARMATURE
3234434
$135.99
23
SPACER-RING GEAR
3234437
$19.99
24
SCREW [GEARCASE MOUNTING]
7517632
$5.59
25
SCREW
7512024
$4.79
26
CLAMP, HOSE
7080693
$5.59
27
Line, Fuel
8450003-1525
Unavailable
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
Spacer
5437162
$1.59
30
Screw
7518306
$3.99
31
Reservoir, Remote, ADC
3234433
Unavailable
32
Plate, Thrust
3234595
Unavailable
33
Clip
3234601
$4.79
33
Clip
3234601
$4.79
34
Piston
3234589
$63.99
34
Piston
3234589
$63.99
35
Bracket, Cover, ADC
3234603
$7.73
