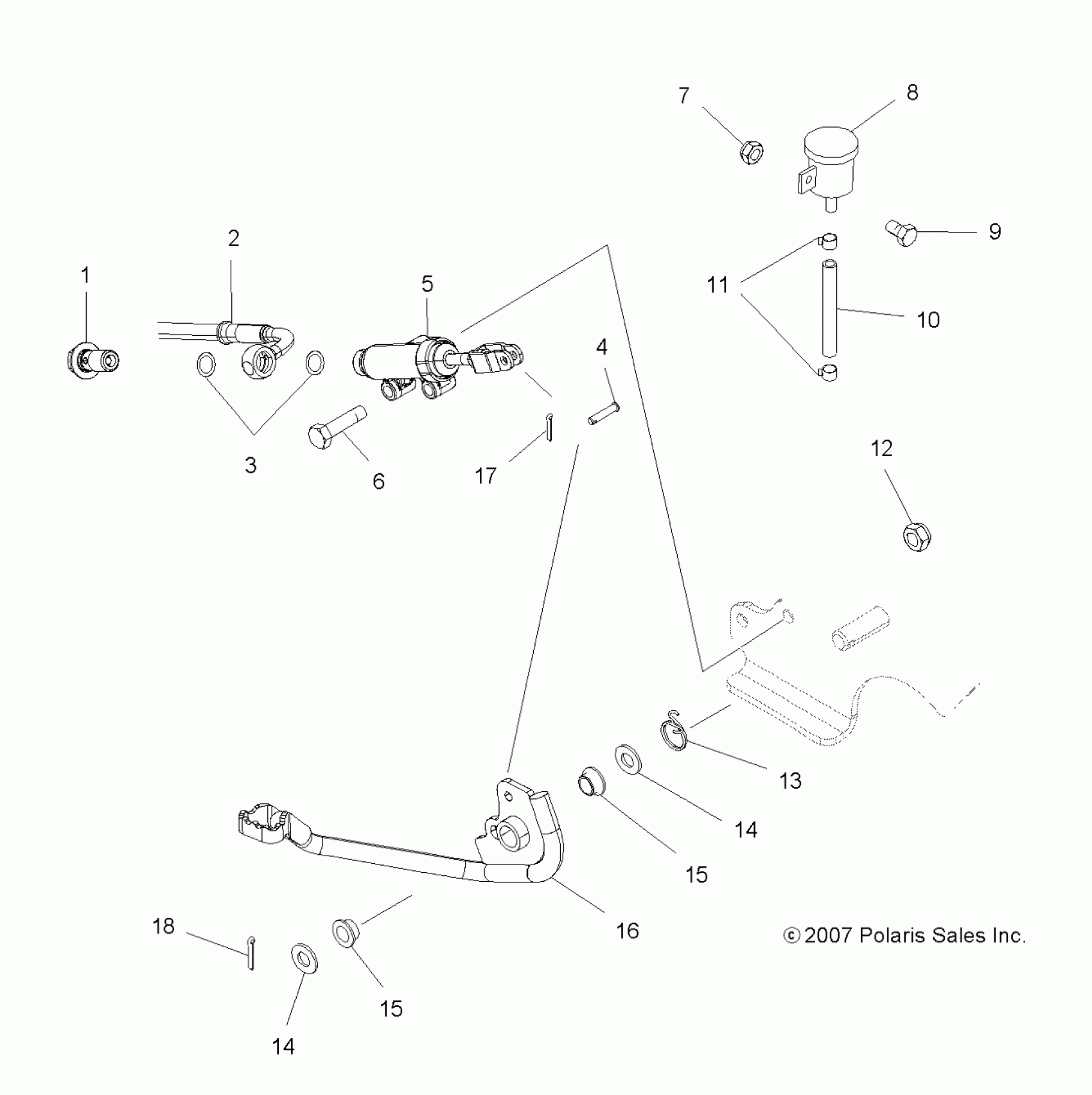

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA BRAKES, FOOT PEDAL and MASTER CYLINDER - A08DN50EA (49ATVBRAKEFOOT08SPTRG500QD) Diagram

#

Description
Price

1

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

2

Line, Brake, Foot to J/B

1911104

$47.99

3

SEAL

5413212

$4.79

4

PIN, CLEVIS

7661830

$3.99

5

Asm., Master Cylinder, Foot

1910995

$174.03

6

Screw

7515306

Unavailable

7

Nut, Nylok

7542122

$1.49

8

Asm., Reservoir, Brake, Rear

1910674

$35.99

9

Screw

7512240

$3.99

10

Hose, Reservoir

1911107

$5.75

11

HOSE CLAMP, RED

7080003

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Spring, Torsion

7043126

$1.83

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

Bushing, Pedal, Pivot

5433189

$3.99

15

Bushing, Pedal, Pivot

5433189

$3.99

16

Pedal, Brake, Black

1015631-067

$51.99

17

PIN, COTTER

7661900

$3.19

18

PIN, COTTER

7661401

$1.49
