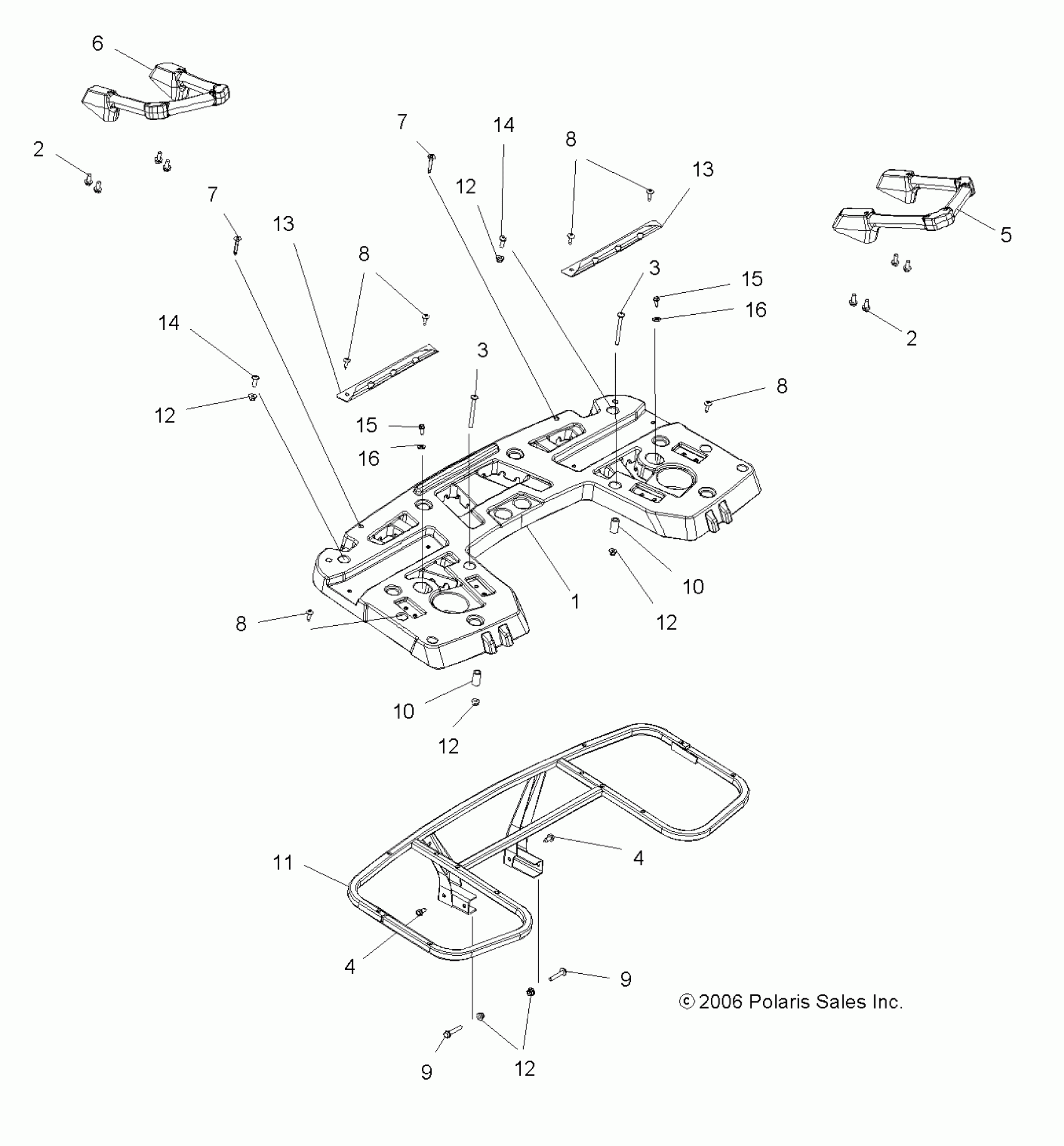

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA BODY, REAR RACK ASM. - A08DN50EA (49ATVRACKMTG08SPTRG500) Diagram

#

Description
Price

1

Asm., Rack, Rear, Black [Incl. Warning Decal]

2633626-070

$180.16

2

SCREW

7518181

$5.56

2

SCREW

7518181

$5.56

3

Screw

7517983

$9.52

3

Screw

7517983

$9.52

4

SCREW

7518235

$1.59

4

SCREW

7518235

$1.59

5

Asm., Handgrip, Passenger, LH

2633642

$101.65

6

Asm., Handgrip, Passenger, RH

2633643

$101.65

7

SCREW

7518504

$1.59

7

SCREW

7518504

$1.59

8

SCREW

7517685

$1.59

8

SCREW

7517685

$1.59

8

SCREW

7517685

$1.59

8

SCREW

7517685

$1.59

9

BOLT, FLANGE

7518341

$4.76

9

BOLT, FLANGE

7518341

$4.76

10

Spacer, Cab, Rear

5435959

$2.38

10

Spacer, Cab, Rear

5435959

$2.38

11

Support, Rear Rack, Black

1016114-067

Unavailable

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.81

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.81

14

SCREW

7518235

$1.59

14

SCREW

7518235

$1.59

15

Screw

7512095

$4.76

15

Screw

7512095

$4.76

16

Washer, Nylon

7555798

$0.79

16

Washer, Nylon

7555798

$0.79
